13.1.3 Country settings
Country-specific settings are defined in the 'Country settings' element.
13.1.4 Master clock
The 'Global system time' element shows which ↑ 'Station' is the master clock.
When the first 'Station' is created, Cerberus-Engineering-Tool assigns this element
to the first 'Station' (address 1) automatically. The ↑ assignment to the 'Station'
may therefore be deleted or need to be changed. If this is the case, then the
assignment must be created again.

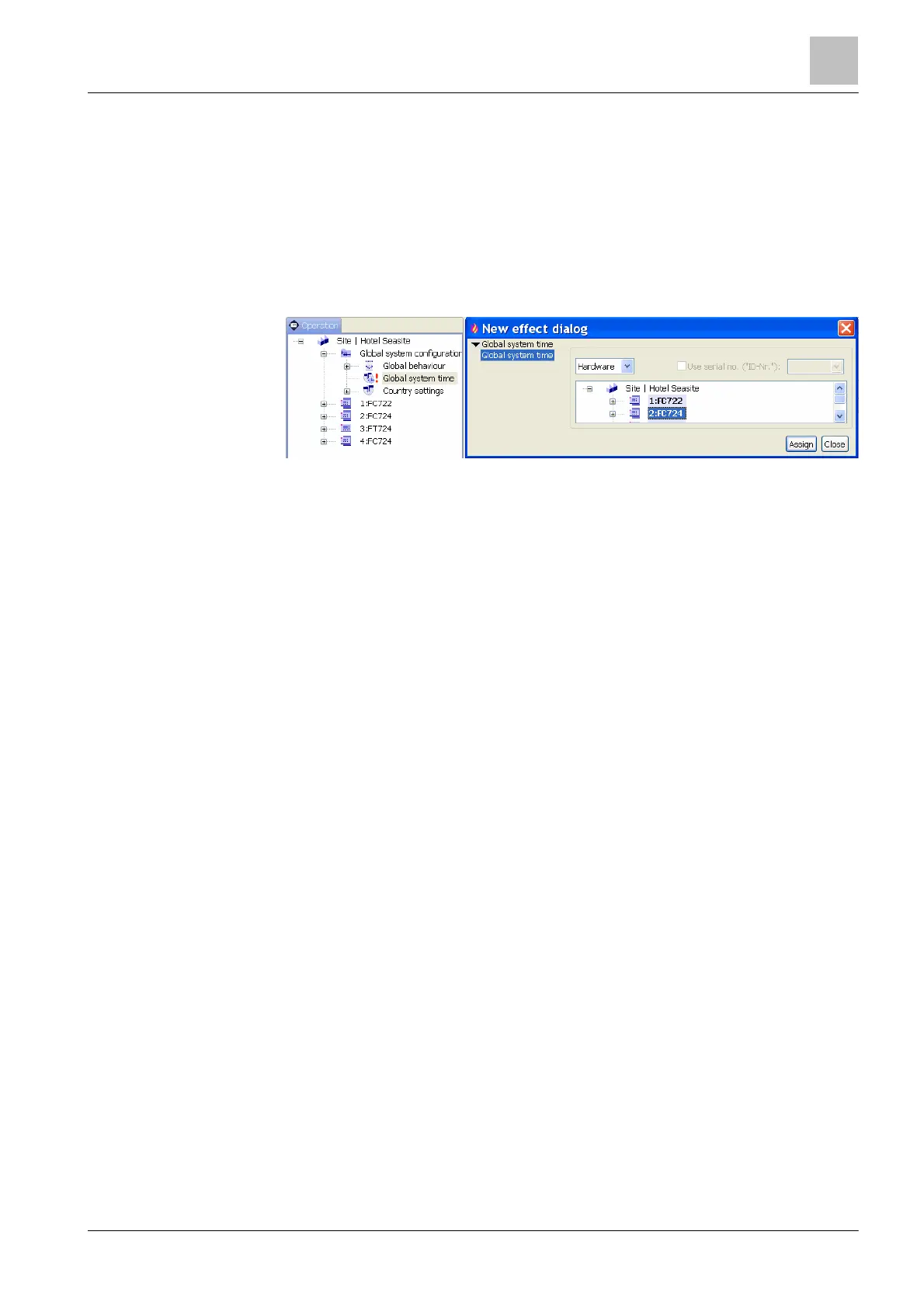

Figure 85: Assign master clock
To assign the master clock, proceed as follows:
1. Select the 'Operation' task card.
2. Open 'Global system configuration' in the tree view.
3. Highlight 'Global system time'.
4. In the menu bar, click on 'Assign'.
a The 'New effect dialog' window opens.
a At the right in the window, the 'Hardware tree' is displayed.
5. Select the relevant 'Station' and click on 'Assign'.
a 'Global system time' is assigned to the 'Station'.
13.2 Person Machine Interface (PMI)
The 'PMI' element contains the configurable elements of the Person Machine
Interface:
● Basic settings
● 'LEDs'
● 'Standard keys'
● 'Favorite keys'
● ↑ Visibility
You will find information on these elements in the following chapters.
