16.7.1 Buttons and LED elements
Physical assignment of 'LED' and 'Keys' elements on the
extinguishing terminal
With the hardware ID, an 'LED' or a 'Keys' element can be assigned to the physical
components on the extinguishing terminal. The relevant hardware ID can be found
directly on the element in the 'Operation tree' and in the 'Overview' tab of the
element in question.
'Operation tree':
'Overview' tab:

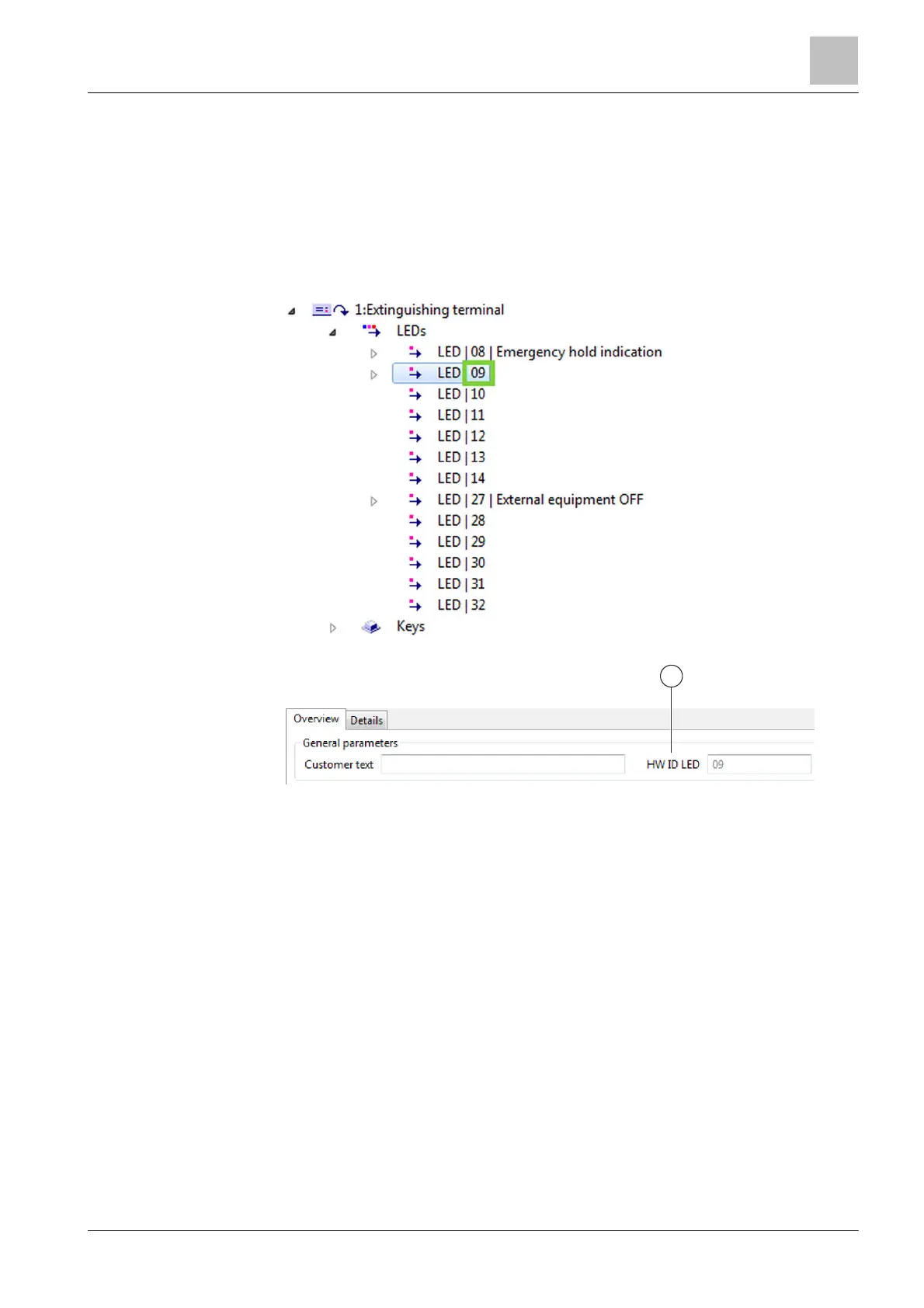

Figure 163: Hardware ID
1 Hardware ID
