The 'Fx72x/SAFEDLINK' references can then be moved to the various sub-nets
using the 'Drag and drop', 'Cut' and 'Paste' or 'Unassign' and 'Assign' functions.
If you create a
↑
standalone '
Station
' and then expand the
↑
'
Site
' with '
Stations
',
the standalone 'Station' automatically adopts the network settings of the first
'Station' added.
14.2.2 Configuring a 'Station' as a router station
A ↑ SAFEDLINK station is configured as a ↑ router station. The router station
connects the 'SAFEDLINK sub-net' with the 'Ethernet sub-net'.
The router station is created by assigning the 'Functions' element to the
'Fx72x/SAFEDLINK' reference.
The router station provides access to the private addresses of '
SAFEDLINK
sub
-
net'. The Ethernet participants must therefore recognize the router station as
being the ↑ gateway of the route to the 'SAFEDLINK sub-net'.

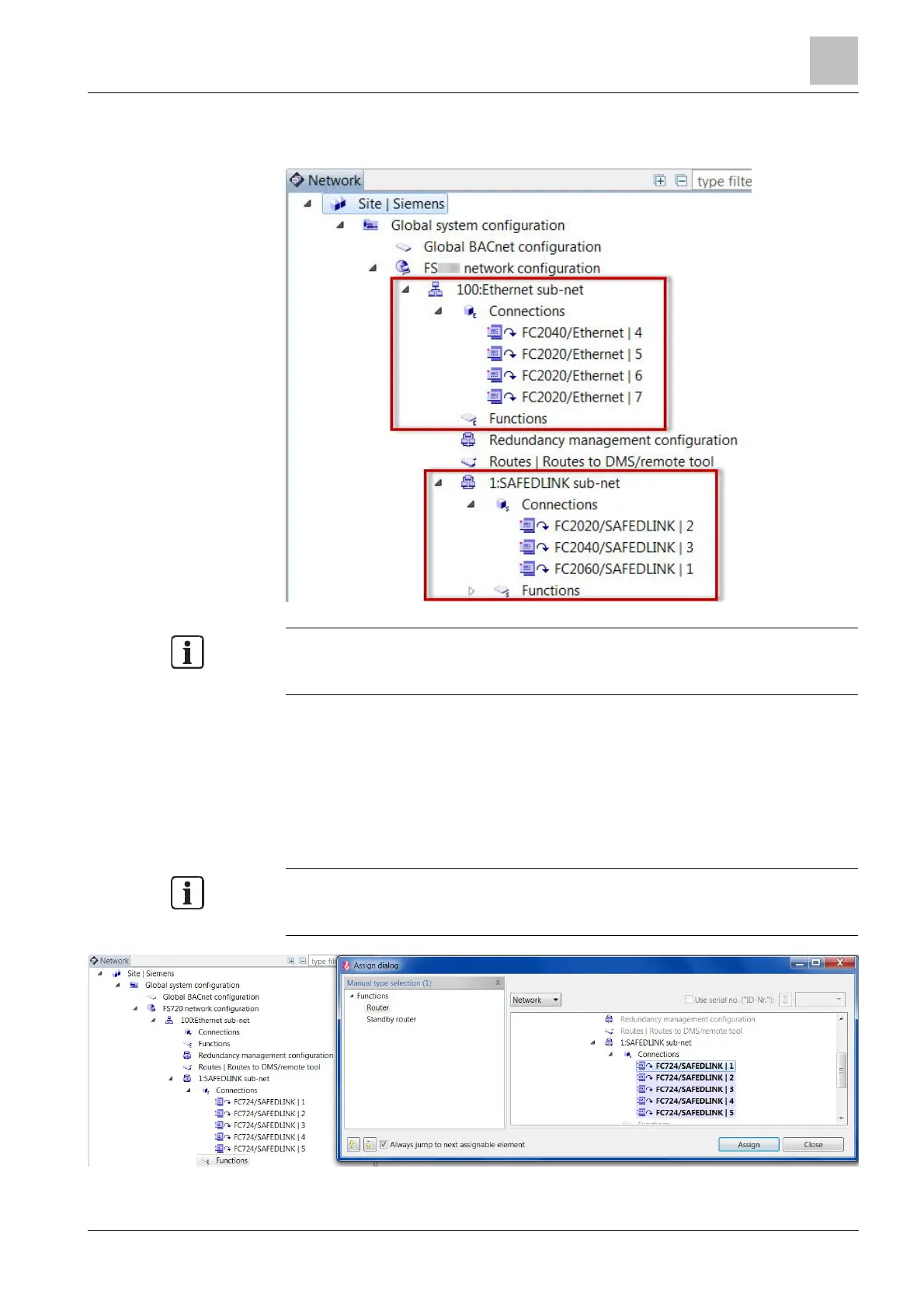

'Assign dialog' window to define the router station
