9. On the right in the tree, select 'BACnet client supervision'.
10. Click on 'Assign'.
a 'BACnet client supervision' is assigned to 'Standby visibility for Management
station'.
See also
2 Global BACnet configuration [➙ 330]
13.3.4 Expanded visibility
Expanded ↑ visibility enables increased visibility compared against standard
visibility. The expanded visibility is used so that e.g. the commissioning or
maintenance personnel can temporarily access other parts of the system. If, for
example, a ↑ 'Station' in the standard visibility only has visibility for one 'Area', the
expanded visibility can be configured in such a way that the entire 'Station'
becomes visible on activation.
The expanded visibility can be configured such that it can only be activated with
the failure of a monitored 'Station'.
The expanded visibility has to be activated and deactivated by a command on the
↑ Person Machine Interface.
The expanded visibility is used in [AT] to give the ↑ 'Stations' visibility of the rest of
the system in the event of a system collapse due to several network errors, in
accordance with TRVB S 123.
Creating expanded visibility

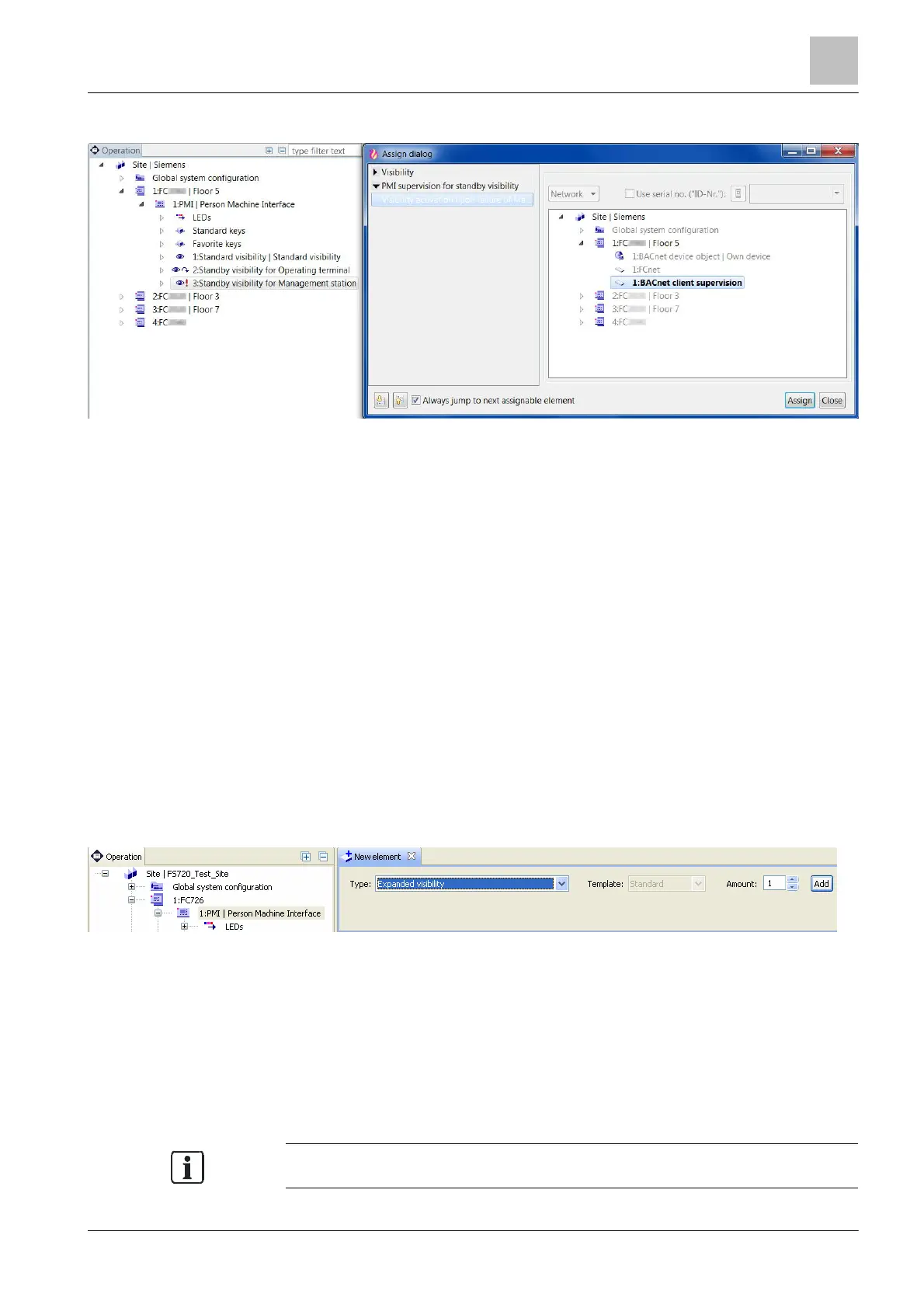

Figure 111: Creating expanded visibility
1. Select the 'Operation' task card.
2. In the tree view, open the ↑ 'Station' and highlight the 'PMI' element.
3. Open the 'New element' window.
4. Select 'Expanded visibility' in the 'Type:' field.
5. Click on 'Add'.
a The 'Expanded visibility' element is created.
You can
also create the standby visibility using the '
Assign
' function.
