13.4.5 Assigning the configurable keys and LEDs
Assigning the key ID to the key

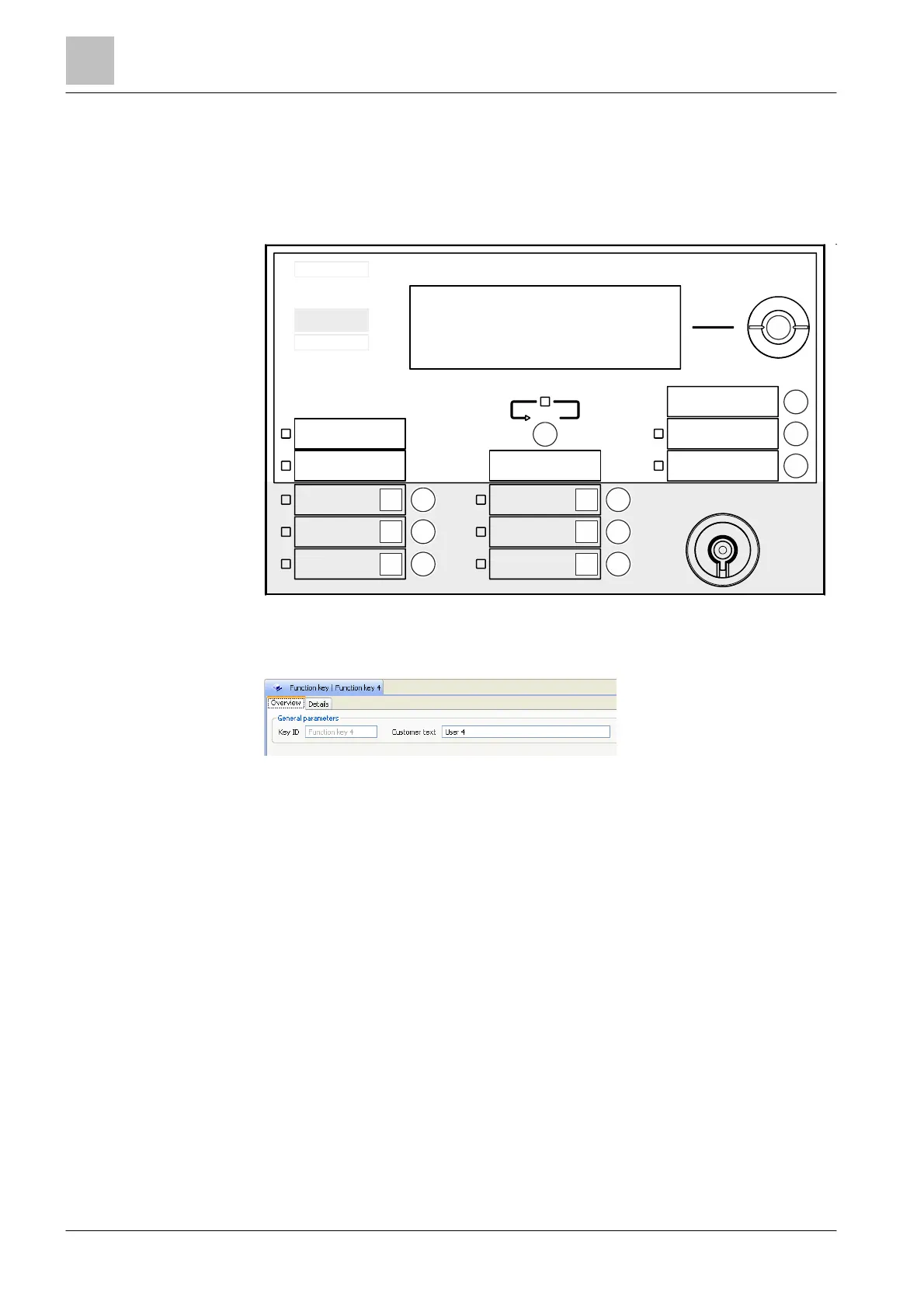

The figure below shows the assignment of the key ID to the corresponding
configurable key on the ↑ Person Machine Interface of the ↑ floor repeater
terminal. The numbers correspond to the key ID.
Figure 117: Assigning the key ID to the key on the Person Machine Interface of the floor repeater
terminal
You will find the key ID in the detail editor of the key in the 'Key ID' field.
Figure 118: Detail editor of a key with details of the key ID
6
5
2
1
3
4
