13.10.2 Creating and assigning the CERLOOP gateway

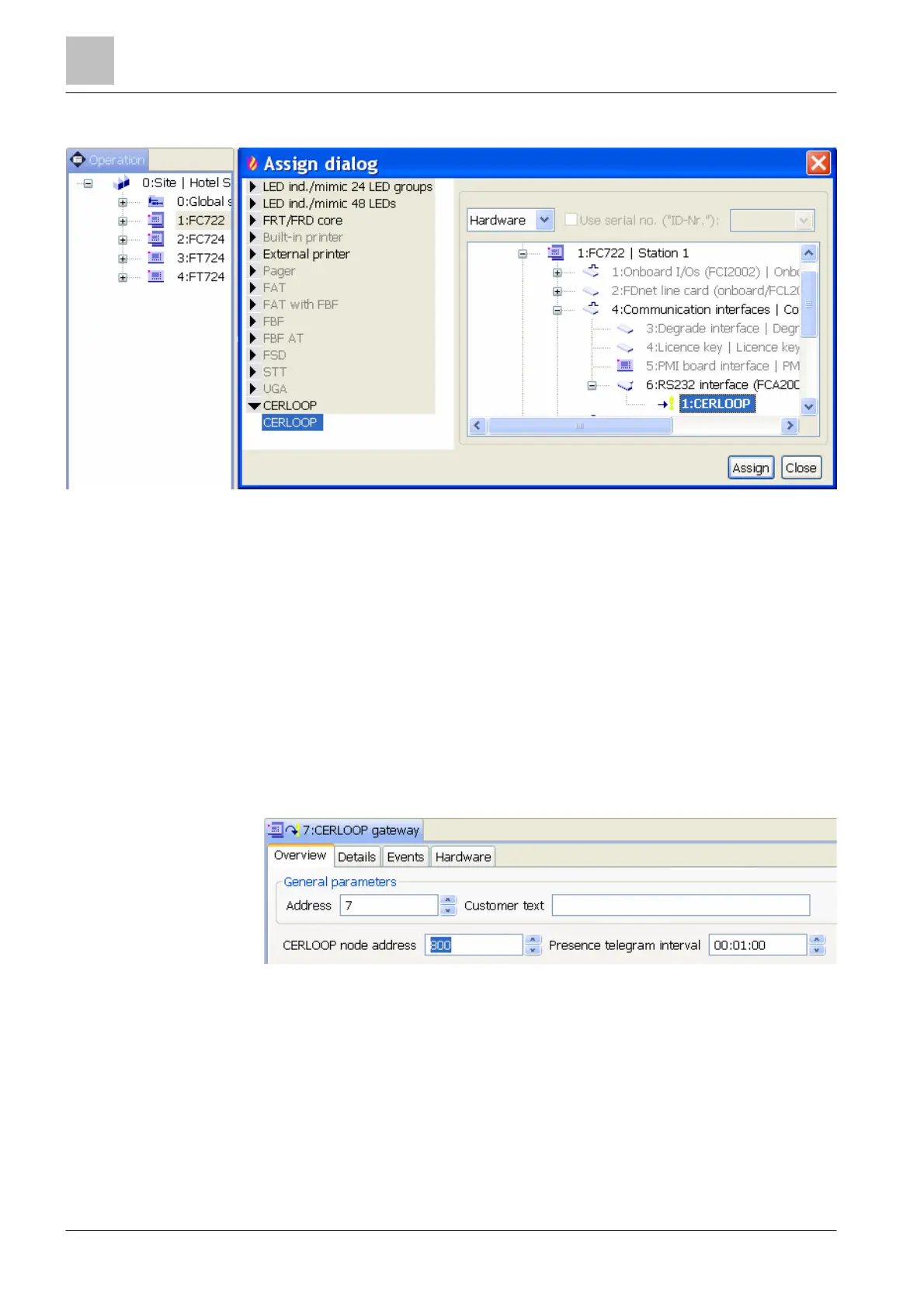

Figure 140: Creating and assigning the CERLOOP gateway
1. Select the 'Operation' task card.
2. In the tree view, highlight the ↑ 'Station' with the RS232 module.
3. In the toolbar, click on 'Assign'.
a The 'Assign dialog' window opens.
4. Highlight 'CERLOOP' at the left of the window.
a At the right in the window, the 'Hardware tree' is displayed.
5. Using 'RS232 module (FCA2001)' select the 'CERLOOP' element.
6. Click on 'Assign'.
a The 'CERLOOP gateway' element is created and assigned to the hardware.
Setting the properties of the CERLOOP gateway
Figure 141: Properties in the detail editor of the CERLOOP Gateway
1. Select the 'CERLOOP gateway' element in the tree view.
2. Set the following properties in the detail editor:
– 'CERLOOP node address': Address of the CERLOOP node (K1H061), to
which the ↑ CERLOOP gateway is connected.
– 'Presence telegram interval': Interval for sending the presence message.
