12.11.2 Configuring monitored output
Assign output

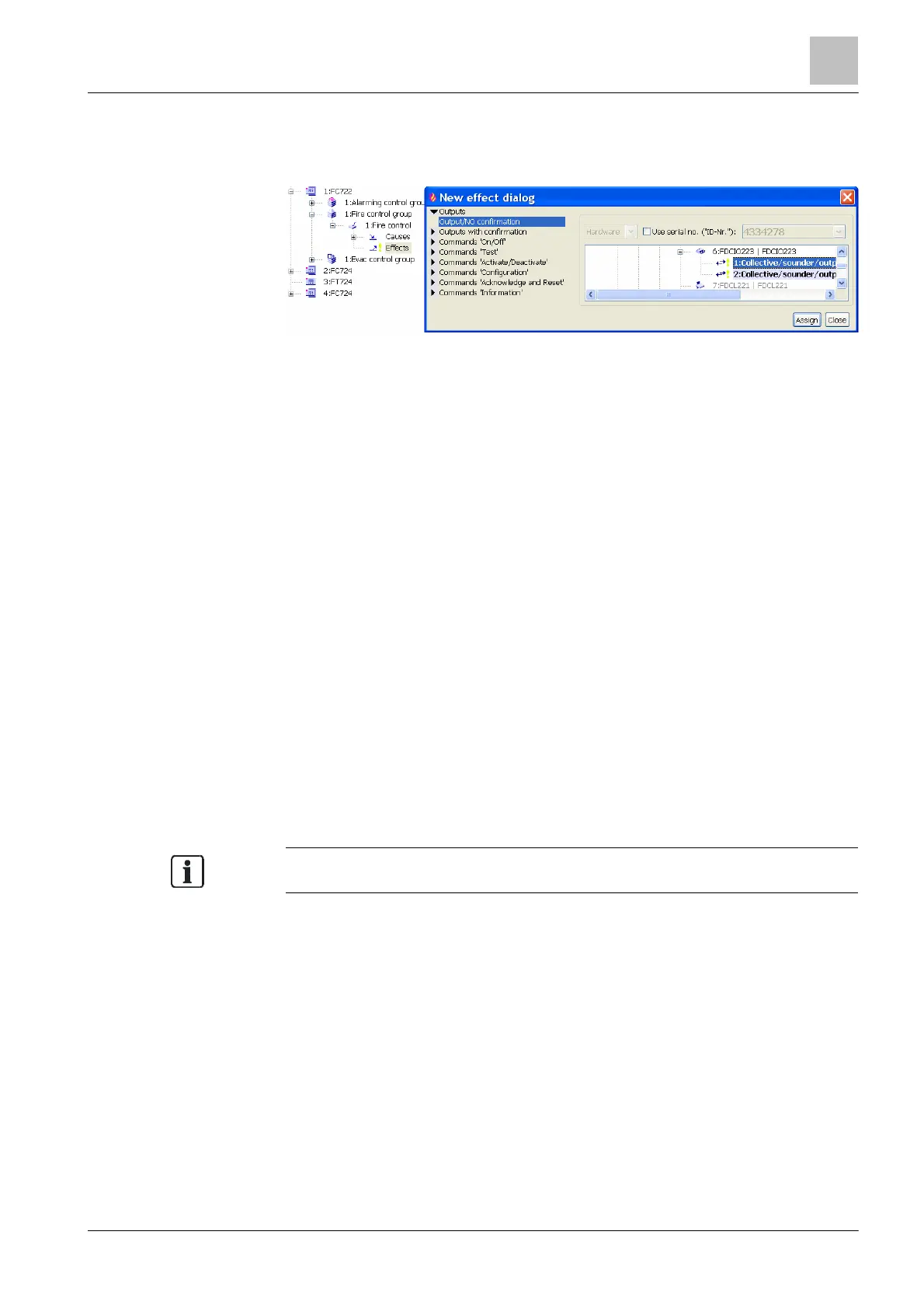

Figure 83: Assign output
1. Select the 'Control' task card.
2. Open ↑ 'Station' > ↑ 'Fire control group' > 'Fire control' in the tree view.
3. Highlight the 'Effects' element.
4. In the toolbar, click on 'Assign'.
a The 'New effect dialog' window opens.
5. Select 'Output/NO confirmation' at the left in the window.
a The 'Hardware tree' is depicted at the right of the window. The elements
that can be assigned are highlighted.
6. Open the FDCIO223 input/output module and select
'Collective/input/sounder/output'.
7. Click on 'Assign'.
a 'Collective/input/sounder/output' is assigned to 'Effects'.
Setting properties of the output
1. Highlight the assigned output in the tree view.
2. Set the properties you want in the detail editor.
You will find a description of the properties in the 'Hardware' tab in chapter
'Input/output module FDCIO223 [➙ 131]'.
You can also set the properties in the '
Hardware
' task card.
