13.4.3 LEDs
The LEDs on the ↑ Person Machine Interface signal events and conditions. In
addition, the LEDs support the operator's orientation.

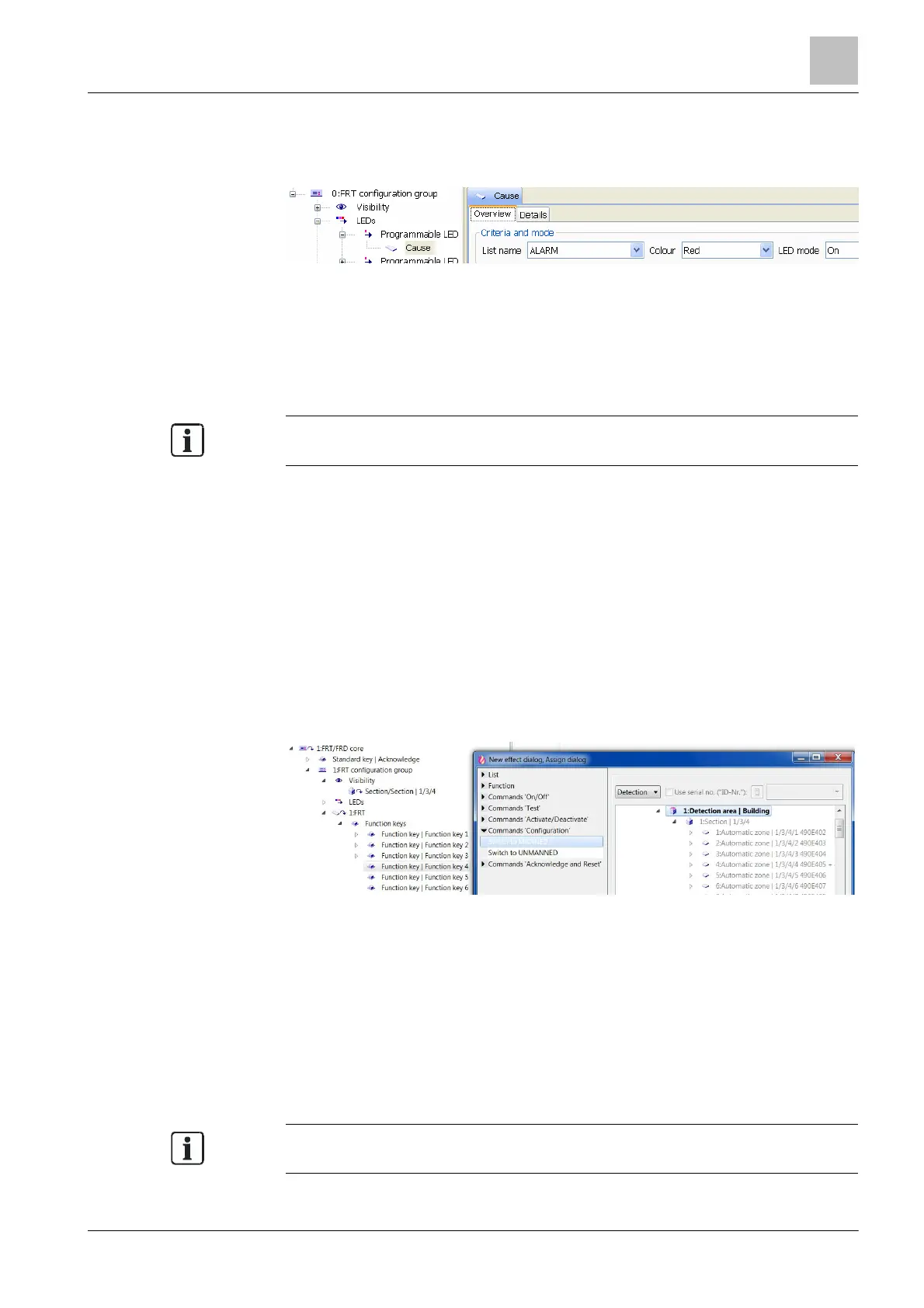

Figure 116: 'Programmable LED', 'Cause' detail editor
The following LEDs properties can be configured:
● Criterion that should activate the LED
● Color of the LED
● LED mode when LED is activated
The
↑
visibility must be configured on the corresponding category so that the LED
becomes active.
13.4.4 Function keys
Frequently used commands can be assigned to the function keys, e.g.:
Activate/Deactivate, Test, Configuration ('Set PS MANNED', 'Switch to
UNMANNED', etc.).
Assigning a function to the function keys
1. Select the 'Operation' task card.
2. In the tree view, open ↑ 'Station' > 'FRT/FRD core' > in the 'FRT configuration
group' > 'FRT' > 'Function keys' example.
3. Highlight the corresponding 'Function key'.
4. Open the 'Assign dialog' window.
1. In the window, select 'Commands 'Configuration'', for example, followed by a
function.
a The ↑ Detection tree is now shown. The elements that can be assigned are
highlighted.
2. Highlight e.g. 'Area', and click on 'Assign'.
a 'Function key' is assigned to 'Area'.
Assigning commands
Commands are assigned in the same way as with standard keys. You will find
information on this in chapter 'Configuring standard keys and favorites [➙ 267]'.
The
↑
visibility must be configured on the corresponding category so that the
function key becomes active.
