Hardware is already read in

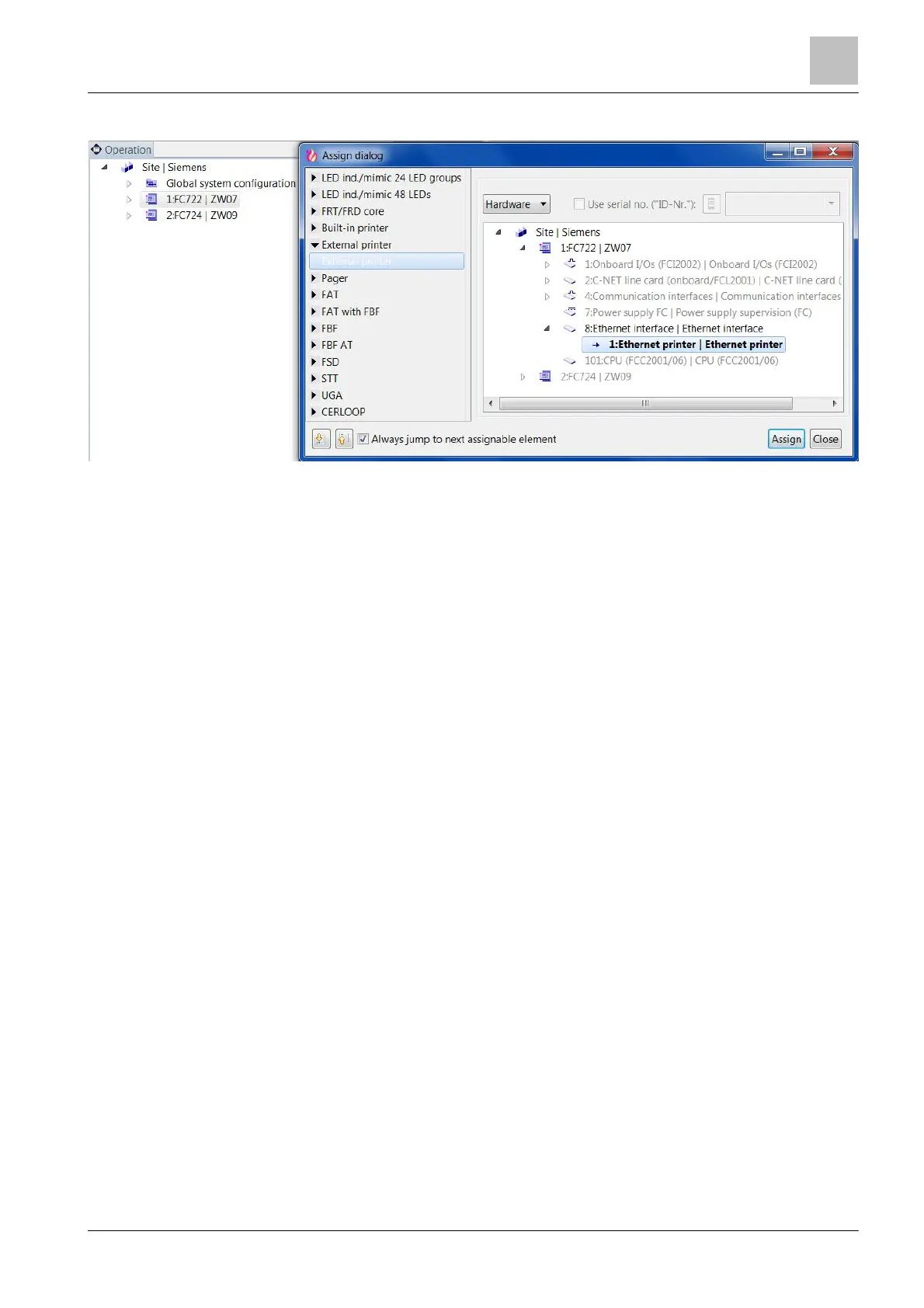

Figure 128: 'Assign dialog' window for creating and assigning the 'Built-in printer' or 'External printer'
element
To create the 'Built-in printer' or 'External printer' element and assign it to the
hardware, proceed as follows:
1. Select the 'Operation' task card.
2. In the tree view, highlight the ↑ 'Station' with the interface to which the printer is
connected.
3. Open the 'Assign dialog' window.
4. In the 'Assign dialog' window, select 'Built-in printer' or 'External printer'.
a In the Hardware tree, the 'RS232 printer' or 'Ethernet printer' element is
highlighted under 'RS232 module (FCA2001)' or 'Ethernet interface'.
5. Highlight the element and click on 'Assign'.
a The element is created and assigned to the hardware.
