Siemens FUS1010 User Manual

Functions
7.7 Expanded I/O Option
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
123
Expanded I/O Module Option Programming

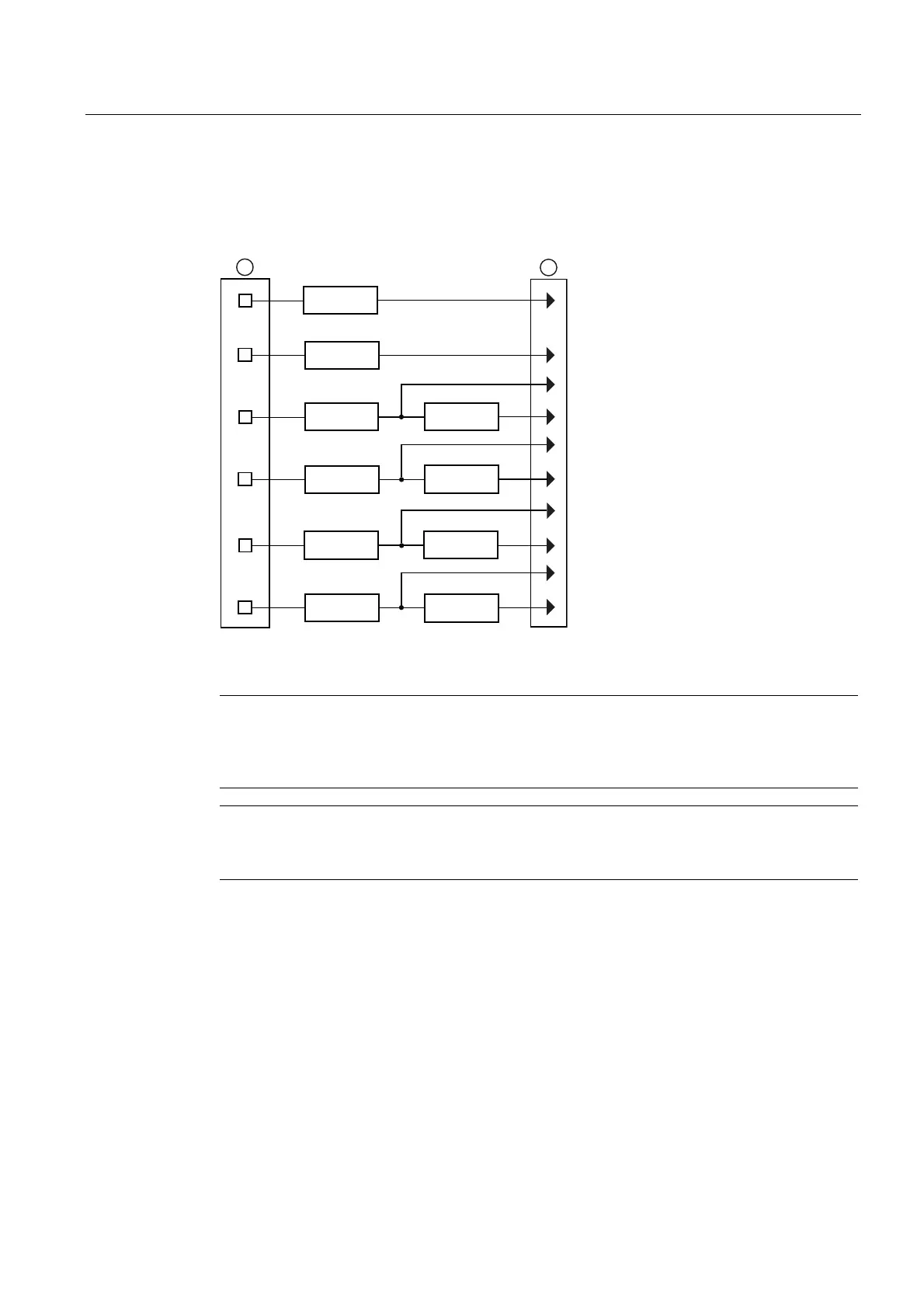

The diagram below illustrates the Expanded I/O Module Option programming for a Single
Channel flow meter with a 1010N-7 Expanded I/O Module.
9
9
9
9
9
9
$X[,R
$X[,R


,R
,R
3JHQ
3JHQ
9R
9R
$X[,R
$X[,R
① Flow meter Internal Connections
② Output Terminal Strip
Note
The 1010N-7
Expanded I/O Module auxiliary output signals (Aux Io1 - Aux Io4) generated
from Pgen1, Pgen2, Vo1 and Vo2 are "mirrored" output currents. For example, if Vo1 is a 5
VDC signal then Aux Io3 will be 12mA.
Note
The metho
d used to create auxiliary current loops makes it impractical to generate the 2mA
fault current produced by the primary 4-20mA outputs of the flow meter.
