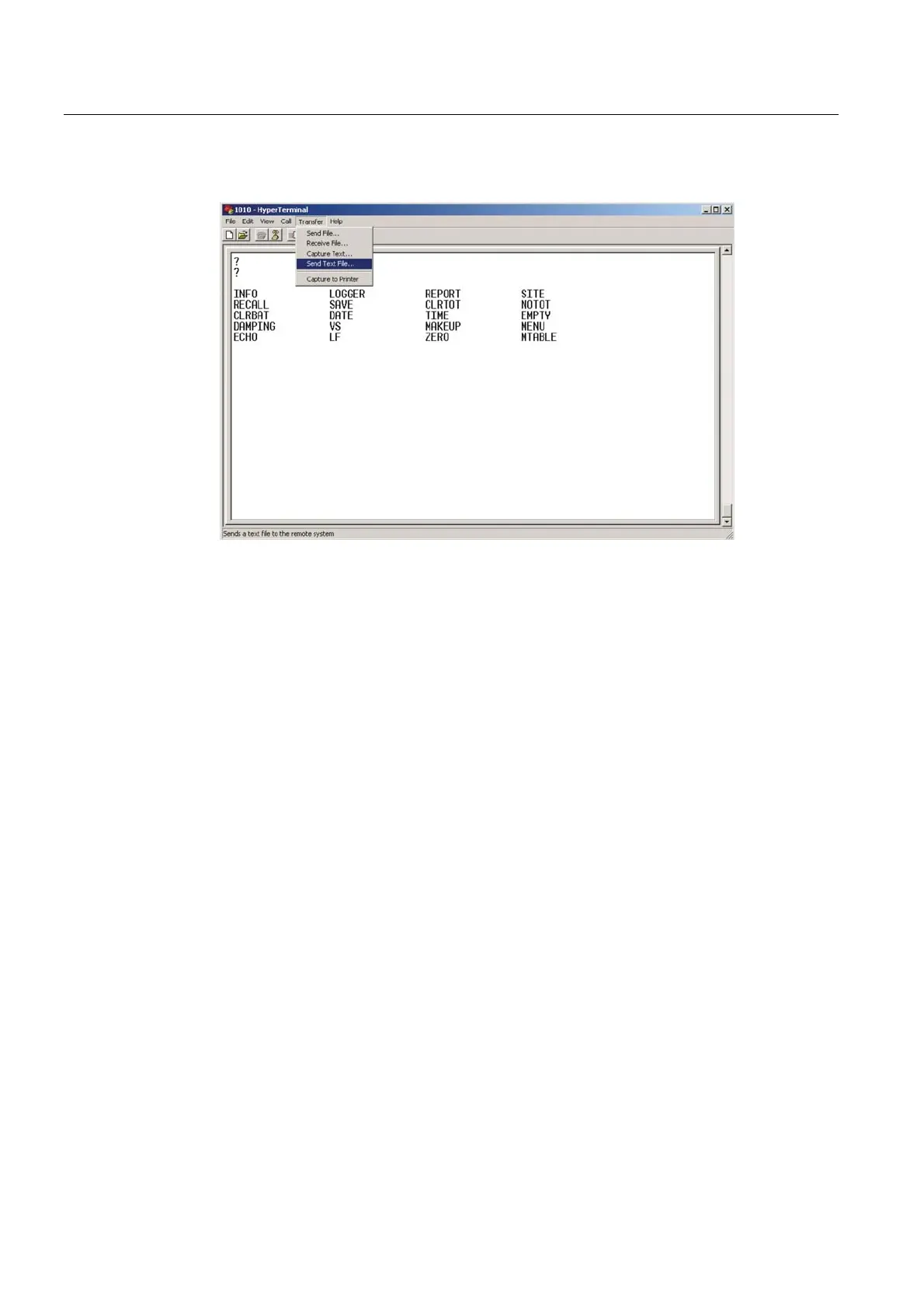

11. Click on [Send Text File], select the file called [unimout.txt] and upload that file.
12. This is the sonic velocity that the meter measures when a liquid of known specific gravity
and viscosity are in the pipe at the appropriate temperature.
7.2 Selecting Flow Units
Flow Units
The [Flow/Total Units] menu is available after selecting a meter type and measurement
channel. Use the [Flow/Total Units] menu to select volumetric flow units and an associated
time base for the flow rate and total outputs. After making your selections, a view-only menu
cell shows the resultant scaling. Another menu cell lets you adjust the output resolution by
selecting a display range.
Selecting Flow Volume Units
The [Flow Vol. Units] option list allows you to select the rate units the flow meter uses to
report volumetric or mass flow. If you select mass units, the flow meter uses the specific
gravity parameter to convert volumetric flow to mass flow. The default in English Units for
liquid is [Gallons].
To select a Volumetric or Mass unit:
1. Press the <MENU> key and [Meter Type] will be highlighted.
2. Press the <Right Arrow> to [2 Channel Flow] and then press <ENTER>.
3. The [2 Channel Flow] menu with appear with [Channel Setup] menu item highlighted.
