5.4 Programming the Transmitter

FUS1010 IP65 NEMA 4X & IP66 NEMA 7

Operating Instructions, 01/2013, A5E02951520-AC

5.4 Programming the Transmitter

Select Language and Units

Note

Before creati

ng a site select a Language and then English or Metric units from the [Meter

Facilities] menu.

Note

To select English or metric units: In [Meter Type] menu, scroll to [Meter Facilities] menu.

Press <Right Arrow> and select [Preferred Units]. Press <ENTER> to select. Press <Left

Arrow> and <Up Arrow> to return to main menu.

Select a Meter Type

1. Press the <MENU> key and select the Meter Type.

2. Press the <Right Arrow> and scroll to [2 Channel Flow]

Note

Select [2 Channel Flow] if measuring two different pipes and [Dual Path Flow] if sensors

are mounted on the same pipe.

3. Press <ENTER> to select. Press <Right Arrow> to select a different meter function, if

desired then press <ENTER>.







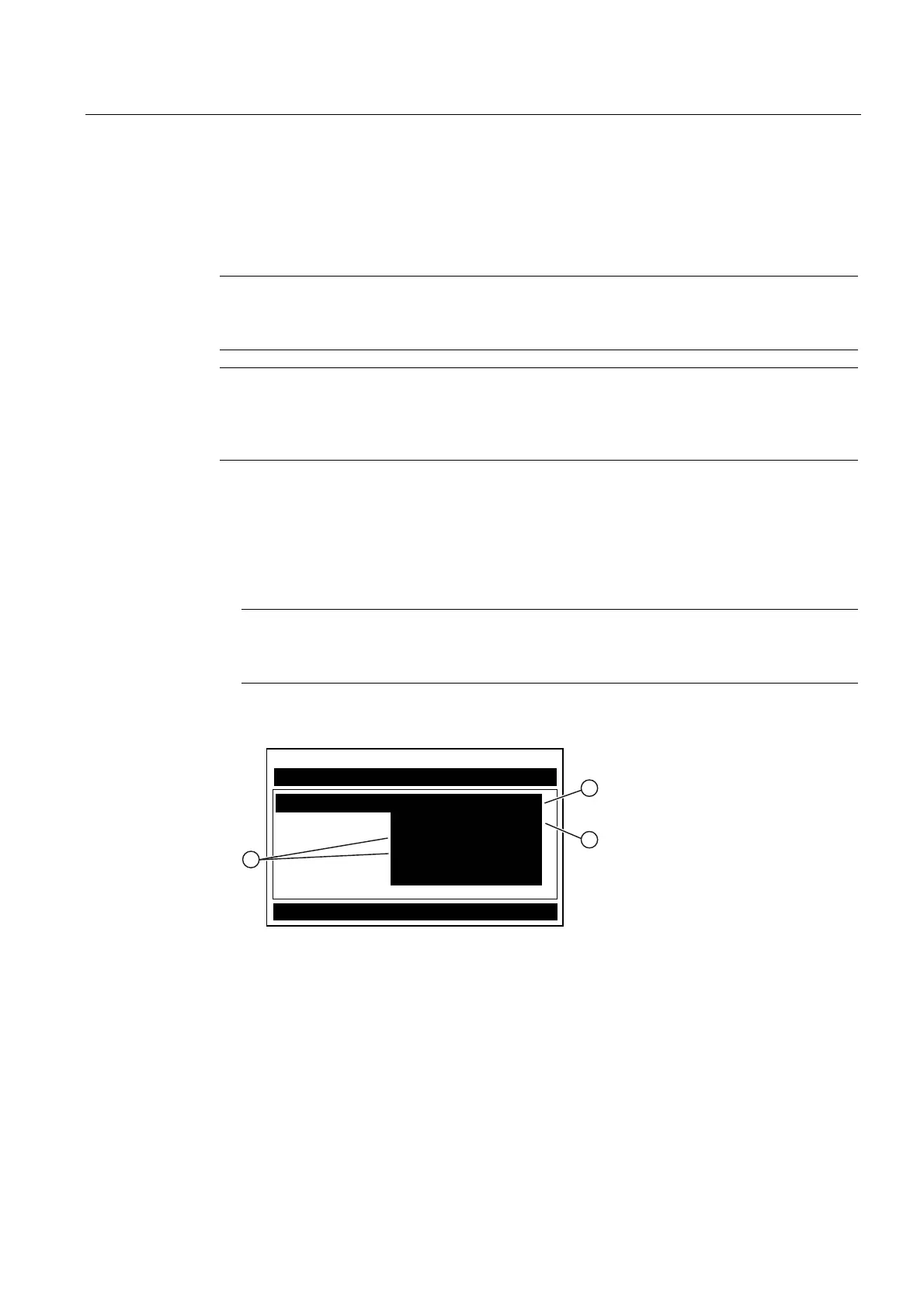

6LHPHQV &KDQQHO>@&KDQQHO

6HOHFW0HWHU7\SH

0HWHU7\SH !&KDQQHO)ORZ

0HWHU)DFLOLWLHV 3DWK)ORZ

/DQJXDJH  &K)ORZ

  &K)ORZ

  5HIOH[RU

① Select for summing or subtracting flow from two different pipes.

② Select for measuring two different pipes. (Not available for all models.)

③ Select if two sensors are mounted on the same pipe.

Siemens FUS1010 User Manual
