Connecting
5.2 Transmitter Wiring
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
44 Operating Instructions, 01/2013, A5E02951520-AC
7%
776
7%
775















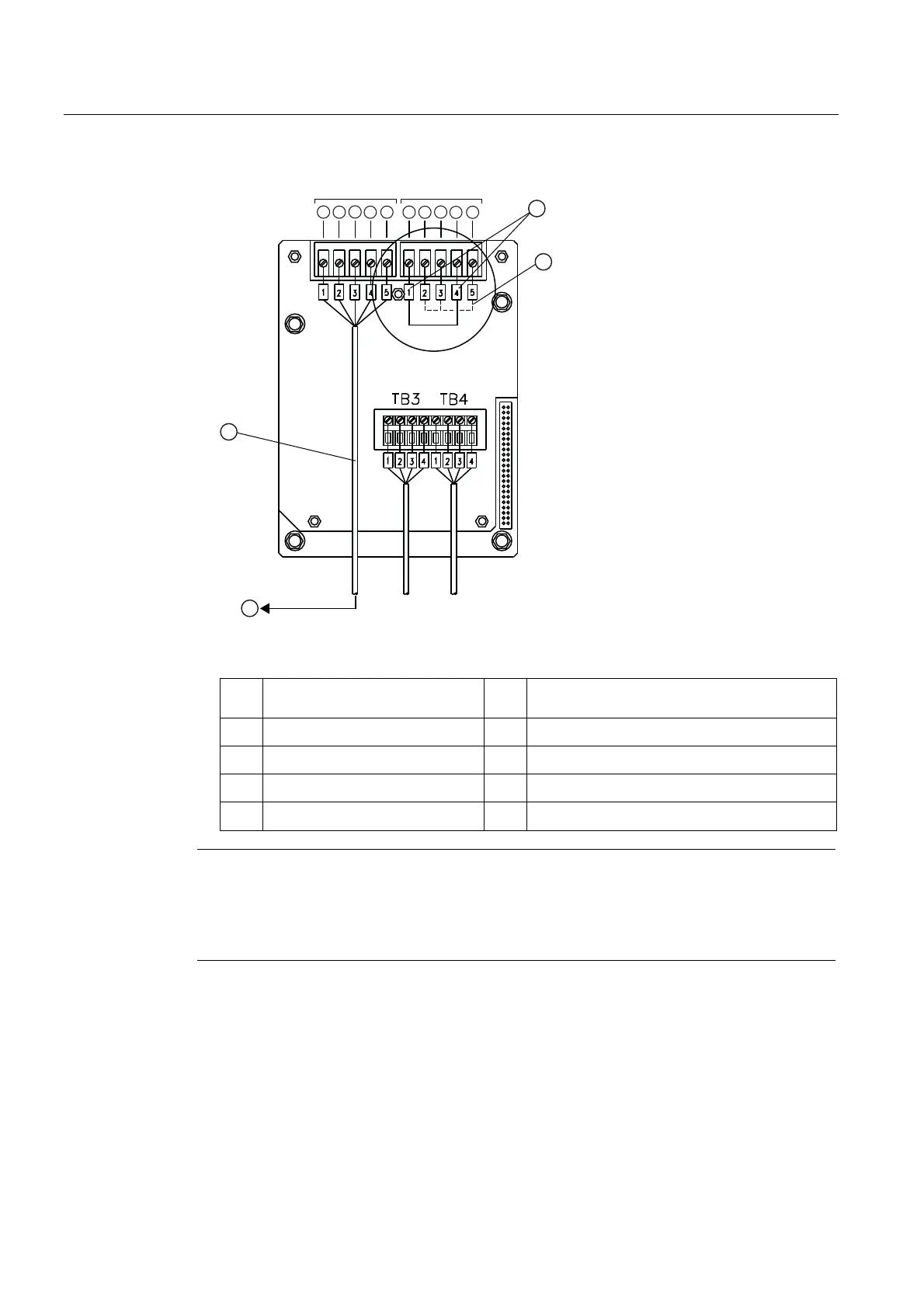

Figure 5-3 Single Channel Temperature Sensor Inputs
① ⑥
Black Short Terminals 1 and 4 (For FUE1010 - TB2 is
used for another Temperature sensor.)
②
Orange
⑦
Ground Terminals 2 and 3 to Terminal 5
③
Brown
⑧
To Sensor
④
Red
⑨
7ME39600CR (992EC) Series Cable
⑤
Blue
Note
Alternate colo
r codes for certain 1012EC cables:
White = Orange
Green = Brown
