5.5 Sensor Installation
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
75
Positioning Track Assemblies
1. Wrap a length of the Mylar spacing guide around the pipe and against the end of the
track assemblies. Ensure that the spacer guide edges on both sides align. Arrange so
that one end overlaps the other by at least 8 cm (3 inches). Trim to fit if necessary, but in
order to keep the end square, be sure not to trim at the overlapping end.
① Trim material from inner edge if necessary
② Mylar Spacing Guide
③ 8 cm (3-inches) Overlapping Edge

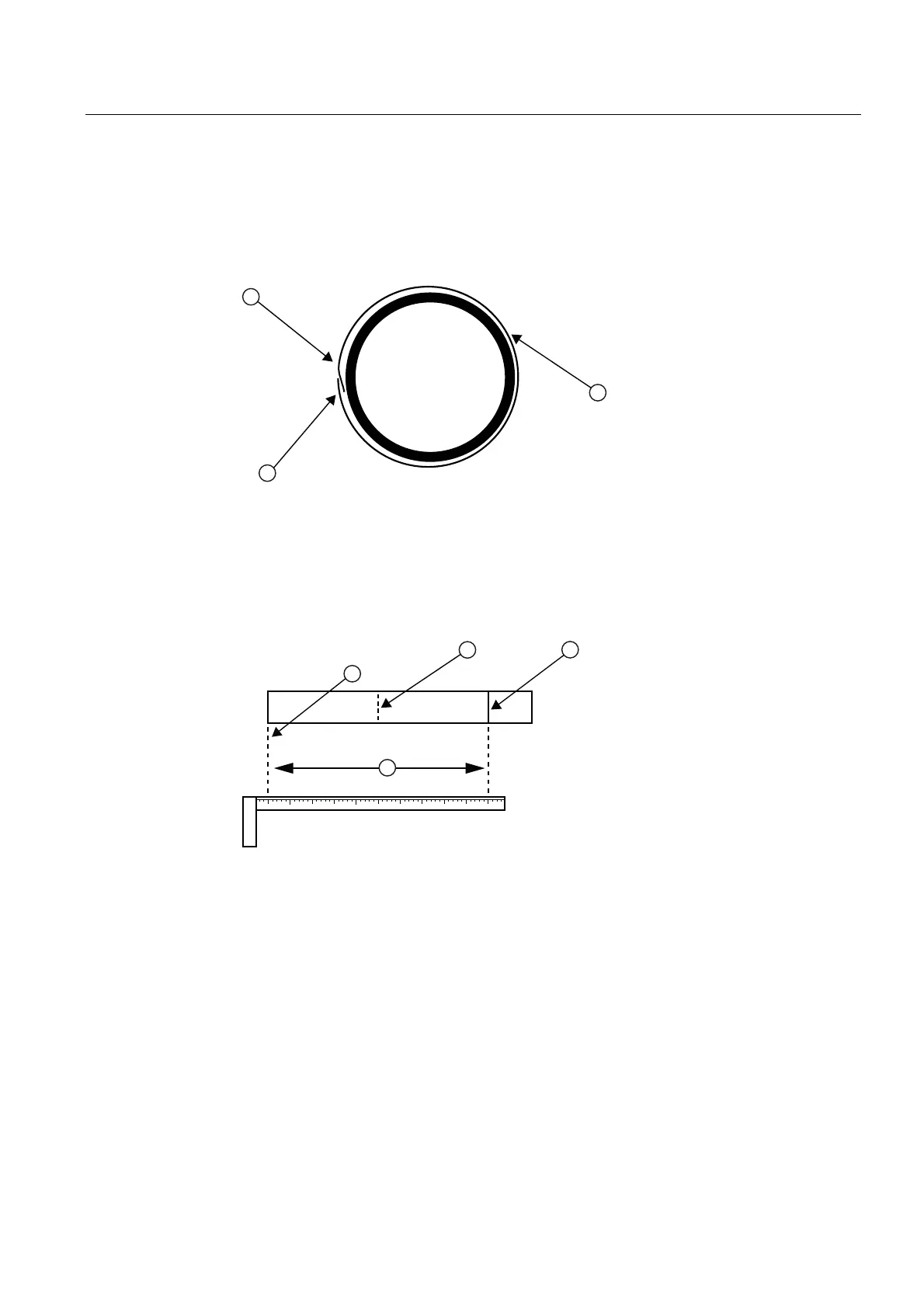

Figure 5-22 Wrapping the Mylar Spacing Guide around the pipe (End View)
2. Remove the spacer guide. Measure or fold spacer guide to find its halfway distance. Mark
a center line and then tape spacer guide to pipe.
① ③ Overlap Edge Mark on Spacing Guide
② Mark (or fold) exactly at half-way point ④ Circumference
Figure 5-23 Finding the Halfway Distance
