Siemens FUS1010 User Manual

Connecting
5.5 Sensor Installation
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
73
Note
A pin will be inserted into the hole designated by the Number Index on the Direct Mode
track rail to position one of the sensors (see
⑩ in figure below).















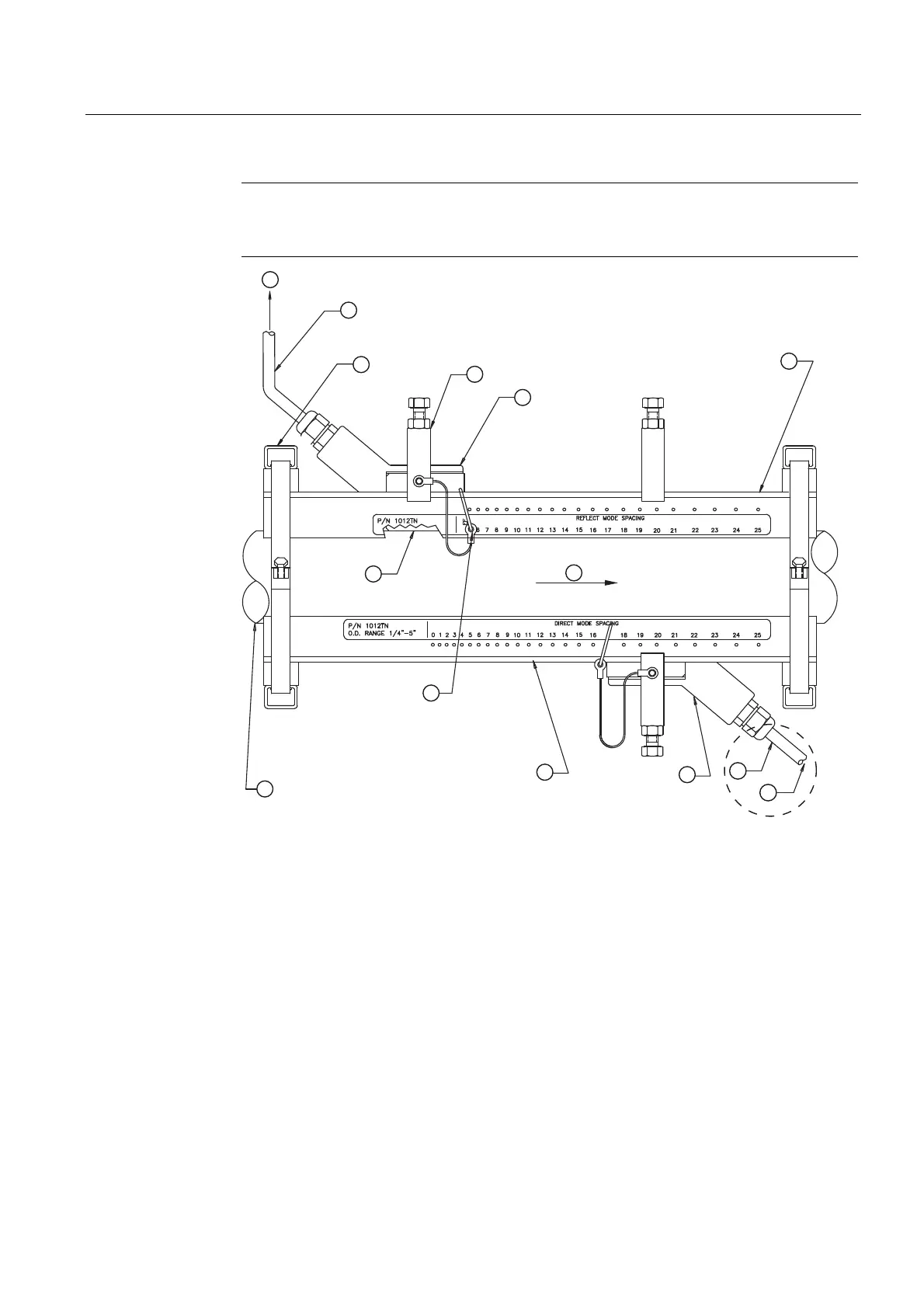

① ⑦ To SITRANS F Transmitter 7ME3950 Series Sensor Downstream
② 7ME39600CK Series Cable (992CNF) ⑧ Flow direction
③ Mounting Strap Guide ⑨ 7ME39600M Series Mounting Track
(1012TN, 1012TNH)
④ Sensor Clamp ⑩ REF Hole Index Pin
⑤ 7ME3950 Series Sensor Upstream ⑪ Ultrasonic Couplant
⑥ 7ME39600M Series Mounting Track
(1012TN, 1012TNH)
⑫ Pipe
Figure 5-21 Direct Mount 180° opposed with Mounting Tracks
