3.2 NEMA 4X and NEMA 7 Transmitters
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
22 Operating Instructions, 01/2013, A5E02951520-AC
SITRANS-FUS1010 NEMA Transmitter Labels
The transmitter label is located on the right side panel of the unit. The illustration shows a
typical label but labels vary depending upon model and installation location.

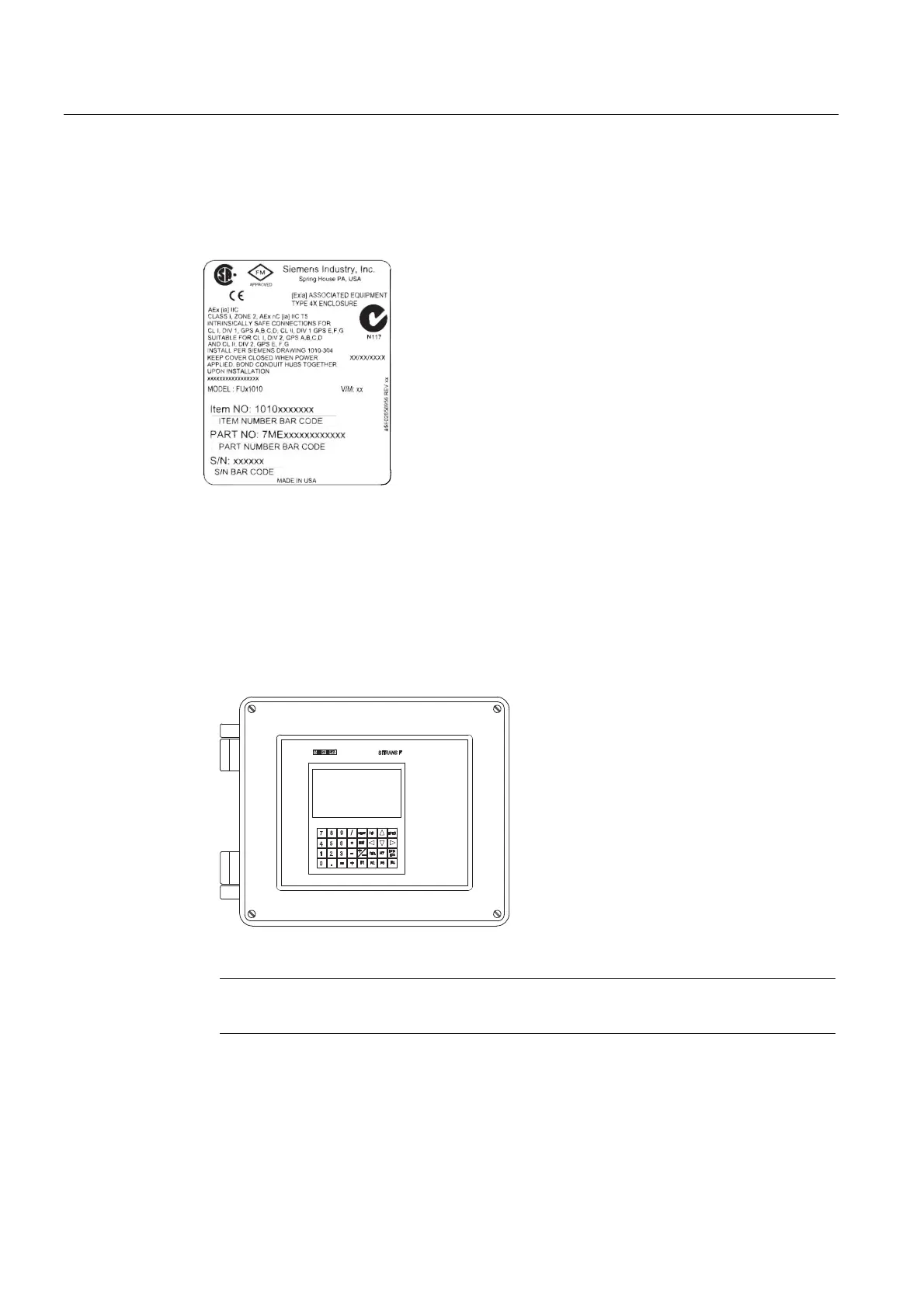

Figure 3-1 Typical Transmitter Label
SITRANS FUS1010 Model Numbers
The SITRANS FUS1010 NEMA 4X model numbers:
● Single Channel - 7ME3530-1
● 2 Channel / 2 Path - 7ME3530-2
● 4-Channel / 4-Path - 7ME3530-9 (Wall Mount only)
Figure 3-2 NEMA 4X Transmitter Case
Note
The NEMA 4X Multi-Path transmitter case is slightly larger.
