Description
3.3 Applications
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
23
The SITRANS FUS1010 NEMA 7 model numbers:
● 2 Channel / 2 Path - 7ME3533-2 (Wall Mount with display window)
● 4 Channel / 4-Path - 7ME3533-9 (Wall Mount with display window)
WARNING
Electrical Shock Hazard
Acce
ss to the Graphic display and keypad setup must be done with cover opened
exposing high voltage connections which may cause death or serious injury.
Consult local codes for permit needed to setup FUS1010 NEMA 7 units using the
graphic display and local keypad to avoid injury.
① Standard Case Enclosure

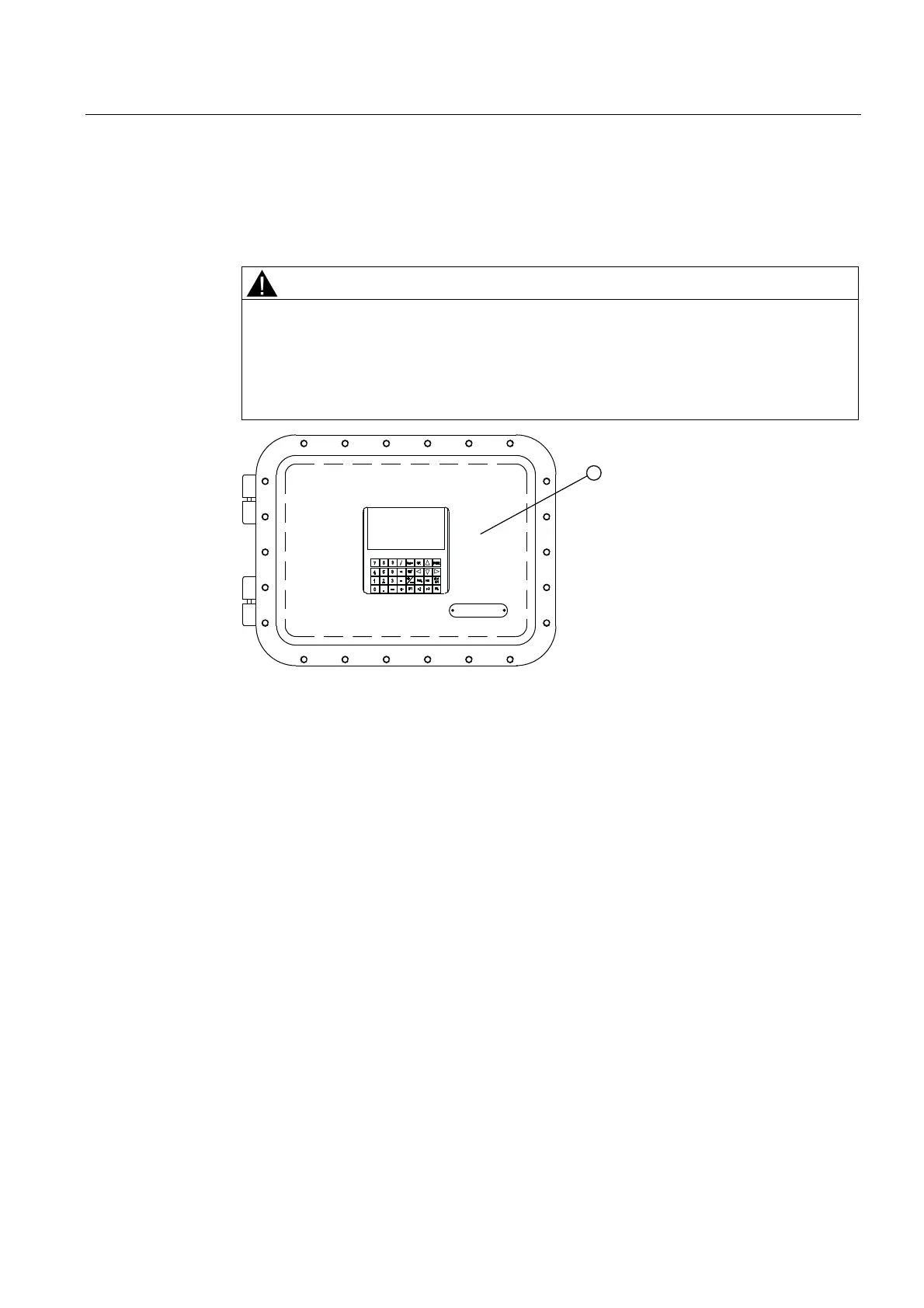

Figure 3-3 NEMA 7 Case Enclosure with graphic display and keypad.
3.3 Applications
Measurement of Liquids
SITRANS F flow meters are designed for measurement of a variety of liquids and gases. The
transmitters are multi-parameter devices offering accurate measurement of mass flow,
volume flow, density, and temperature.
Typical Applications
The typical applications of the flowmeter are:
● Fuel Flow Measurement
● Hydraulic Oil Leak Detection
● Measurement of Additives
● Oil & Gas: Filling of gas bottles, furnace control, CNG-dispensers, test separators
● Crude Oil
