Appendix
A.3 RS-232 Connection
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
202 Operating Instructions, 01/2013, A5E02951520-AC
7%
776
7%
775

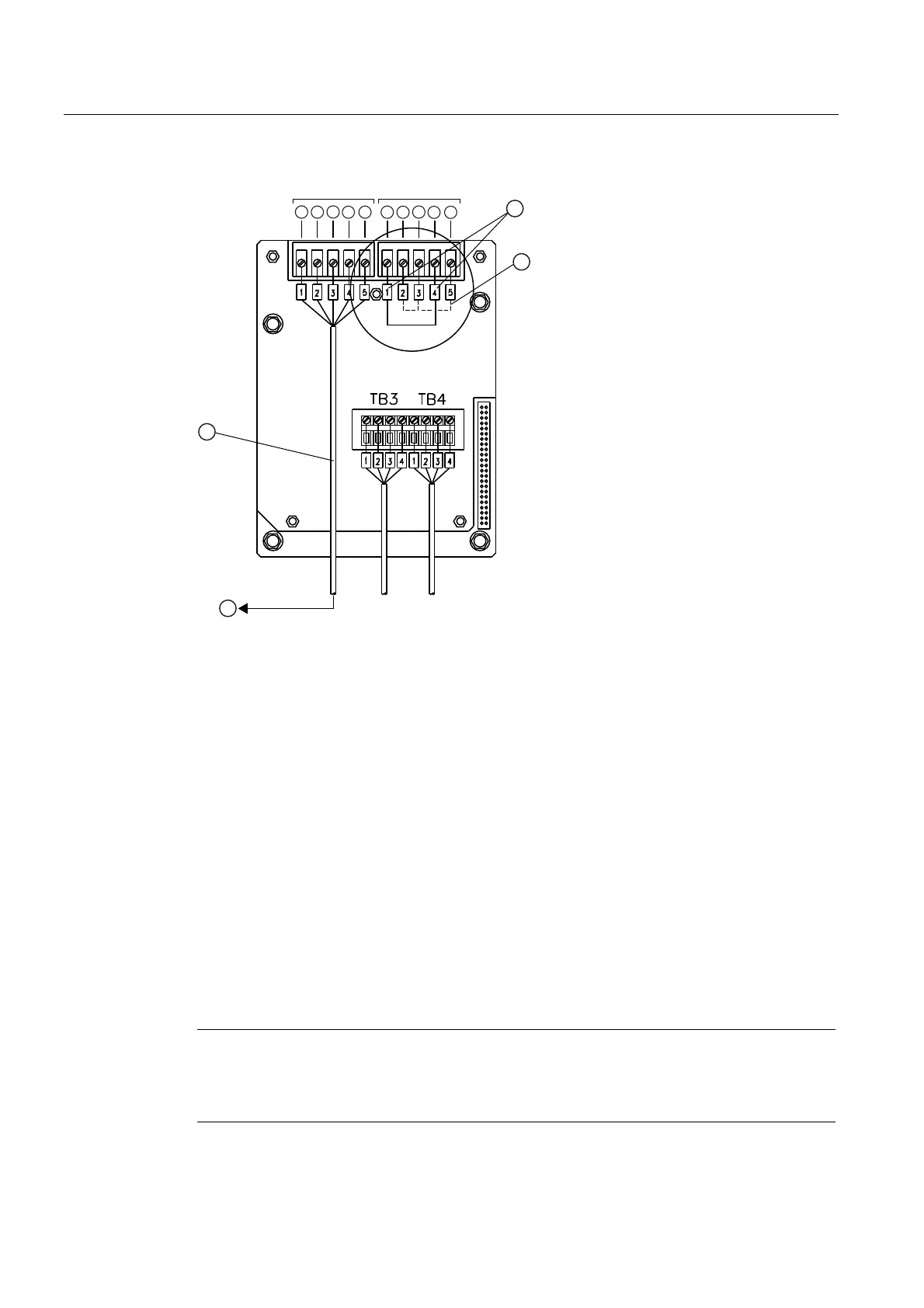

① Black ⑥ Short Terminals 1 and 4 (For FUE1010 - TB2 is used for
another Temperature sensor.)
② ⑦Orange Ground Terminals 2 and 3 to Terminal 5
③ ⑧ To Sensor
④ Red ⑨ 7ME39600CR (992EC) Series Cable
⑤ Blue
A.3 RS-232 Connection
The hardware and software requirements for programming the SITRANS F-1010 models
require a PC connected to the RS-232 serial port. The serial interface cable includes 9-pin
and 25-pin connectors to accommodate both types of IBM-compatible serial ports. A PC
communication program such as Si-Ware (download program at: http://s13.me/ns/cv) or
HyperTerminal (Windows 95/98/NT/2000/XP) serves as the data entry interface. These
programs reproduce the menu screens that would appear on the system’s graphic screen.
Once the serial interface is established you can choose to program a graphic display system
using a PC and a communications program. However, note that the serial interface cable is
an option.
Note
You can u
se a DOS-based communications program also. Make sure that your PC is loading
the ANSI.SYS driver via your Config.sys file. Set the program’s RS-232 parameters to match
those of the flow meter (see HyperTerminal example screen on the following pages).
