Connecting
5.5 Sensor Installation
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
55






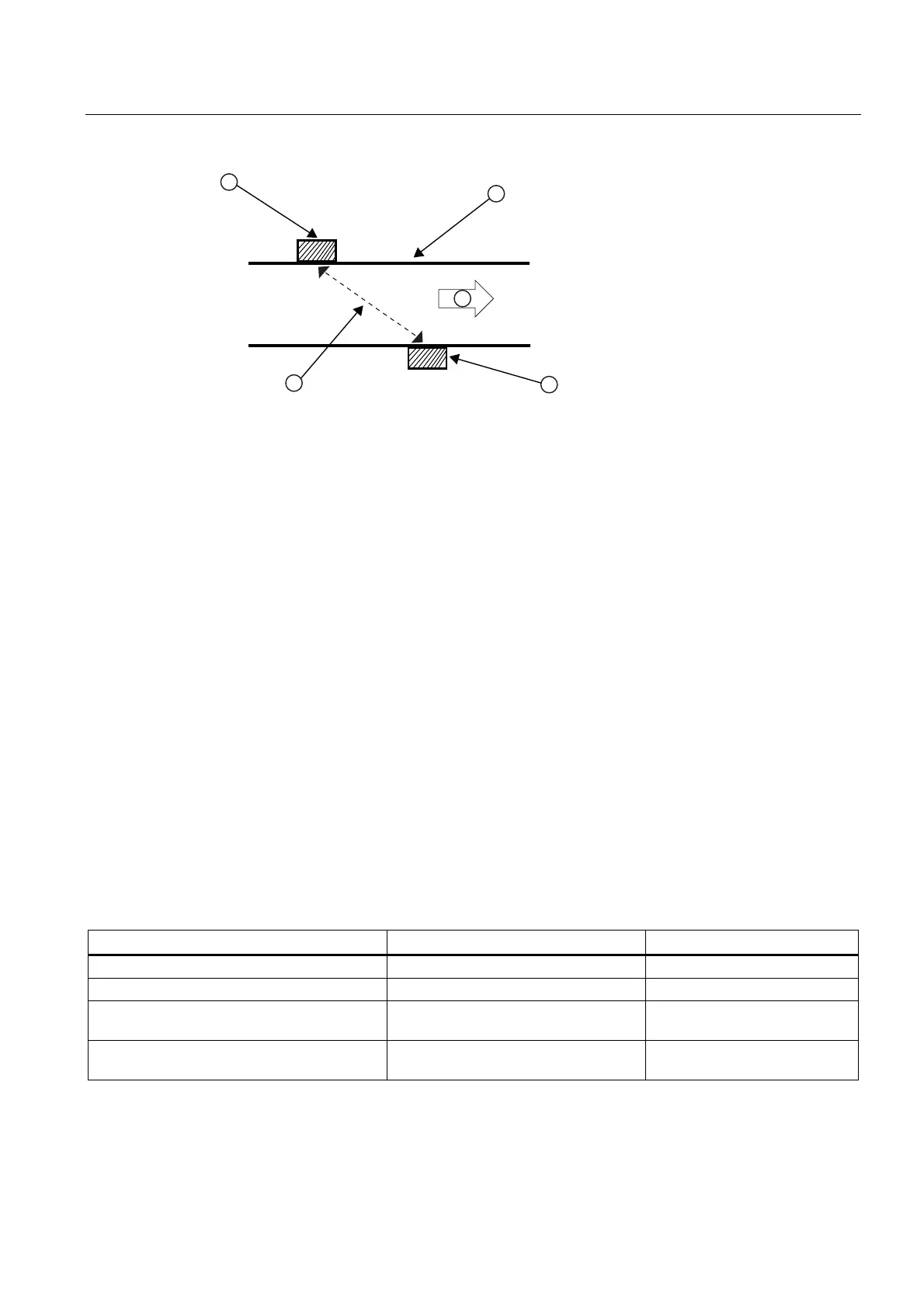

① ④ Upstream Sensor Downstream Sensor
② Pipe ⑤ Sonic path
③ Flow Direction
Figure 5-7 Direct Mount (Pipe shown from above in 12 o'clock position)
Mounting Supplies
The following items will be needed to mount the sensors (most are supplied):
● Flat blade screwdriver
● Mounting Frames or Mounting tracks
● Tape, chalk and a ruler or measuring tape
● Mounting Straps
● Spacer Bar
● Mounting Guide (for Direct Mount)
● Ultrasonic coupling compound and/or coupling pads
● Sensors (matched set)
Mounting Strap Kits
The available Mounting Strap kits are listed below. Each kit comes with up to two band sizes
to cover its designated pipe diameter range and a spacing guide for Direct Mount.
Mounting Strap Kits Pipe Diameter SAE Band Sizes (Qty.)
7ME396000SM00 50.8mm (2-inch) to 177.8mm (7-inch) #88 (2) #128 (2)
7ME396000SM10 50.8mm (2-inch) to 330.2mm (13-inch) #88 (2) #152 (2)
7ME396000SM20 330.2mm (13-inch) to 609.6mm (24-
inch)
#188 (2) #280 (2)
7ME396000SM30 609.6mm (24-inch) to 1219.2mm (48-
inch)
#152 (4) #312 (4)
