3. Use the edge of the Spacer Guide as a stop for both tracks to keep them parallel. Adjust
tracks as necessary.

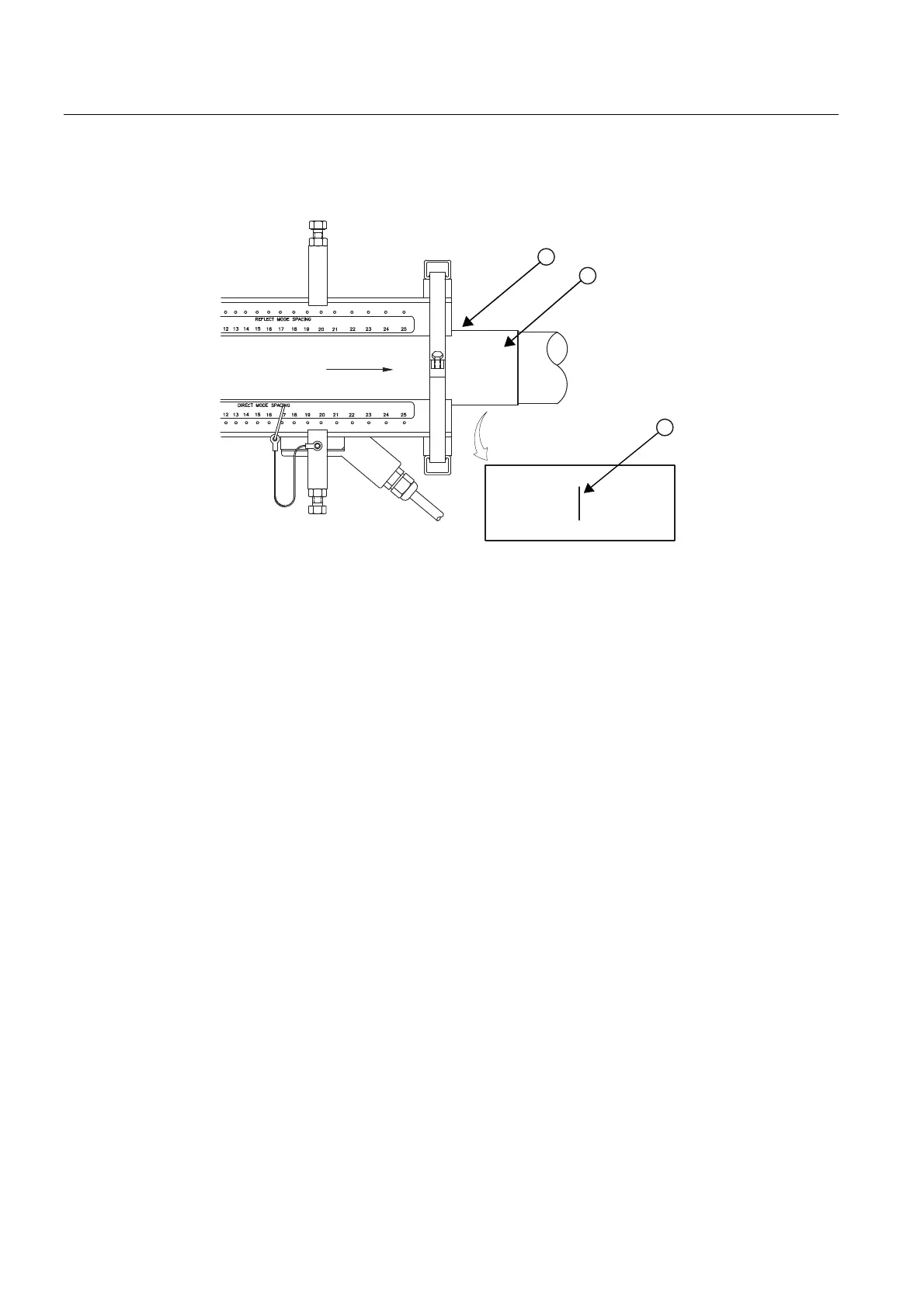

① Align tracks with Spacer Guide edge
② Mylar Spacer Guide
③ Halfway distance of Spacer Guide
Figure 5-24 Track Rail Alignment
4. Loosen the mounting straps enough to allow you to rotate the track assembly until the
center of one track aligns with the center line on the Spacer Guide and the center of the
other track aligns at the point where the Spacer Guide ends meet. The tracks should now
be 180° apart. Tighten both chains but not too tight.
