5.5 Sensor Installation
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
60 Operating Instructions, 01/2013, A5E02951520-AC
5. The drop down menu lists the following sensor selections:
– 1011 Universal
– 1011HP-T1 - Usable -40 to 120°C, recommended for Ø Temperature <40°C;
Standard.
– 1011HP-T2 - Usable -40 to 120°C, recommended for Ø Temperature >40°C - <80°C;
Named as high temperature.
– 1011HP-T3 - Usable -40 to 120°C, recommended for Ø Temperature >80°C <120°C;
special request.
– 991 Universal
Note
The mete
r will automatically recommend a sensor depending on the application data
that has been entered.
6. For this example, select the sensor model that appears on the sensor label then press
<ENTER>.




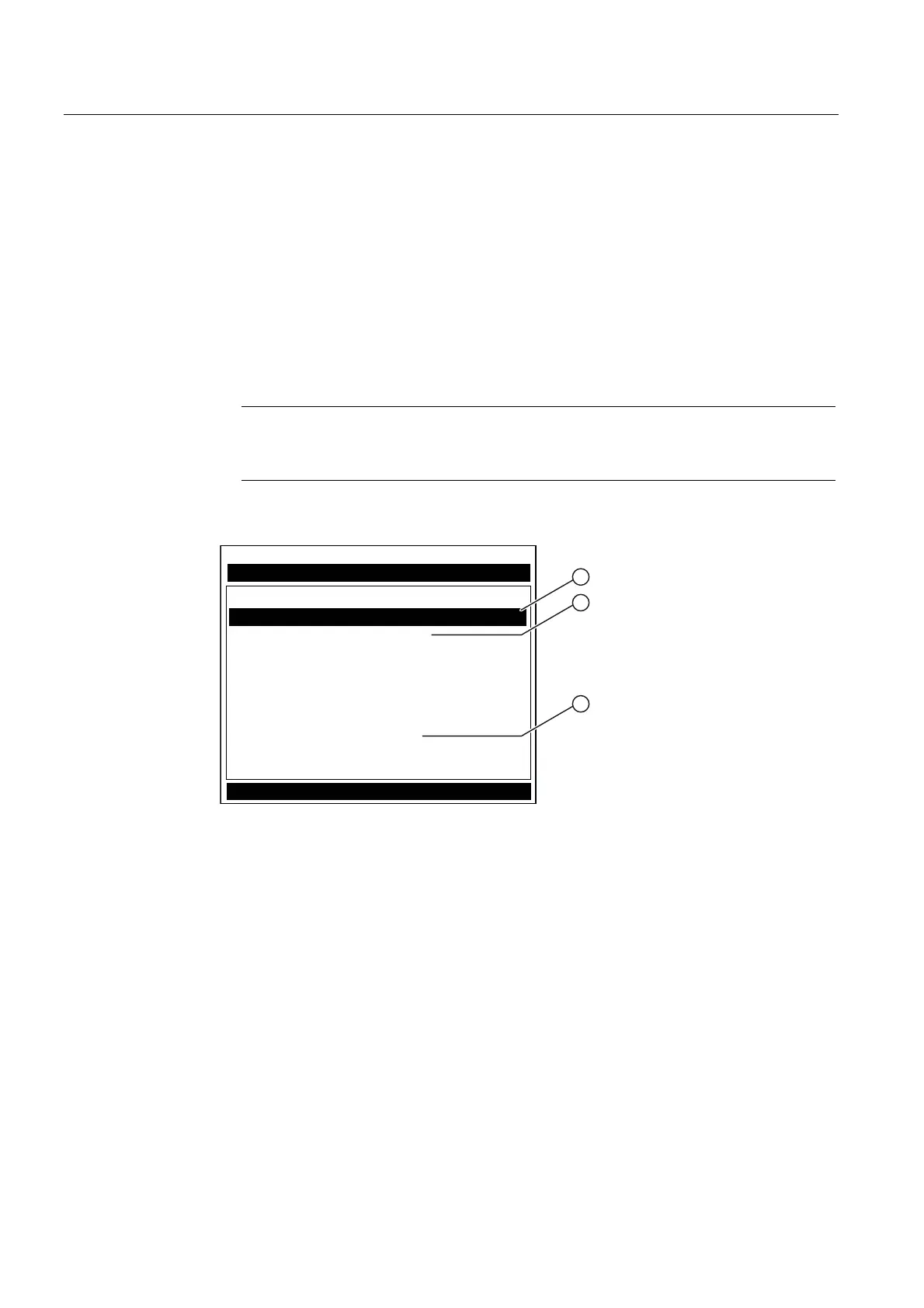

,QVWDOO6HQVRU
6LHPHQV 'XDO3DWK>@$%&
6FUROO/LVWDQGVHOHFWGHVLUHG0RGHO
6
HQVRU0RGHO +37
6HQVRU6L]H  '+
6HQVRU0RXQW0RGH
5HIOHFW
6SDFLQJ2IIVHW  1RPLQDO
1XPEHU,QGH[  
6SDFLQJ0HWKRG  6SDFHU%DU%1
/WQ9DXHLQ  
,QVWDOO&RPSOHWH 1R
(PSW\3LSH6HW  07<PDWLF
=HUR)ORZ$GMXVW  $FWXDO=HUR
,QVWDOO3DWK  
① Select based on type
② Select based on size
③ After sensor is mounted select "Install."
7. To select Sensor Size, press <Right Arrow>. Scroll to select the sensor size that matches
the size indicated on the sensor label. Press <ENTER>.
8. At [Sensor Mount Mode], press the <Right Arrow>. Scroll to select [Reflect] or [Direct]
mount and then press <ENTER>.
9. IMPORTANT: Record Spacing Method and Number Index. This data will be used to
mount the sensors.
10. Sensors can now be mounted. Refer to Sensor Installation mounting procedures and
select the mounting mode desired.
11. After sensors are mounted scroll to [Install Complete] and select [Install].
