Chapter 5
Setup and Configuration
RUGGEDCOM ROS
User Guide
130 Viewing a List of VLANs
199.85.245.1/25
199.85.245.128/26
199.85.245.192/26
1
4
2
3
5

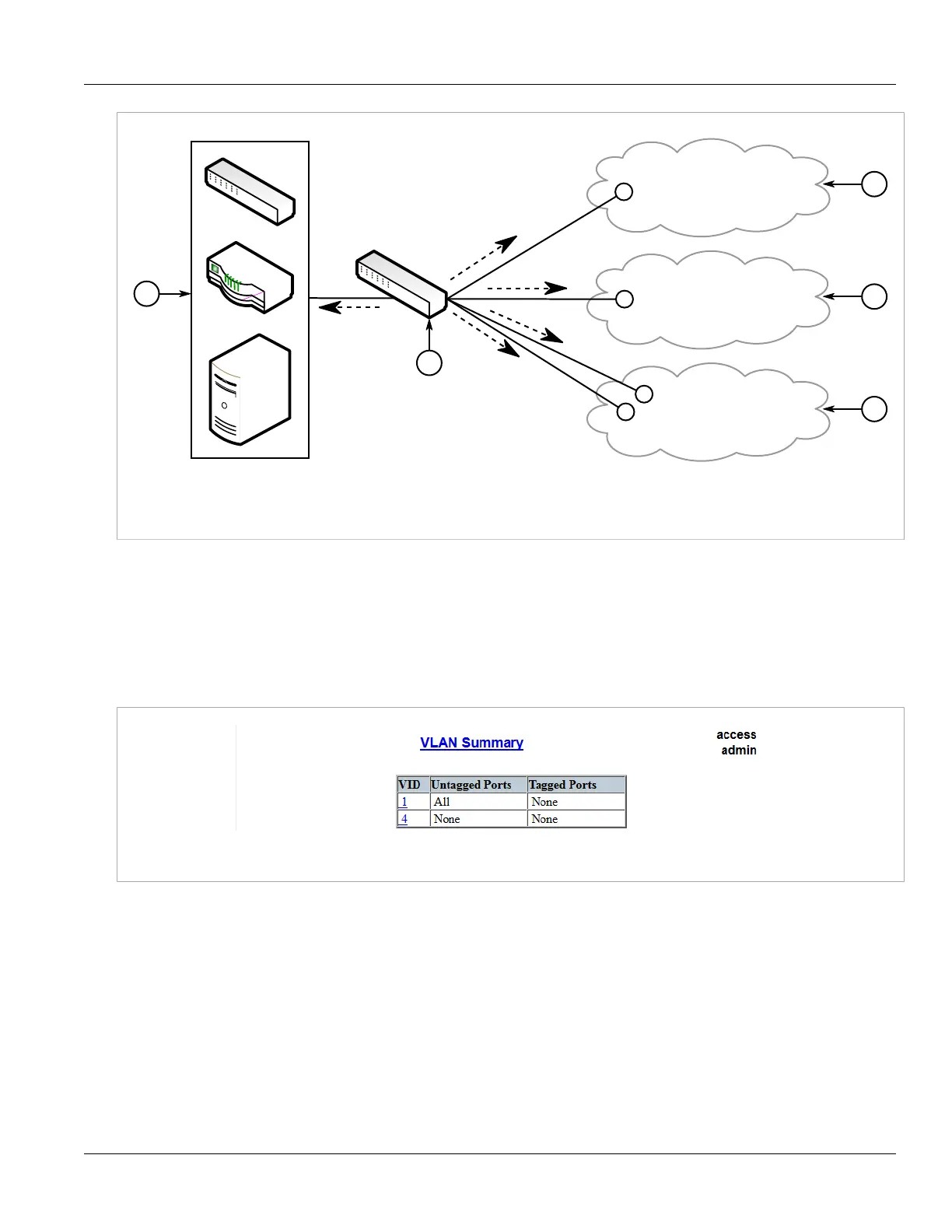

Figure 81: Inter-VLAN Communications
1. Server, Router or Layer 3 Switch 2. Switch 3. VLAN 2 4. VLAN 3 5. VLAN 4
Section 5.2.2
Viewing a List of VLANs
To view a list of all VLANs, whether they were created statically, implicitly or dynamically, navigate to Virtual
LANs » View VLAN Summary. The VLAN Summary table appears.
Figure 82: VLAN Summary Table
If a VLANs are not listed, add static VLANs as needed. For more information, refer to Section 5.2.5.2, “Adding a
Static VLAN”.
Section 5.2.3
Configuring VLANs Globally
To configure global settings for all VLANs, do the following:
1. Navigate to Virtual LANs » Configure Global VLAN Parameters. The Global VLAN Parameters form
appears.
