RUGGEDCOM ROS
User Guide
Chapter 5
Setup and Configuration
Viewing a Summary of Multicast Groups 209
• Make sure IGMP is properly configured on the device. For more information, refer to Section 5.9.4,
“Configuring IGMP”.
Section 5.9.3
Viewing a Summary of Multicast Groups
To view a summary of all multicast groups, navigate to Multicast Filtering » View Multicast Group Summary.
The Multicast Group Summary table appears.

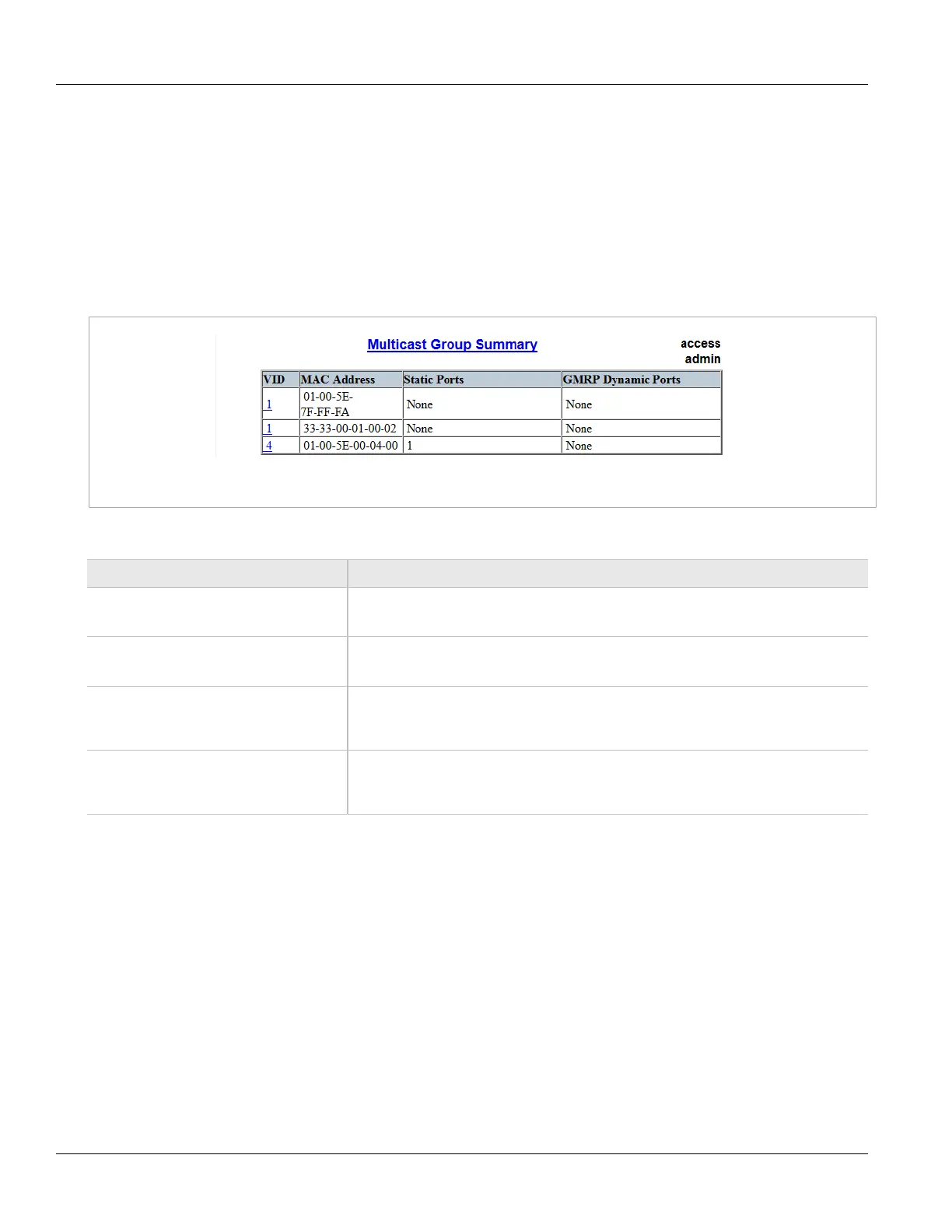

Figure 154: Multicast Group Summary Table
This table provides the following information:
Parameter Description
VID Synopsis: 0 to 65535
VLAN Identifier of the VLAN upon which the multicast group operates.
MAC Address Synopsis: ##-##-##-##-##-## where ## ranges 0 to FF
Multicast group MAC address.
Static Ports Synopsis: Any combination of numbers valid for this parameter
Ports that joined this group statically through static configuration in Static MAC Table and to
which the multicast group traffic is forwarded.
GMRP Dynamic Ports Synopsis: Any combination of numbers valid for this parameter
Ports that joined this group dynamically through GMRP Application and to which the
multicast group traffic is forwarded.
Section 5.9.4
Configuring IGMP
To configure the IGMP, do the following:
1. Make sure one or more static VLANs exist with IGMP enabled. For more information, refer to Section 5.2.5,
“Managing Static VLANs”.
2. Navigate to Multicast Filtering » Configure IGMP Parameters. The IGMP Parameters form appears.
