RUGGEDCOM ROS
User Guide
Chapter 5
Setup and Configuration
Configuring VLANs for Specific Ethernet Ports 131
4
3
1
2

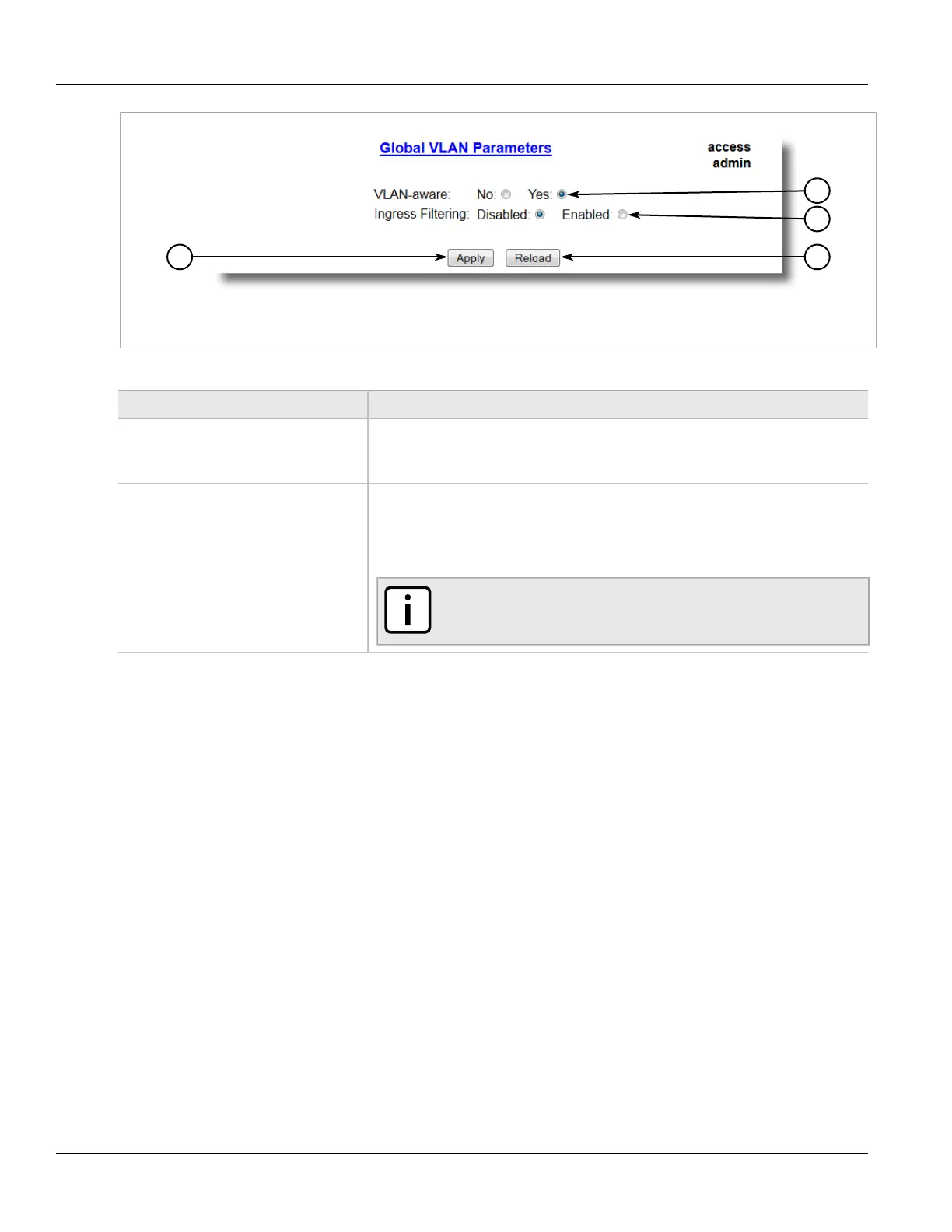

Figure 83: Global VLAN Parameters Form
2. Configure the following parameter(s) as required:
Parameter Description
VLAN-aware Synopsis: { No, Yes }
Default: Yes
Set either VLAN-aware or VLAN-unaware mode of operation.
Ingress Filtering Synopsis: { Disabled, Enabled }
Default: Disabled
Enables or disables VLAN ingress filtering on all ports. When enabled, any tagged
packet arriving at a port, which is not a member of a VLAN with which that packet is
associated, is dropped. When disabled, packets are not dropped.
NOTE
Ingress filtering has no effect when ports are in either VLAN-unaware mode
or Q-in-Q mode.
3. Click Apply.
Section 5.2.4
Configuring VLANs for Specific Ethernet Ports
When a VLAN ID is assigned to an Ethernet port, the VLAN appears in the VLAN Summary table where it can be
further configured.
To configure a VLAN for a specific Ethernet port, do the following:
1. Navigate to Virtual LANs » Configure Port VLAN Parameters. The Port VLAN Parameters table appears.
