RUGGEDCOM ROS
User Guide
Chapter 3
Device Management
Viewing CPU Diagnostics 45
Parameter Description
Shows the type, part number, and revision level of the hardware.
Section 3.2
Viewing CPU Diagnostics
To view CPU diagnostic information useful for troubleshooting hardware and software performance, navigate to
Diagnostics » View CPU Diagnostics. The CPU Diagnostics form appears.
2
11
1
3
4
5
6
7
8
9

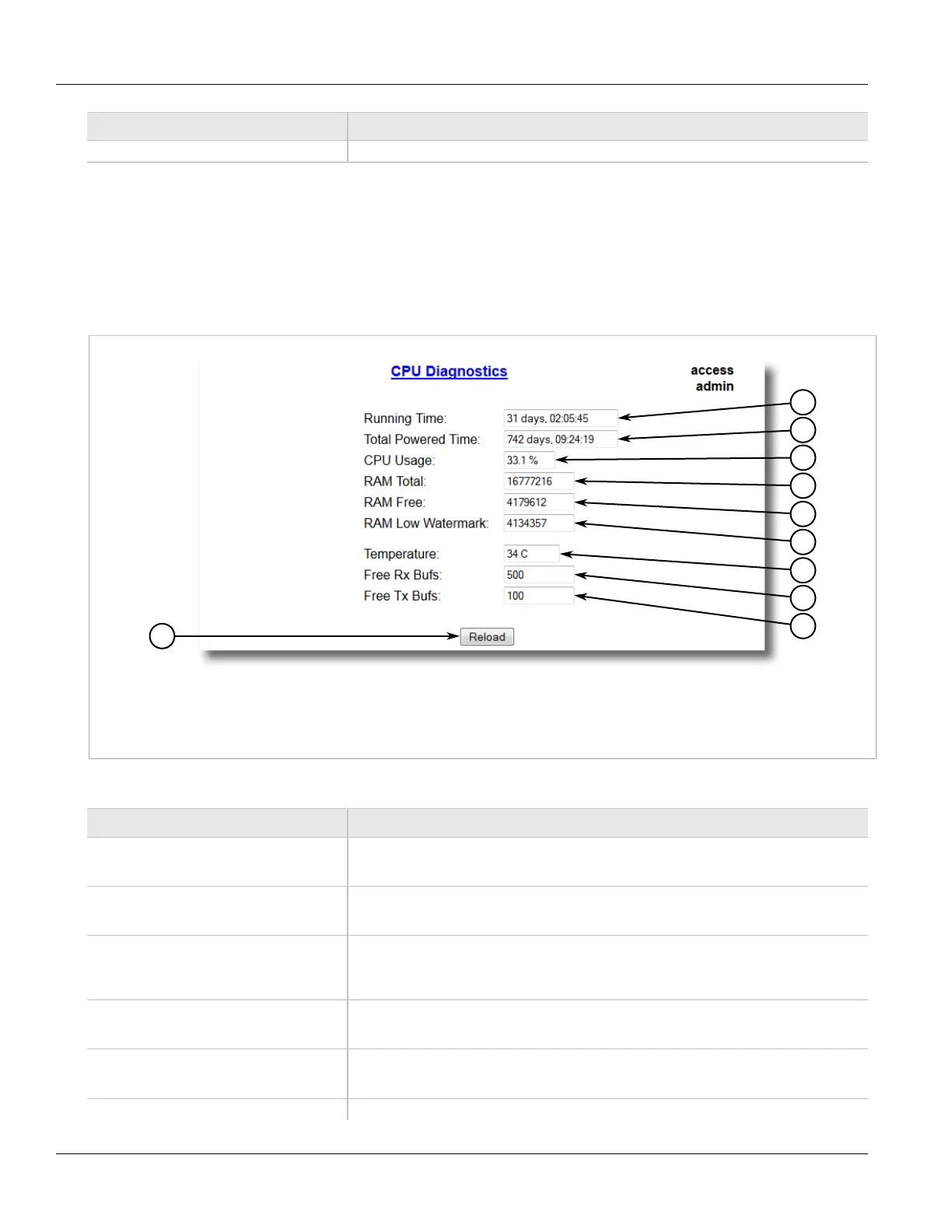

Figure 9: CPU Diagnostics Form
1. Running Time Box 2. Total Powered Time Box 3. CPU Usage Box 4. RAM Total Box 5. RAM Free Box 6. RAM Low Watermark
Box 7. Temperature Box 8. Free Rx Bufs Box 9. Free Tx Bufs Box 10. Reload Button
This screen displays the following information:
Parameter Description
Running Time Synopsis: DDDD days, HH:MM:SS
The amount of time since the device was last powered on.
Total Powered time Synopsis: DDDD days, HH:MM:SS
The cumulative powered up time of the device.
CPU Usage Synopsis: 0.0 to 100.0%
The percentage of available CPU cycles used for device operation as measured over the
last second.
RAM Total Synopsis: 0 to 4294967295
The total size of RAM in the system.
RAM Free Synopsis: 0 to 4294967295
The total size of RAM still available.
RAM Low Watermark Synopsis: 0 to 4294967295
