70 Configuring Link Detection
5
6
4
3
2
1

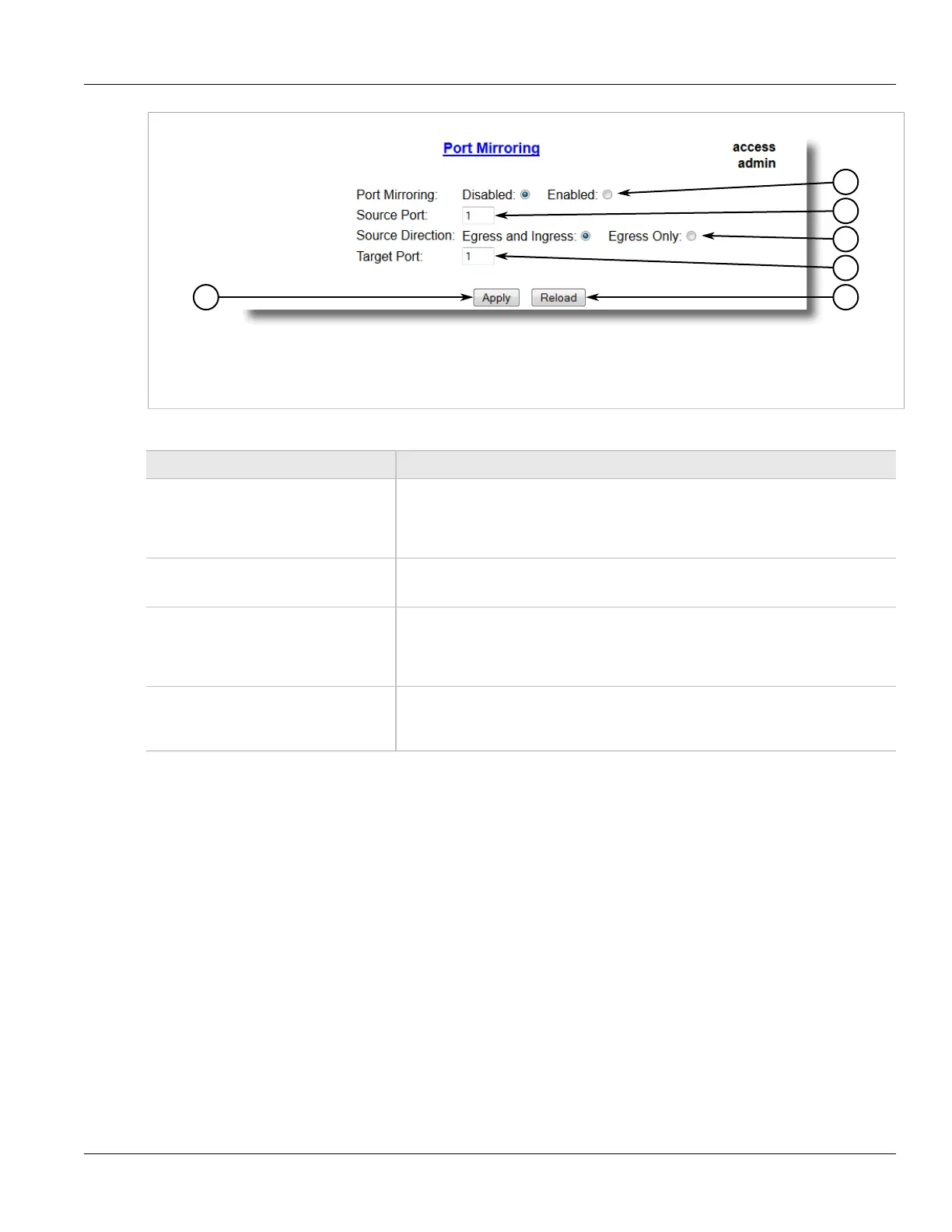

Figure 29: Port Mirroring Form
1. Port Mirroring Box 2. Source Port Box 3. Target Port Box 4. Apply Button 5. Reload Button
2. Configure the following parameter(s) as required:
Parameter Description
Port Mirroring Synopsis: { Disabled, Enabled }
Default: Disabled
Enabling port mirroring causes all frames received and transmitted by the source port(s)
to be transmitted out of the target port.
Source Port Synopsis: Any combination of numbers valid for this parameter
The port(s) being monitored.
Source Direction Synopsis: Egress and Ingress, Egress Only
Default: Egress and Ingress
Specifies monitoring whether both egress and ingress traffics or only egress traffic of the
source port.
Target Port Synopsis: 1 to maximum port number
Default: 1
The port where a monitoring device should be connected.
3. Click Apply.
Section 3.6.10
Configuring Link Detection
To configure link detection, do the following:
1. Navigate to Ethernet Ports » Configure Link Detection. The Link Detection form appears.
