68 Configuring Port Rate Limiting
Section 3.6.8
Configuring Port Rate Limiting
To configure port rate limiting, do the following:
1. Navigate to Ethernet Ports » Configure Port Rate Limiting. The Port Rate Limiting table appears.

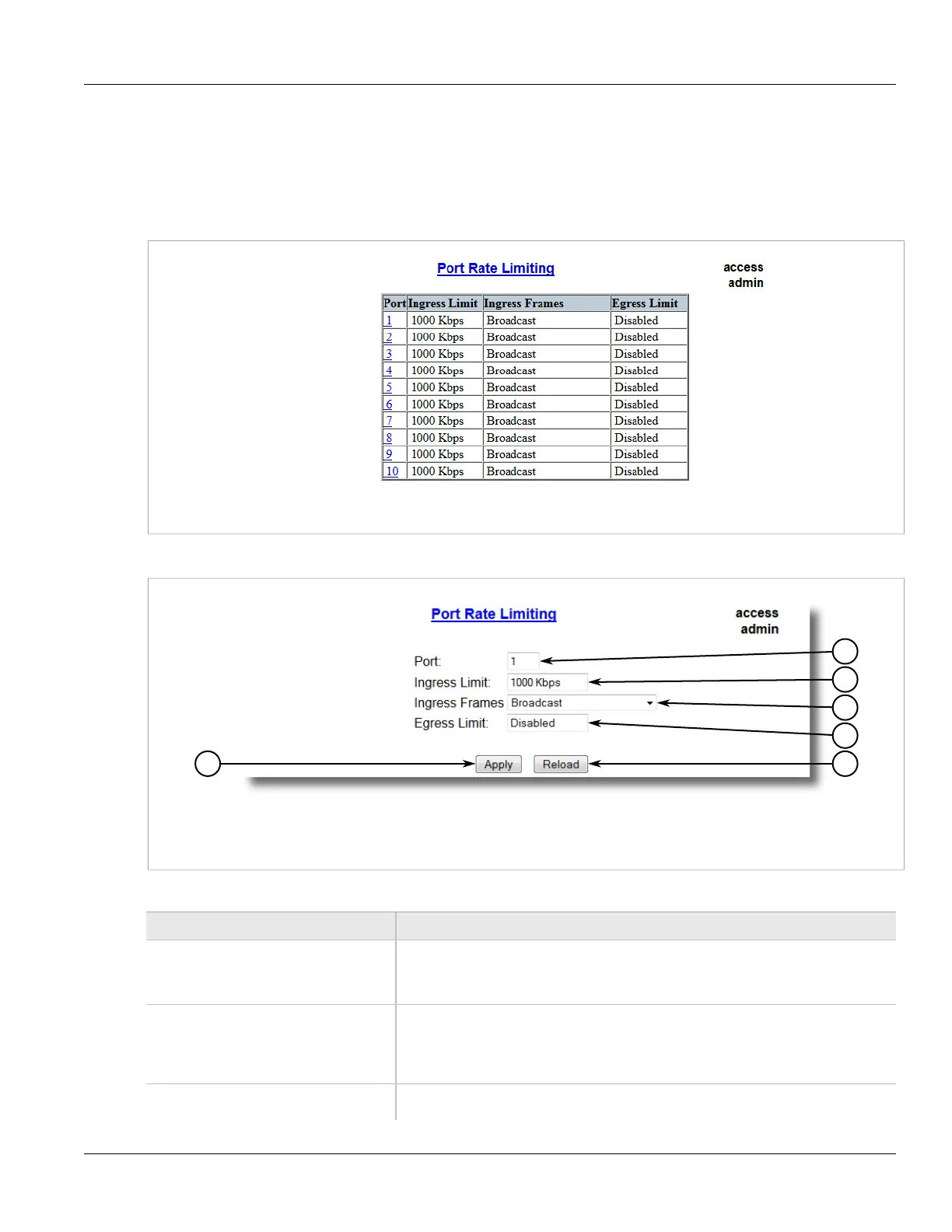

Figure 27: Port Rate Limiting Table
2. Select an Ethernet port. The Port Rate Limiting form appears.
65
4
3
2
1
Figure 28: Port Rate Limiting Form
1. Port Box 2. Ingress Limit Box 3. Ingress Frames List 4. Egress Limit Box 5. Apply Button 6. Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Port Synopsis: 1 to maximum port number
Default: 1
The port number as seen on the front plate silkscreen of the switch.
Ingress Limit Synopsis: 62 to 256000 Kbps or { Disabled }
Default: 1000 Kbps
The rate after which received frames (of the type described by the ingress frames
parameter) will be discarded by the switch.
Ingress Frames Synopsis: { Broadcast, Bcast&Mcast, Bcast&Mcast&FloodUcast, Bcast&FloodUcast,
FloodUcast, All }
