Configuring GMRP Globally 211
Section 5.9.5
Configuring GMRP Globally
To configure global settings for GMRP, do the following:
1. Navigate to Multicast Filtering » Configure Global GMRP Parameters. The Global GMRP Parameters
form appears.
54
2
1
3

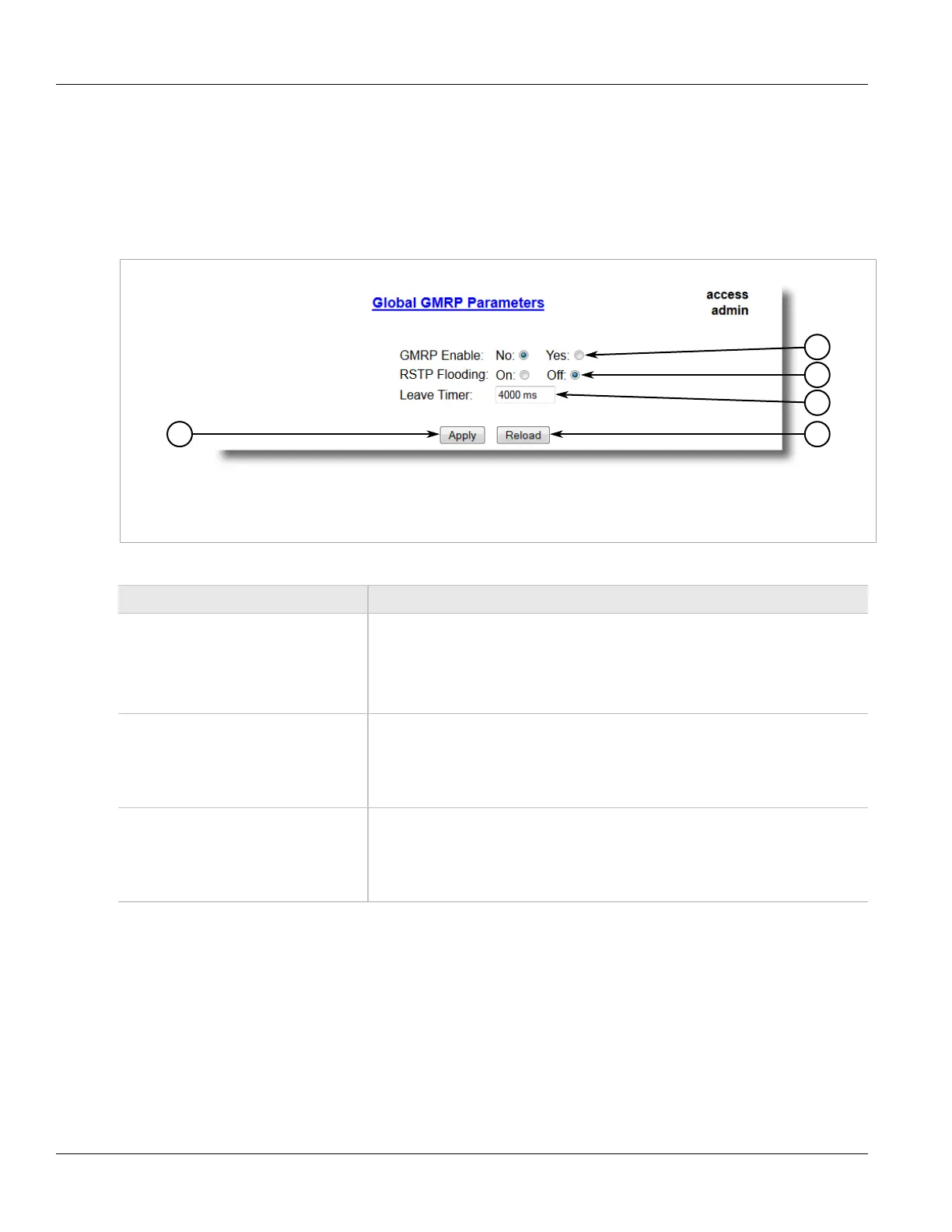

Figure 156: Global GMRP Parameters Form
1. GMRP Enable Options 2. RSTP Flooding Options 3. Leave Timer Box 4. Apply Button 5. Reload Button
2. Configure the following parameter(s) as required:
Parameter Description
GMRP Enable Synopsis: { No, Yes }
Default: No
Globally enable or disable GMRP.
When GMRP is globally disabled, GMRP configurations on individual ports are ignored.
When GMRP is globally enabled, each port can be individually configured.
RSTP Flooding Synopsis: { On, Off }
Default: Off
This parameter specifies whether multicast streams will be flooded out of all RSTP non-
edge ports upon topology change detection. Such flooding is desirable, if guaranteed
multicast stream delivery after topology change is most important.
Leave Timer Synopsis: 600 to 300000 ms
Default: 4000 ms
Time (milliseconds) to wait after issuing Leave or LeaveAll before removing registered
multicast groups. If Join messages for specific addresses are received before this timer
expires, the addresses will be kept registered.
3. Click Apply.
Section 5.9.6
Configuring GMRP for Specific Ethernet Ports
To configure GMRP for a specific Ethernet port, do the following:
1. Make sure the global settings for GMRP have been configured. For more information, refer to Section 5.9.5,
“Configuring GMRP Globally”.
