132 Configuring VLANs for Specific Ethernet Ports

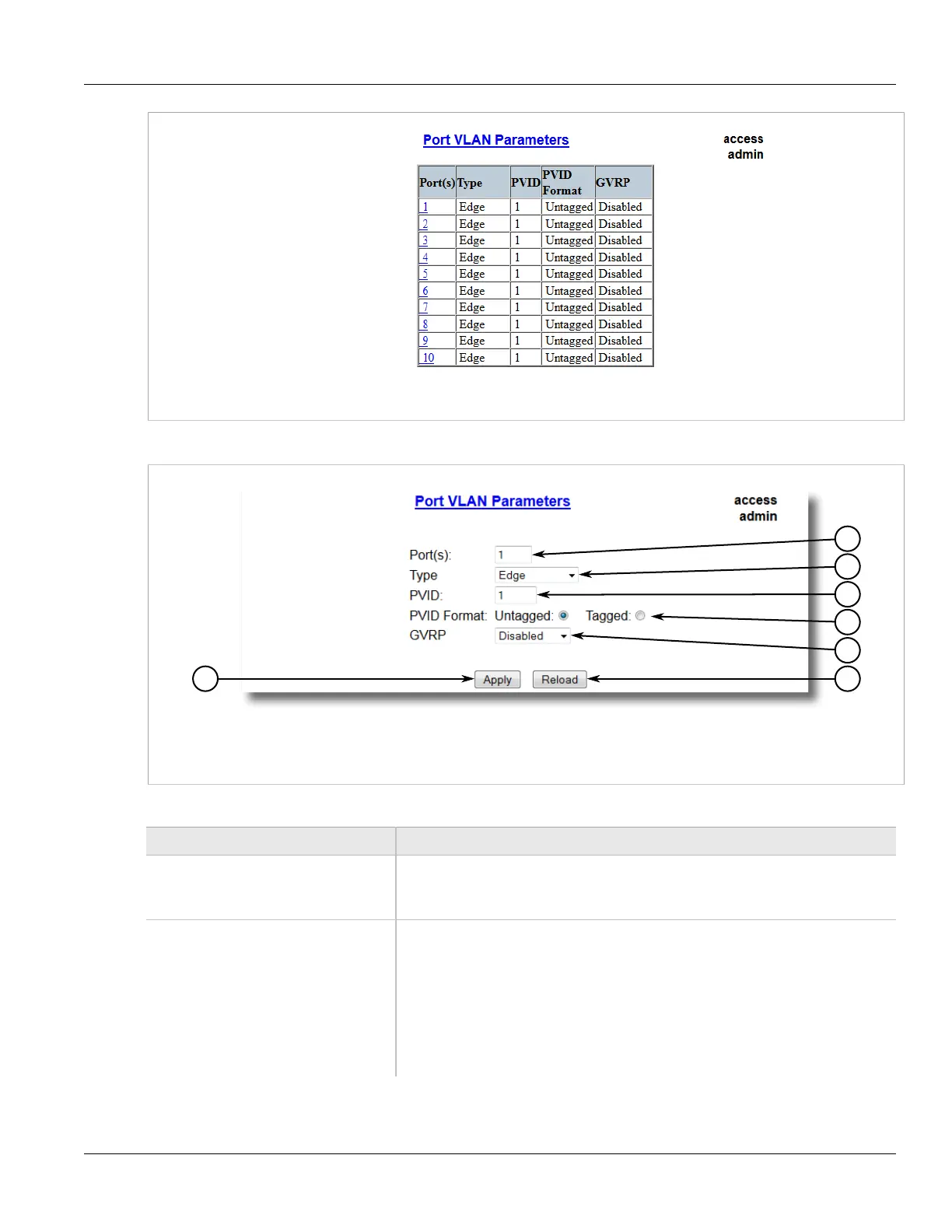

Figure 84: Port VLAN Parameters Table
2. Select a port. The Port VLAN Parameters form appears.
76
4
3
2
1
5
Figure 85: Port VLAN Parameters Form
1. Port(s) Box 2. Type List 3. PVID Box 4. PVID Format Options 5. GVRP List 6. Apply Button 7. Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Port(s) Synopsis: Any combination of numbers valid for this parameter
The port number as seen on the front plate silkscreen of the switch (or a list of ports, if
aggregated in a port trunk).
Type Synopsis: { Edge, Trunk, PVLANEdge, QinQ }
Default: Edge
This parameter specifies how the port determines its membership in VLANs. There are
few types of ports:
• Edge - the port is only a member of one VLAN (its native VLAN specified by the PVID
parameter).
• Trunk - the port is automatically a member of all configured VLANs. Frames
transmitted out of the port on all VLANs except the port's native VLAN will be always
tagged. It can also be configured to use GVRP for automatic VLAN configuration.
