RUGGEDCOM ROS
User Guide
Chapter 5
Setup and Configuration
Configuring Classes of Service for Specific Ethernet Ports 169

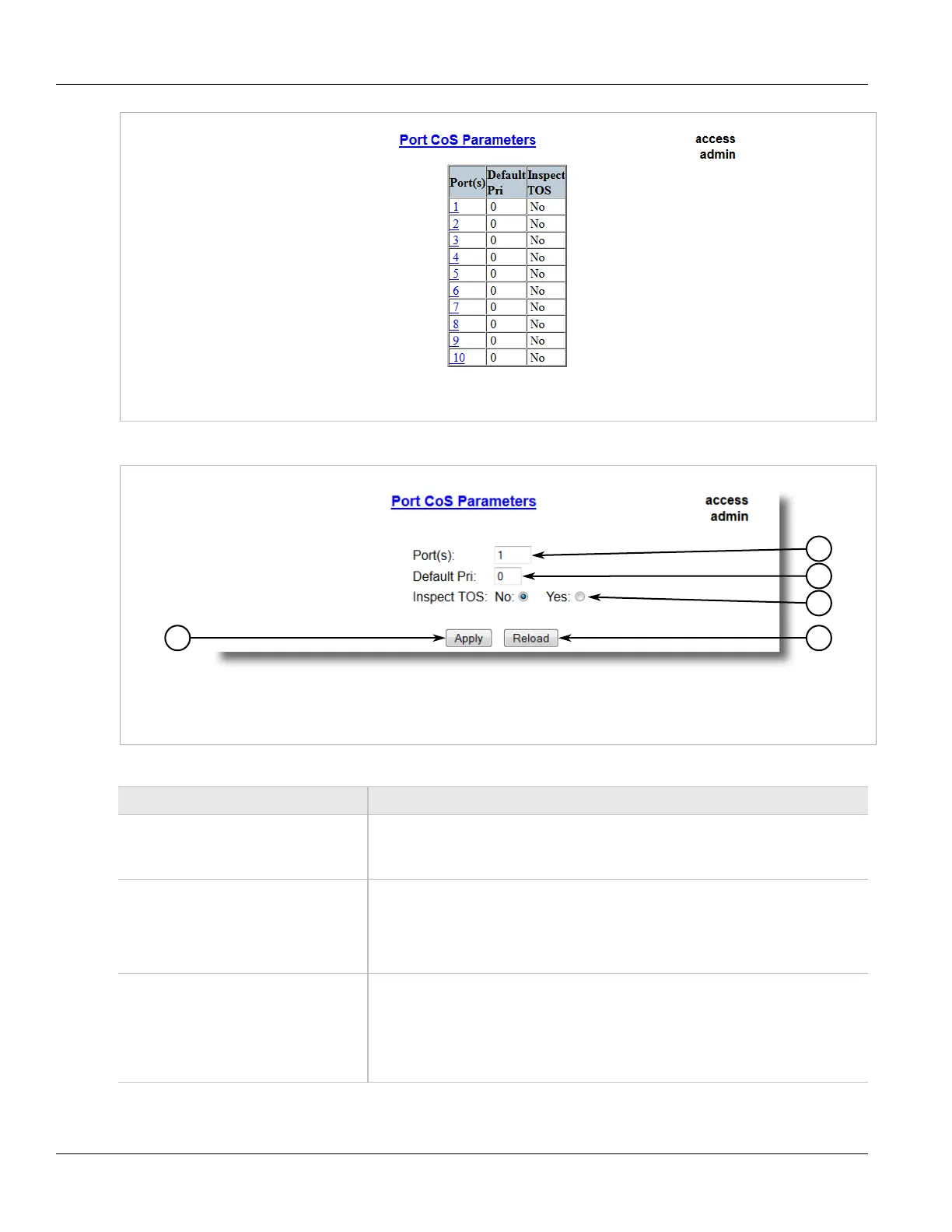

Figure 109: Port CoS Parameters Table
2. Select an Ethernet port. The Port CoS Parameters form appears.
Figure 110: Port CoS Parameters Form
1. Port(s) Box 2. Default Pri Box 3. Inspect TOS Options 4. Apply Button 5. Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Port(s) Synopsis: Any combination of numbers valid for this parameter
The port number as seen on the front plate silkscreen of the switch (or a list of ports, if
aggregated in a port trunk).
Default Pri Synopsis: 0 to 7
Default: 0
This parameter allows to prioritize frames received on this port that are not prioritized
based on the frames contents (e.g. priority field in the VLAN tag, DiffServ field in the IP
header, prioritized MAC address).
Inspect TOS Synopsis: { No, Yes }
Default: No
This parameters enables or disables parsing of the Type-Of-Service (TOS) field in the
IP header of the received frames to determine what Class of Service they should be
assigned. When TOS parsing is enabled the switch will use the Differentiated Services
bits in the TOS field.
