Siemens RUGGEDCOM ROS User Manual

RUGGEDCOM ROS
User Guide
Chapter 5
Setup and Configuration
Adding a Static MAC Address 177
1

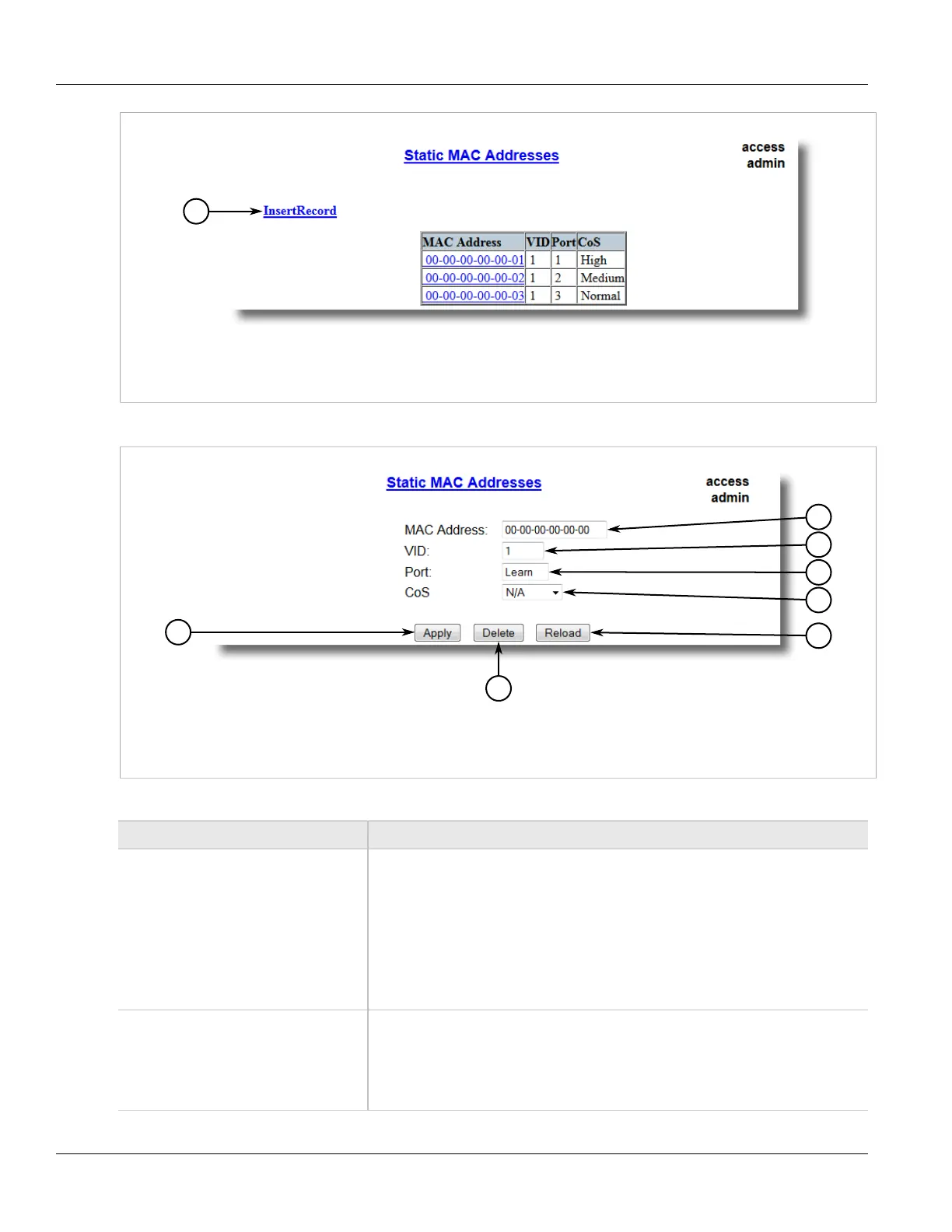

Figure 120: Static MAC Addresses Table
1. InsertRecord
2. Click InsertRecord. The Static MAC Addresses form appears.
7
5
6
4
3
2
1
Figure 121: Static MAC Addresses Form
1. MAC Address Box 2. VID Box 3. Port Box 4. CoS List 5. Apply Button 6. Delete Button 7. Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
MAC Address Synopsis: ##-##-##-##-##-## where ## ranges 0 to FF
A MAC address learned by the switch.
Maximum of 6 wildcard characters may be used to specify a range of MAC addresses
allowed to be learned by the Port Security module (when Port Security is set to 'Static
MAC' mode). Wildcard must start from the right hand end and continuous.
Examples:
• 00-0A-DC-**-**-** means the entire MAC address space of RuggedCom.
• 00-0A-DC-12-3*-** means the range 00-0A-DC-12-30-00 to 00-0A-DC-12-3F-FF.
VID Synopsis: 1 to 4094 or { ANY }
Default: 1
VLAN Identifier of the VLAN upon which the MAC address operates.
Option ANY allows learning a MAC address through the Port Security module on any
VLAN's that are configured on the switch.
