Adding a Port Trunk 227

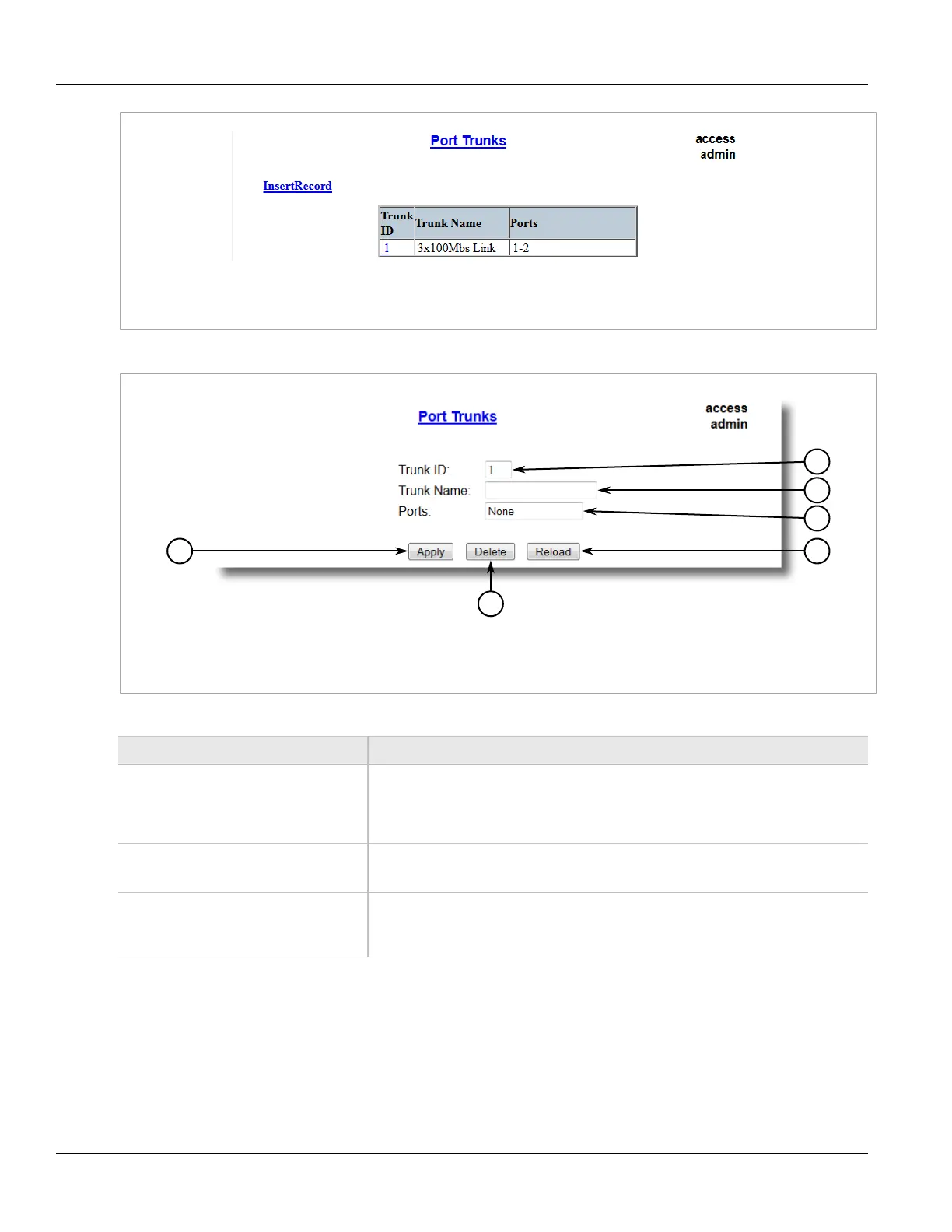

Figure 172: Port Trunks Table
1. InsertRecord
2. Click InsertRecord. The Port Trunks form appears.
Figure 173: Port Trunks
1. Trunk ID Box 2. Trunk Name Box 3. Ports Box 4. Apply Button 5. Delete Button 6. Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Trunk ID Synopsis: 1 to 2
Default: 1
Trunk number. It doesn't affect port trunk operation in any way and is only used for
identification.
Trunk Name Synopsis: Any 19 characters
Provides a description of the aggregated link purpose.
Ports Synopsis: Any combination of numbers valid for this parameter
Default: None
List of ports aggregated in the trunk.
4. Click Apply.
