66 Configuring an Ethernet Port

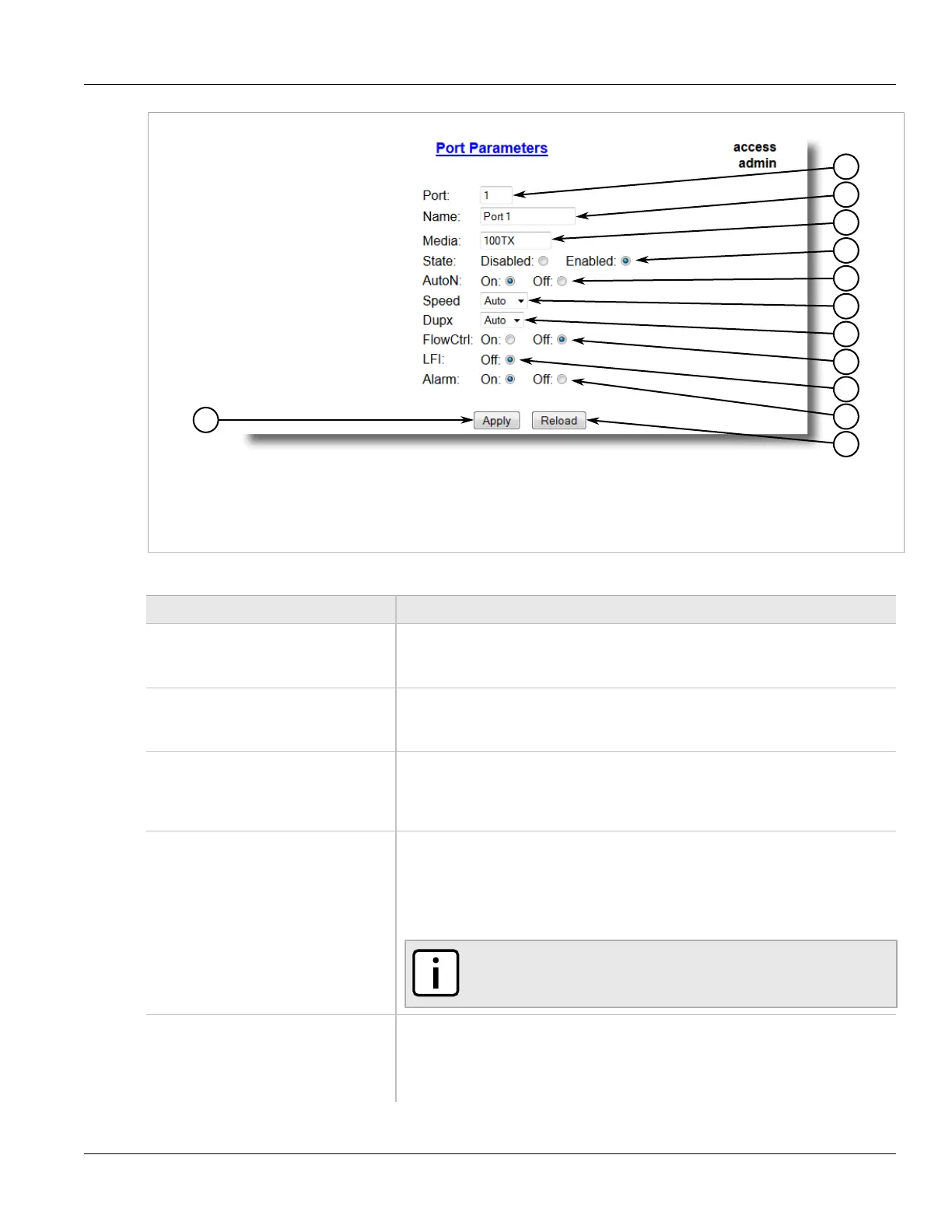

Figure 26: Port Parameters Form
1. Port Box 2. Name Box 3. Media Box 4. State Box 5. AutoN Box 6. Speed Box 7. Dupx Box 8. FlowCtrl Box 9. LFI
Box 10. Alarm Box 11. Apply Button 12. Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
Port Synopsis: 1 to maximum port number
Default: 1
The port number as seen on the front plate silkscreen of the switch.
Name Synopsis: Any 15 characters
Default: Port x
A descriptive name that may be used to identify the device connected on that port.
Media Synopsis: { 100TX, 10FL, 100FX, 1000X, 1000T, 802.11g, EoVDSL, 100TX Only,
10FL/100SX, 10GX }
Default: 100TX
The type of the port media.
State Synopsis: { Disabled, Enabled }
Default: Enabled
Disabling a port will prevent all frames from being sent and received on that port. Also,
when disabled link integrity signal is not sent so that the link/activity LED will never be
lit. You may want to disable a port for troubleshooting or to secure it from unauthorized
connections.
NOTE
Disabling a port whose media type is set to 802.11g disables the
corresponding wireless module.
AutoN Synopsis: { Off, On }
Default: On
Enable or disable IEEE 802.3 auto-negotiation. Enabling auto-negotiation results in
speed and duplex being negotiated upon link detection; both end devices must be auto-
negotiation compliant for the best possible results. 10Mbps and 100Mbps fiber optic
