Siemens S120 User Manual

Power Modules
4.3 Power Modules Blocksize (PM340)
AC Drive
154 Manual, (GH6), 04/2014, 6SL3097-4AL00-0BP4
4.3.6.3
Characteristics

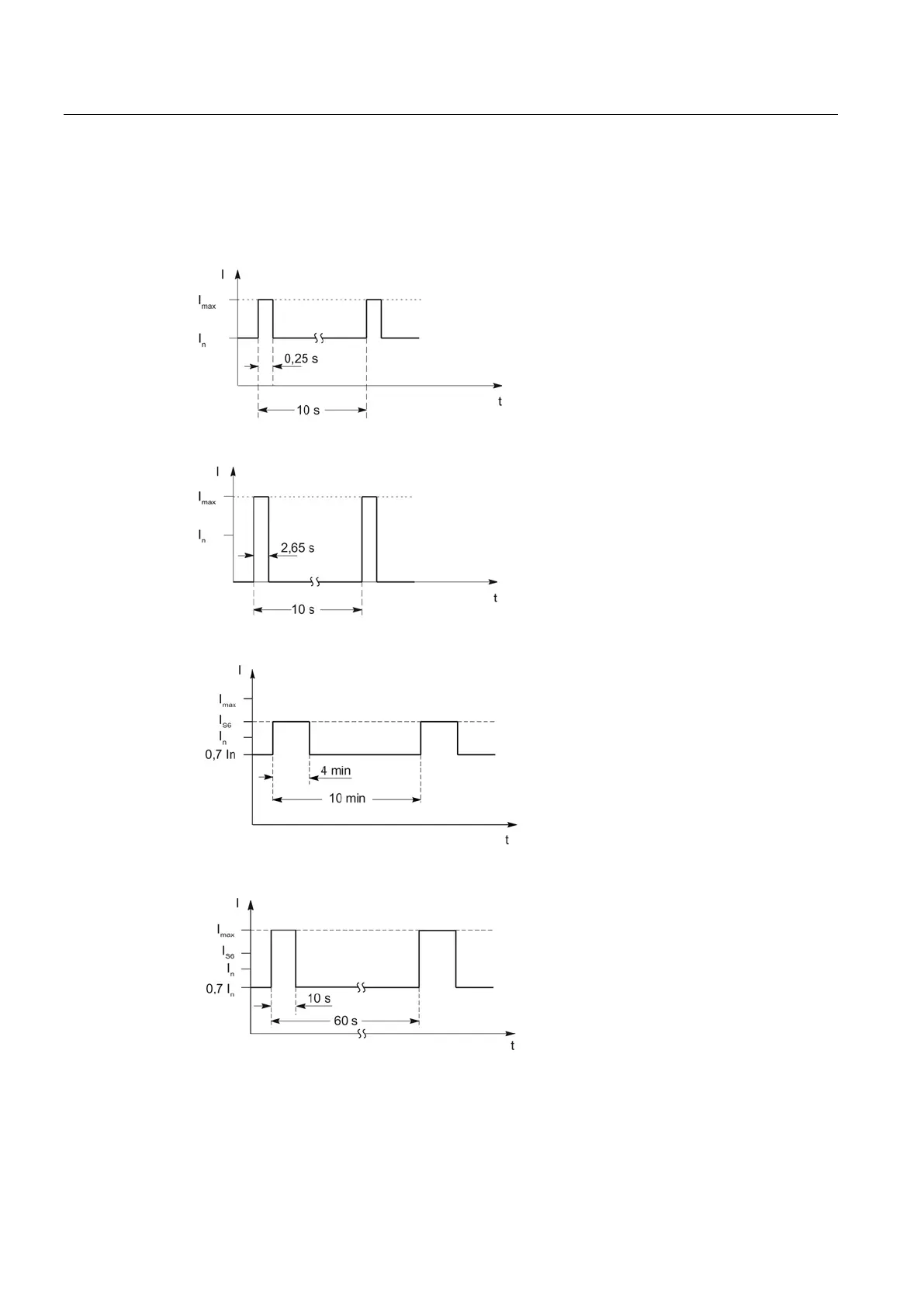

Overload capability
Figure 4-45 Duty cycle with initial load (for servo drives)
Figure 4-46 Duty cycle without initial load (for servo drives)
Figure 4-47 S6 duty cycle with initial load (for servo drives)
Figure 4-48 Duty cycle with initial load (for servo drives)

Siemens S120 Specifications

General

Communication interfaces	PROFINET, PROFIBUS, Ethernet
Protection features	Overcurrent, overvoltage, overtemperature, short circuit
Storage temperature range	-25°C to +70°C
Relative humidity	5 to 95% (non-condensing)
Enclosure rating	IP20
Cooling method	Air cooling
Operating temperature range	0 to +55 °C
