Power Modules
4.4 Power Modules Chassis
AC Drive
162 Manual, (GH6), 04/2014, 6SL3097-4AL00-0BP4
4.4.3.2
Connection example

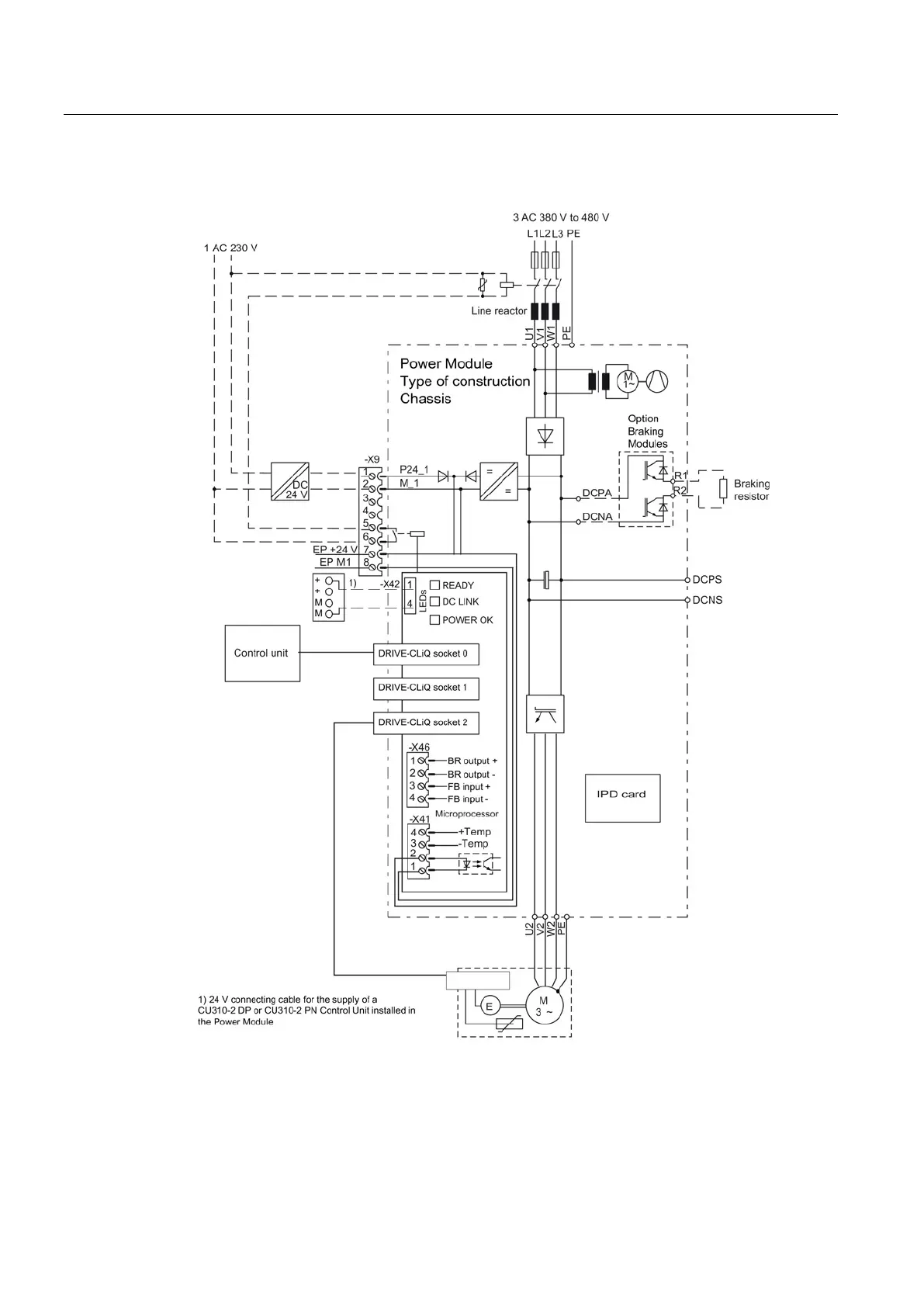

Figure 4-59 Connection example: Power Module chassis
