SCALANCE network components
4.7 SCALANCE M industry router
Industrial Ethernet
248 System Manual, 09/2019, C79000-G8976-C242-10

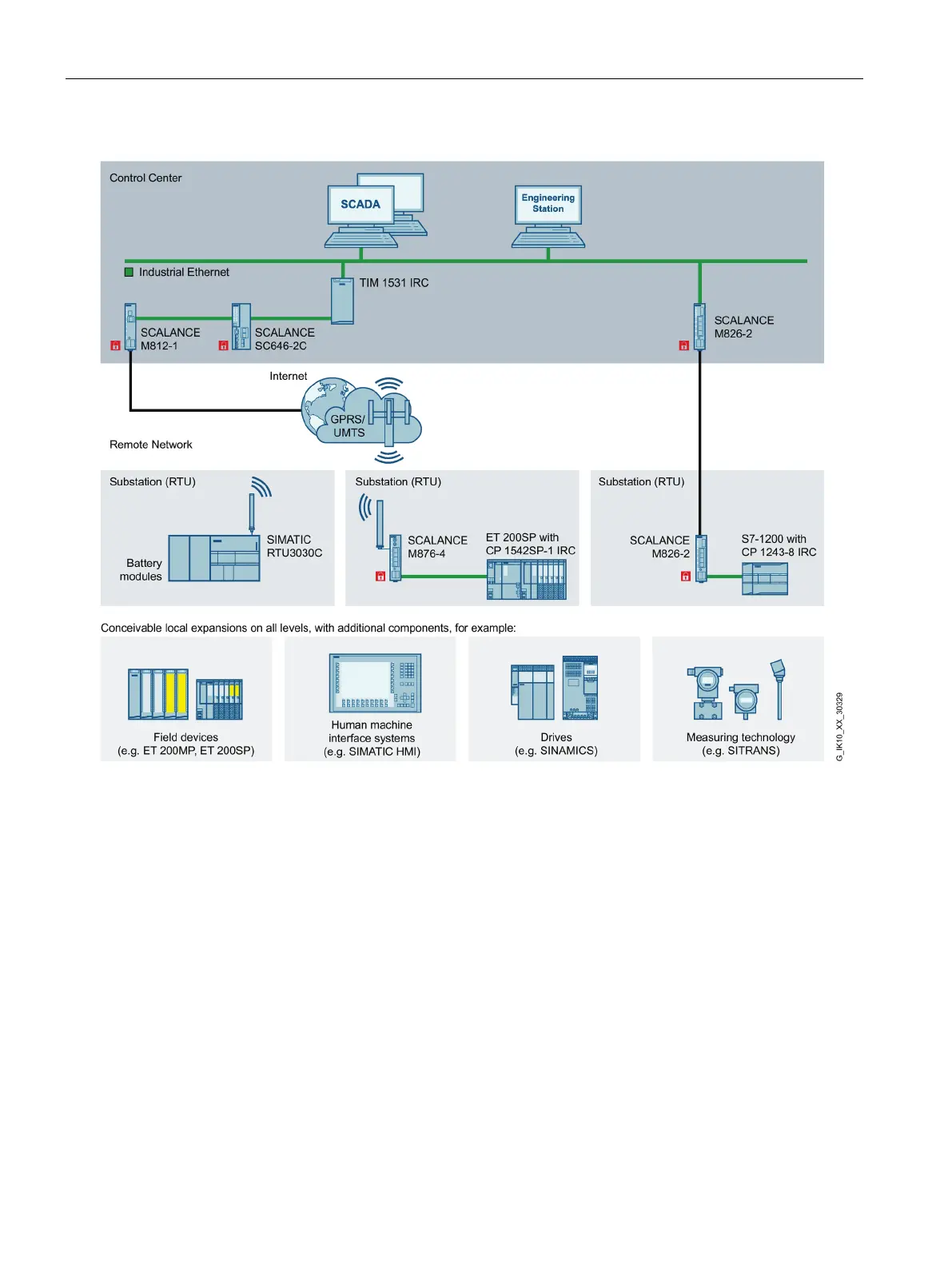

Figure 4-45 Example of a topology for using the SCALANCE M-800
