7.5 CP 1628
Industrial Ethernet
306 System Manual, 09/2019, C79000-G8976-C242-10
7.5 CP 1628
Description

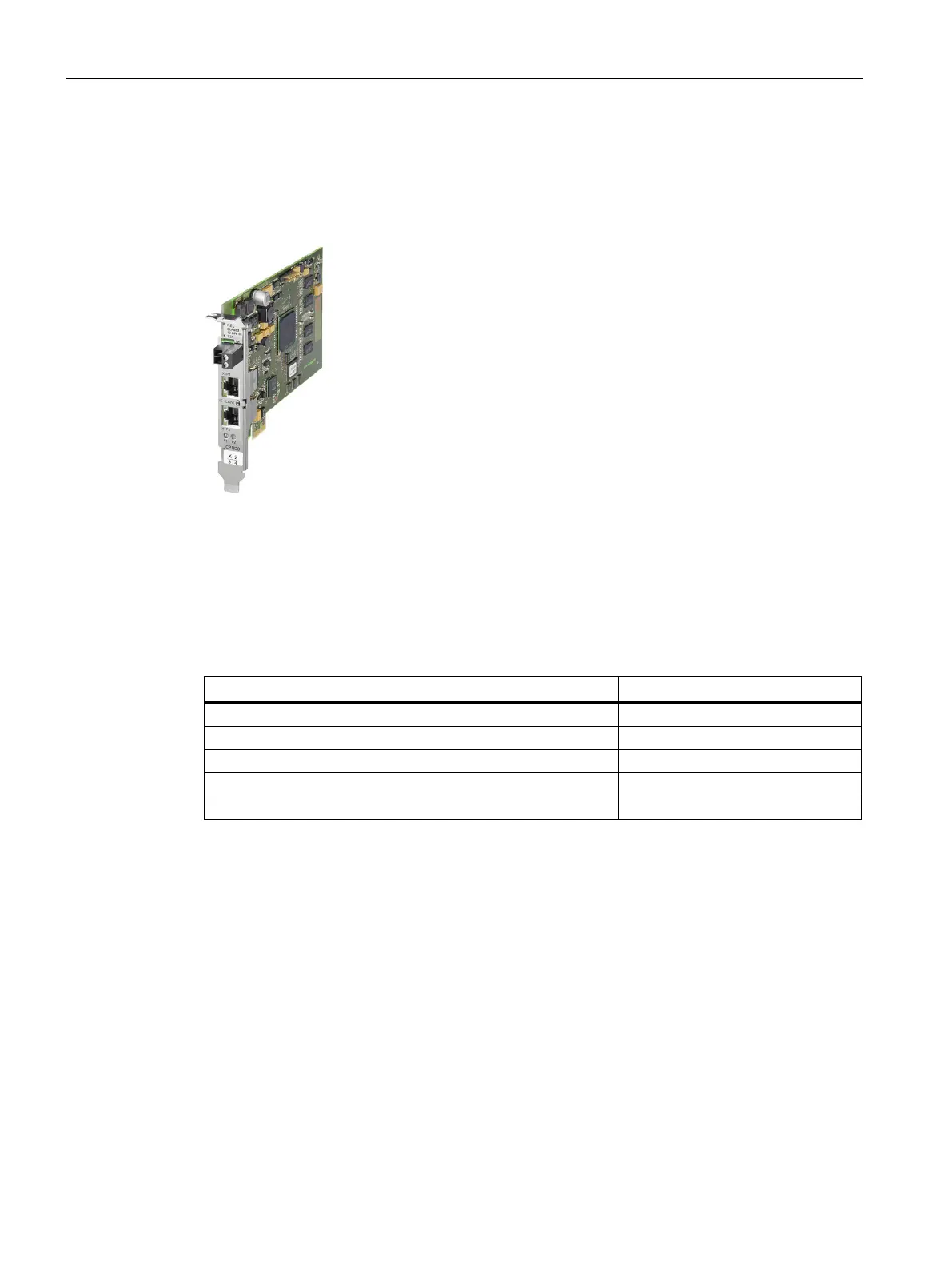

Figure 7-6 CP 1628
The CP 1628 is a PCI Express card with its own microprocessor and integrated 2-port switch
for connecting PCs and SIMATIC PGs/PCs to Industrial Ethernet. PNIO is not supported by
this module.
Features
CP 1628
Required slot on the PC
PCI Express x1
Number and type of the interfaces for Industrial Ethernet
2x RJ45
Gigabit Ethernet
●
Own microprocessor
●
Optional external power supply 12 ... 24 VDC
●
Functions
● Up to 512 connections can be configured at one time
● Transmission rates 10/100/1000 Mbit/s (half/full duplex)
● Autosensing, autocrossover and autonegotiation
● Time-of-day synchronization
● DCP
● Network management and diagnostics using SNMP

Siemens SIMATIC NET Specifications

General

Category	Industrial Communication Software
Manufacturer	Siemens
Operating Systems	Windows, Linux
Protocols Supported	PROFIBUS, PROFINET, OPC UA
Compatibility	Siemens PLCs, Third-party devices with supported protocols
