Siemens SIMATIC NET System Manual

Communications processors for SIMATIC S7
8.7 Communication module TIM 1531 IRC
Industrial Ethernet
System Manual, 09/2019, C79000-G8976-C242-10
337

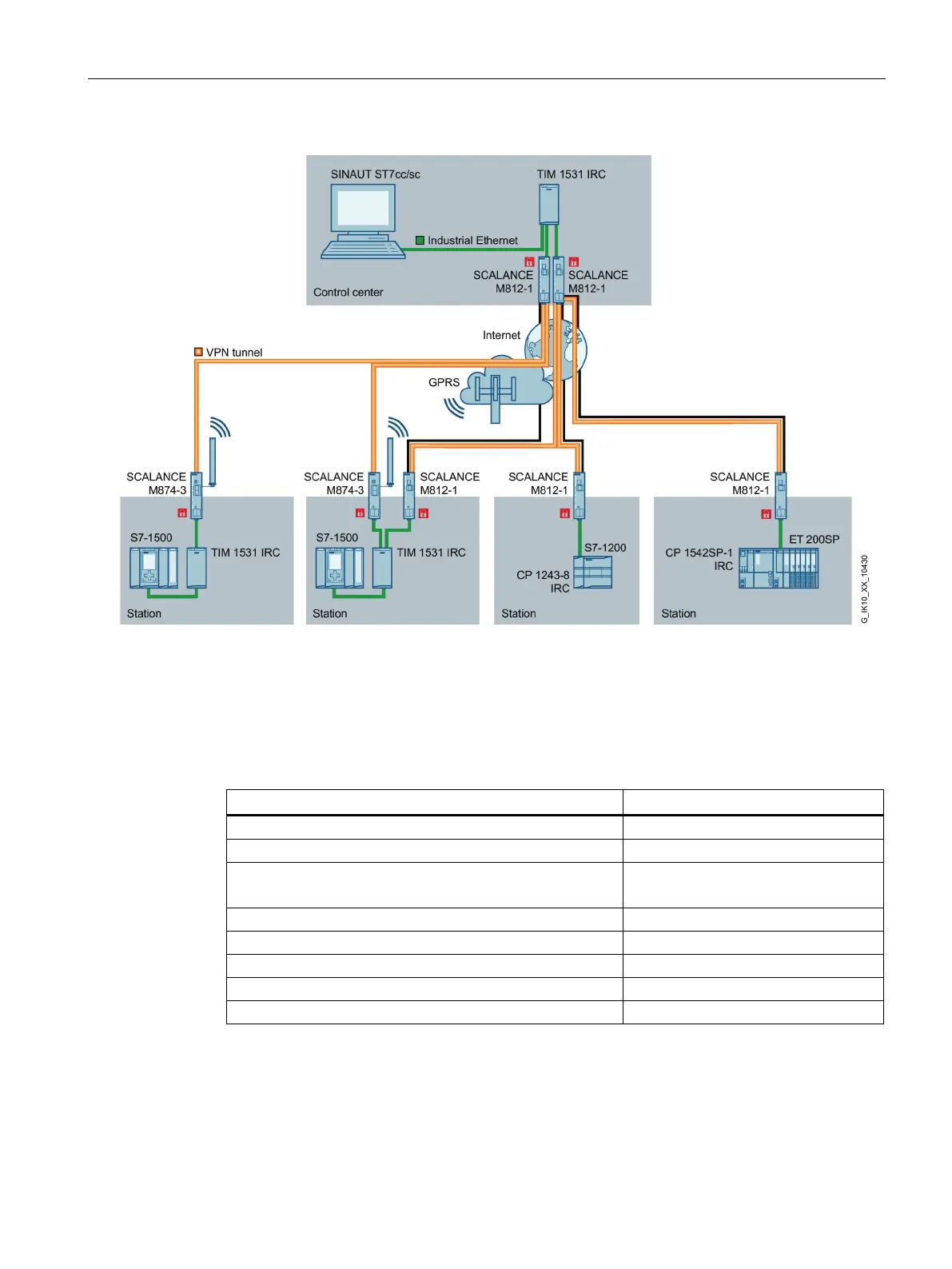

Figure 8-14 Example of a topology: Connection of telecontrol stations on the basis of S7-1500 with TIM 1531 IRC to a
TeleControl control center
Features
The TIM 1531 IRC offer the features listed in the table:
TIM 1531 IRC
RS 232 connections for external data transfer
1x D-sub 9-pin
Connections for Industrial Ethernet
3x RJ45 (switched)
Transmission rate 1x 1000 Mbps
2x 10/100 Mbps
External power supply
24 V DC via 2-pin plug-in terminal strip
Number of TIMs per S7-1500
1
Number of TeleControl connections
128
C-PLUG
-
SIMATIC Memory Card (SMC)
Optional
● Suitable / available or according to the specified standard
