Siemens SINAMICS S120 - Dimension Drawings

Line Connection Booksize
2.11 Line reactors for Smart Line Modules
Booksize power units
106 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
2.11.4 Dimension drawings
+
E
%
W
7

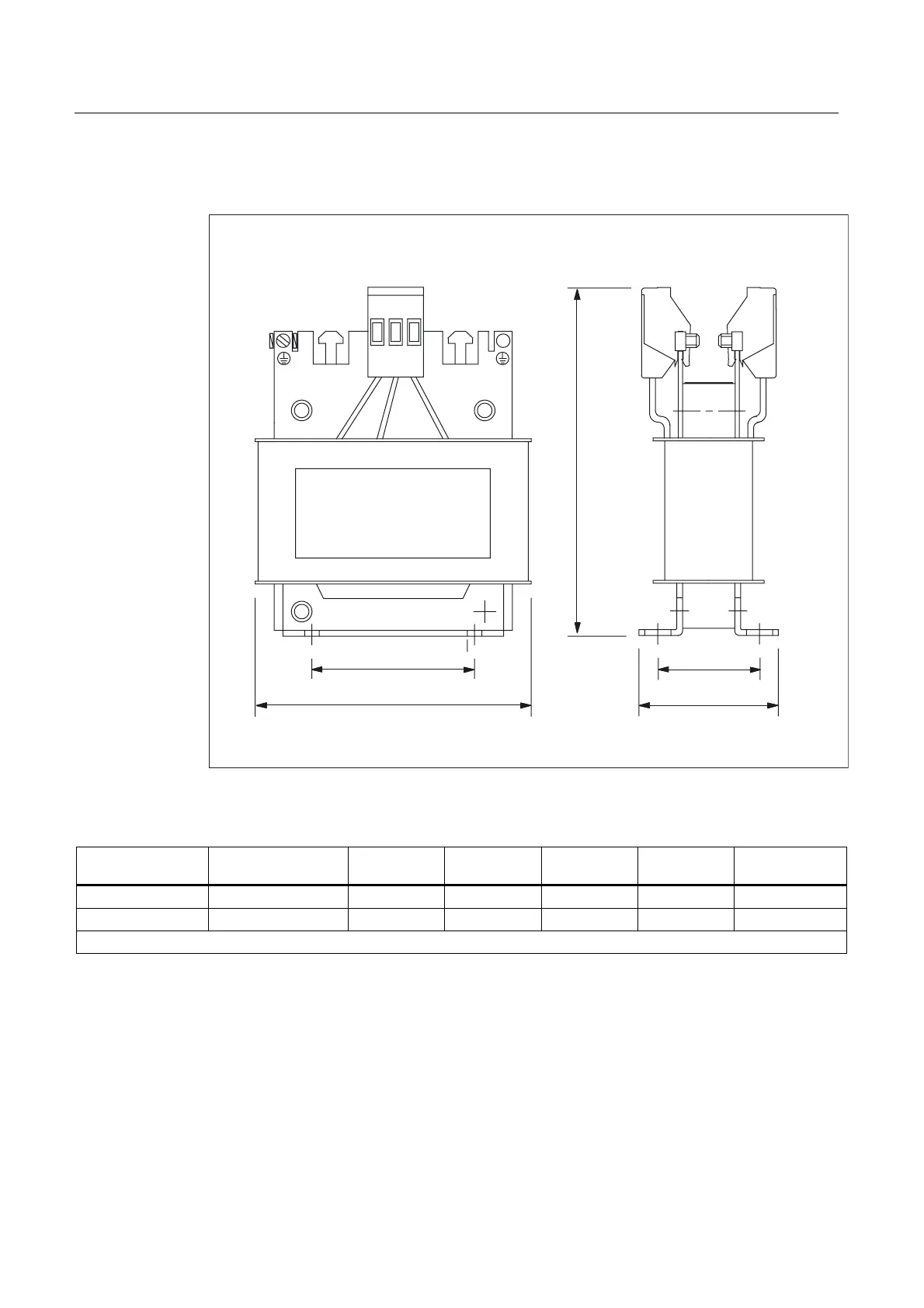

Figure 2-38 Dimension drawing: line reactor for Smart Line Modules (5 and 10 KW)
Table 2-37 Dimensions of the line filter for Smart Line Modules
Order number
6SL3000-
W [mm]
(inches)
b [mm]
1)
(inches)
H [mm]
(inches)
D [mm]
(inches)
t [mm]
1)
(inches)
5 kW 0CE-15-0AAx 150 (5.91) 113 (4.53) 175 (6.89) 66.5 (2.62) 49.5 (1.95)
10 kW 0CE-21-0AAx 177 (6.97) 136 (5.35) 196 (7.72) 86 (3.39) 67 (2.64)
1) The lengths b and t correspond to the hole spacing
