Siemens SINAMICS S120 - Assembly

Line Modules Booksize
3.7 Smart Line Modules Booksize Compact
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
287
3.7.5 Assembly
Assembly with cold-plate cooling
7KHUPDOO\FRQGXFWLYHIRLO
$VVHPEO\RISRZHUVHFWLRQZLWKFROGSODWH
7REHJLQZLWKWLJKWHQWKHQXWVE\KDQG
DSSUR[1PLQWKHVHTXHQFHVKRZQ
VWHSVWRDQGWKHQVHFXUHWKHPZLWK1P
0VWXGV
&ROGSODWHDLURUOLTXLG
3ODLQZDVKHU
6SULQJZDVKHU
1XW
0





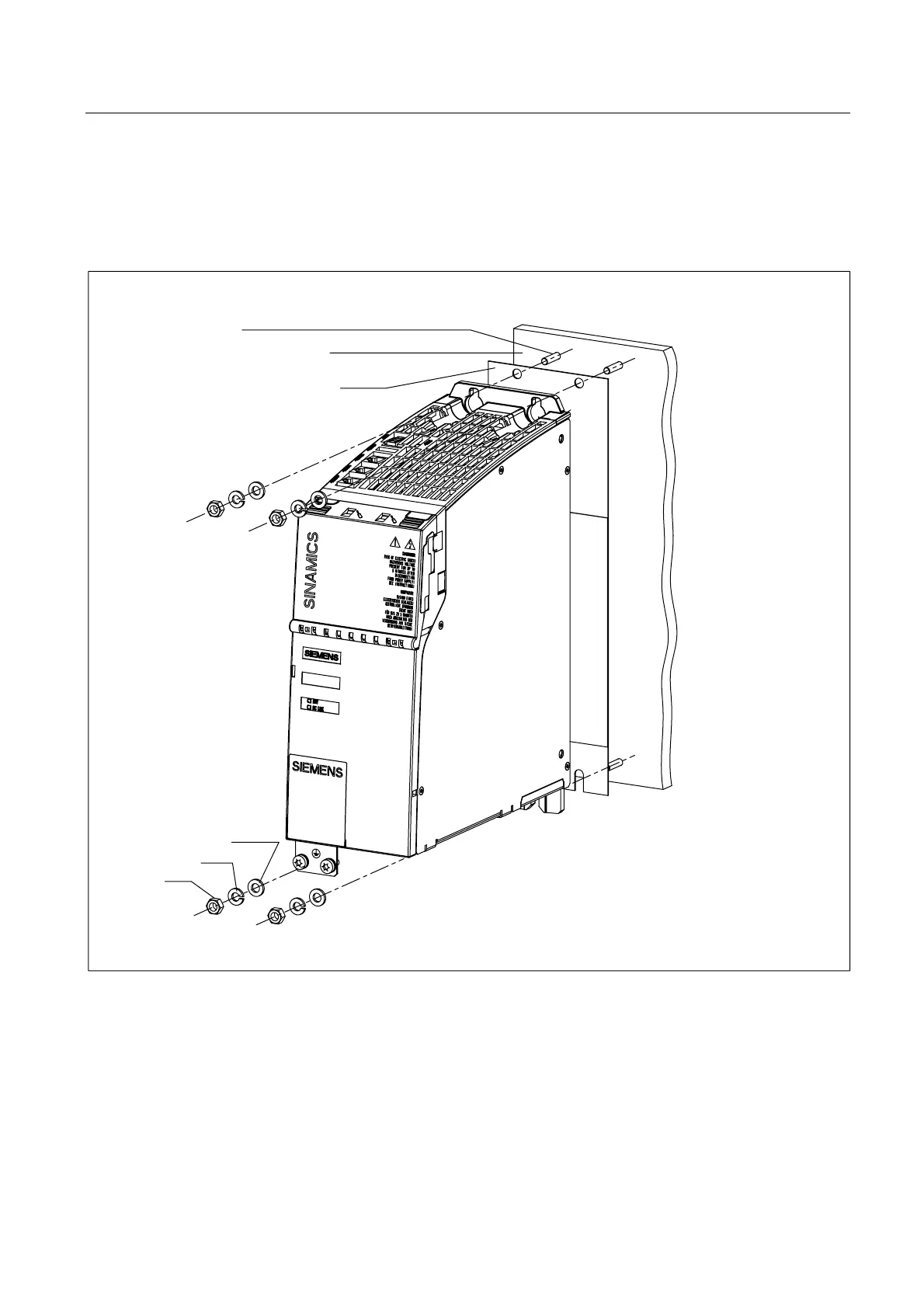

Figure 3-80 Mounting: Smart Line Module Booksize Compact 16 kW with cold-plate cooling
To improve heat transfer, a heat-conducting medium must be used. Special spherical-
indented heat-conducting film must be used for this purpose. Every cold plate power unit is
supplied with heat-conducting film cut to the right size. The installation position of the
thermally conductive foil must be taken into account.
