8.5 DRIVE-CLiQ cabinet gland
Booksize power units
484 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
8.5.3 Interface description
8.5.3.1 Overview







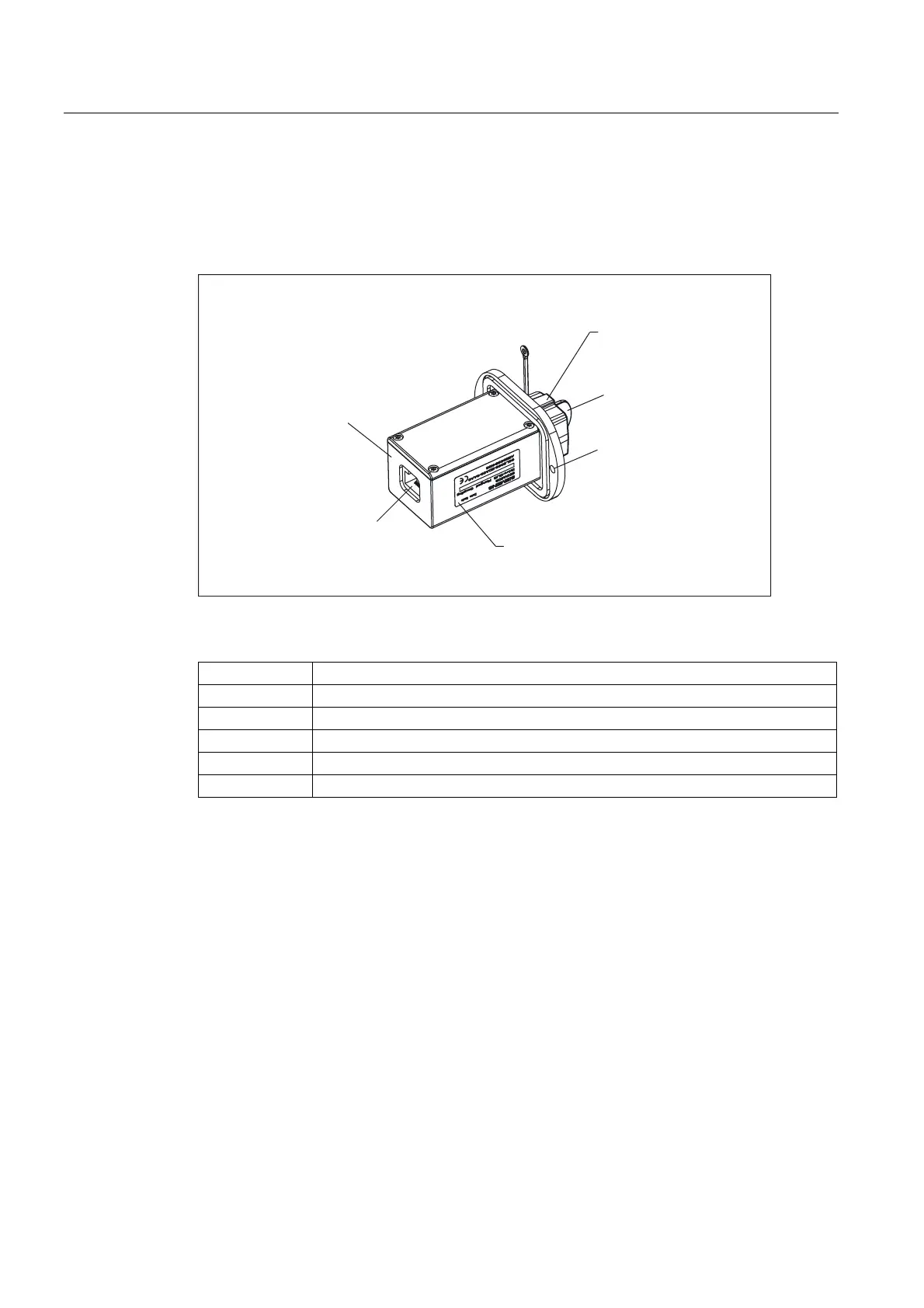

Figure 8-18 DRIVE-CLiQ cabinet gland
1 DRIVE-CLiQ cabinet gland
2 Covering cap, Yamaichi, order no.: Y-ConAS-24-S
3 IP67 acc. to EN 60529 interface
4 Mounting holes
5 Rating plate
6 IP20 or IPXXB acc. to EN 60529 interface
