Siemens SINAMICS S120 - Dimension Drawing

Line Connection Booksize
2.4 Basic Line Filter for Active Line Modules with line reactor
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
45
2.4.4 Dimension drawing
$QVFKOXVVNOHPPHPP

1HQQDQ]XJVPRPHQWGHU
6FKUDXEH1P
7HUPLQDOVPP

7LJKWHQLQJWRUTXHRI
VFUHZ1P
$Q]XJVPRPHQWs1P
7LJKWHQLQJWRUTXHs1P
1HW]
/DVW



0[


ss

[r
3(0[

3(0[

%

E
K
+
D
ss

ss
 

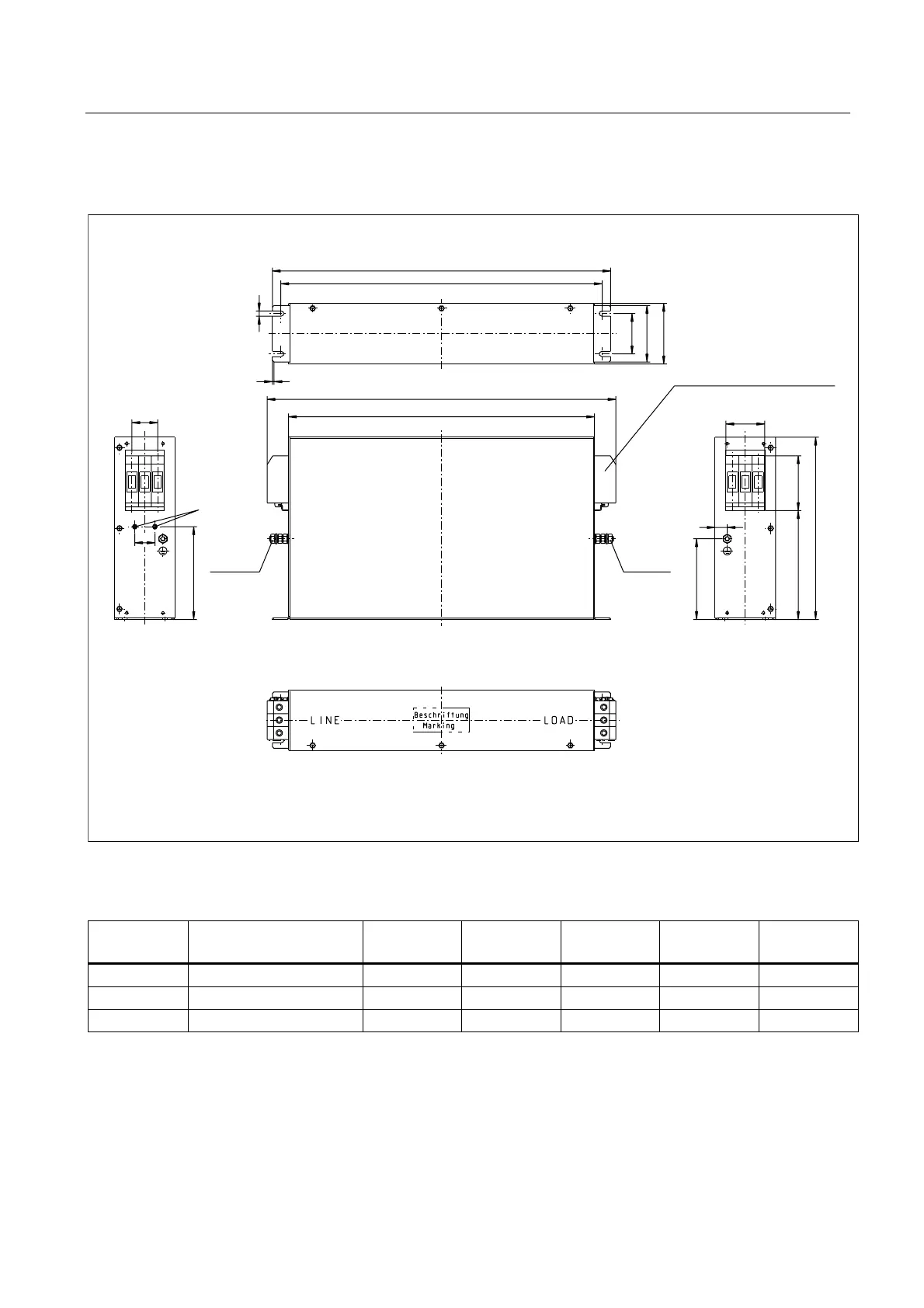

Figure 2-5 Dimension drawing of Basic Line Filter for Active Line Modules 16 kW to 55 kW, all data in mm and (inches)
Table 2-3 Dimensions: Basic Line Filter for Active Line Modules
Basic Line
Filter
Order number W [mm]
(inches)
w [mm]
(inches)
a [mm]
(inches)
H [mm]
(inches)
h [mm]
(inches)
16 kW 6SL3000-0BE21-6DAx 429 (16.88) 50 (1.96) 15 (0.59) 156 (6.14) 31 (1.22)
36 kW 6SL3000-0BE23-6DAx 433 (17.07) 75 (2.95) 15 (0.59) 135 (5.31) 68 (2.67)
55 kW 6SL3000-0BE25-5DAx 466 (18.34) 100 (3.93) 15 (0.59) 148 (5.82) 54 (2.12)
