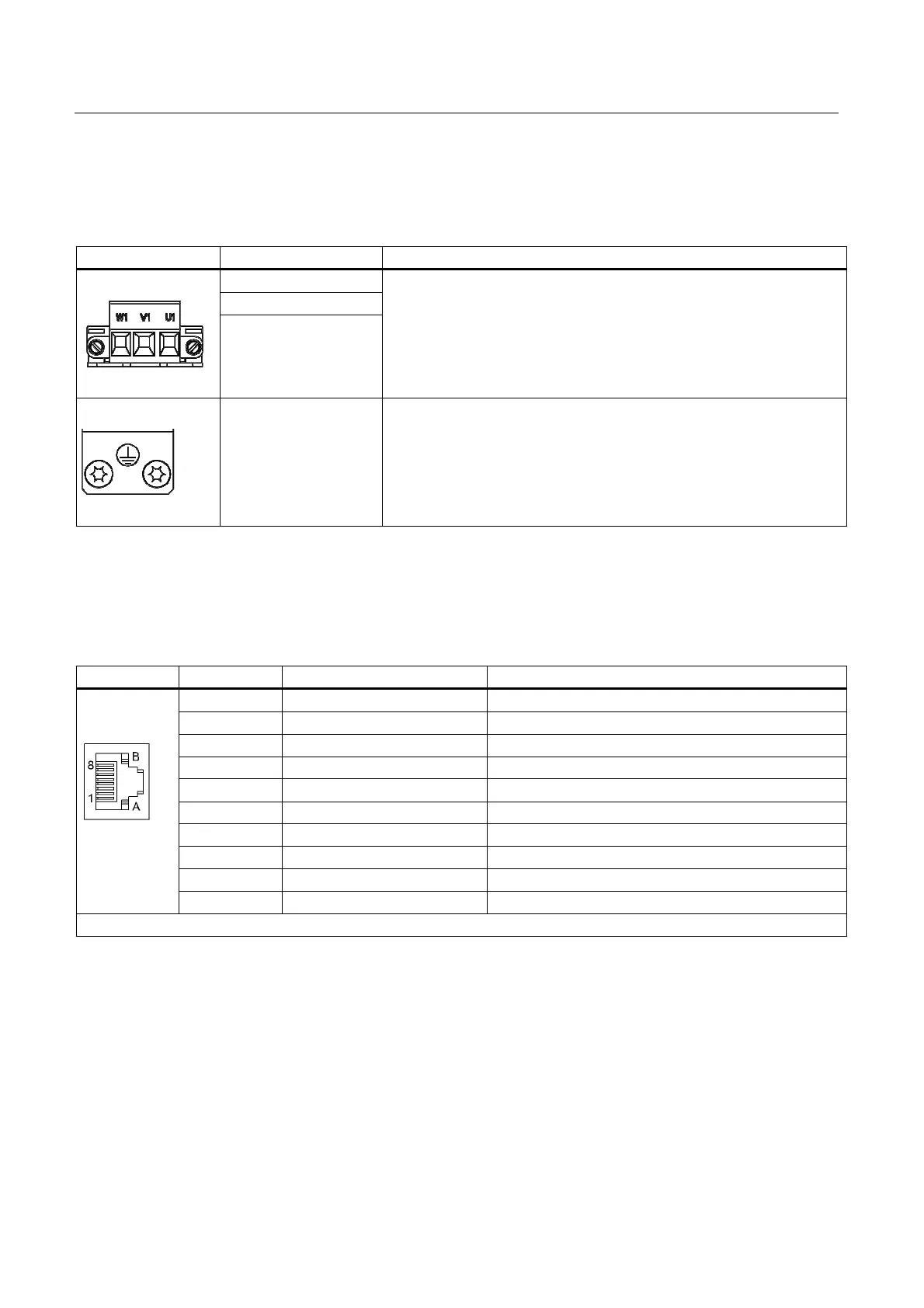

3.7.3.3 X1 line connection
Table 3-53 Terminal block X1 Smart Line Module 16 kW
Terminal Technical specifications
U1
V1
W1
Supply voltage:
380 V - 480 V 3 AC, 50/60 Hz
Max. connectable cross-section: 16 mm
2
Type: Screw terminal 7 (see Connection System)
Tightening torque: 1.5 - 1.8 Nm
PE connection Threaded hole M5/3 Nm
1)
1)
for ring cable lugs to DIN 46234
3.7.3.4 X200-X202 DRIVE-CLiQ interfaces
Table 3-54 DRIVE-CLiQ interface X200-X202
PIN Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) 24 V power supply
B M (0 V) Electronics ground
Blanking plate for DRIVE-CLiQ interface: Yamaichi, order no.: Y-ConAS-13
