Siemens SINAMICS S120 - X2 Braking Resistor Connection

Line Modules Booksize
3.4 Basic Line Modules with internal air cooling
Booksize power units
212 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
3.4.3.6 X2 braking resistor connection

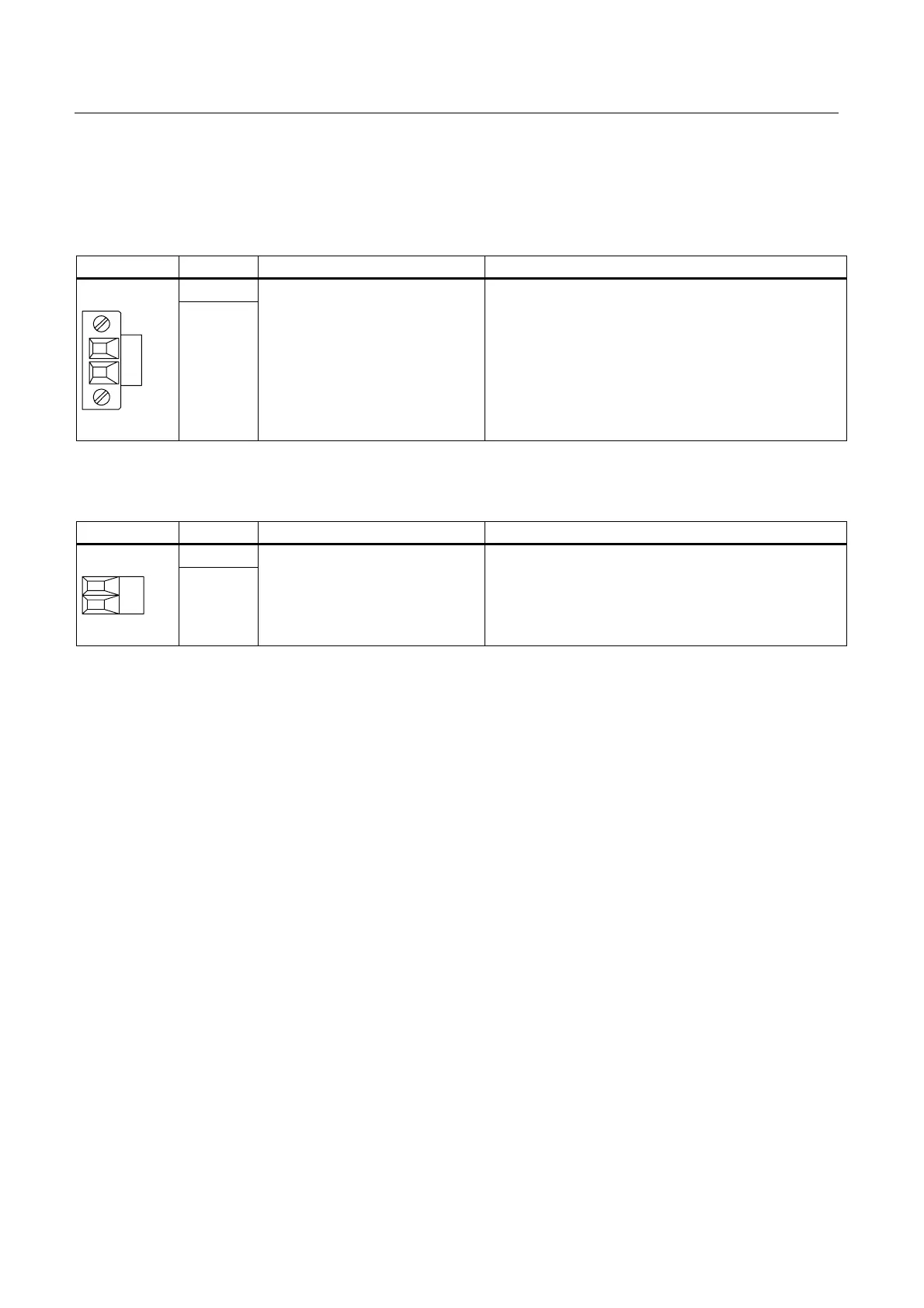

Table 3-28 Terminal block X2 on Basic Line Module (20 kW)
Terminal Designation Technical specifications
1
5 5
2
Braking resistor connection R Max. connectable cross-section: 4 mm
2
Type: Screw terminal 5 (see Connection Methods)
Tightening torque: 0.5 - 0.6 Nm
Table 3-29 Terminal block X2 on Basic Line Module (40 kW)
Terminal Designation Technical specifications
1


2
Braking resistor connection R Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (see Connection Methods)
Tightening torque: min 1.5 - 1.8 Nm
