Line Modules Booksize
3.2 Active Line Modules with internal air cooling
Booksize power units
164 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
3.2.5 Installation
Installing the fan on Active Line Modules (80 kW and 120 kW)

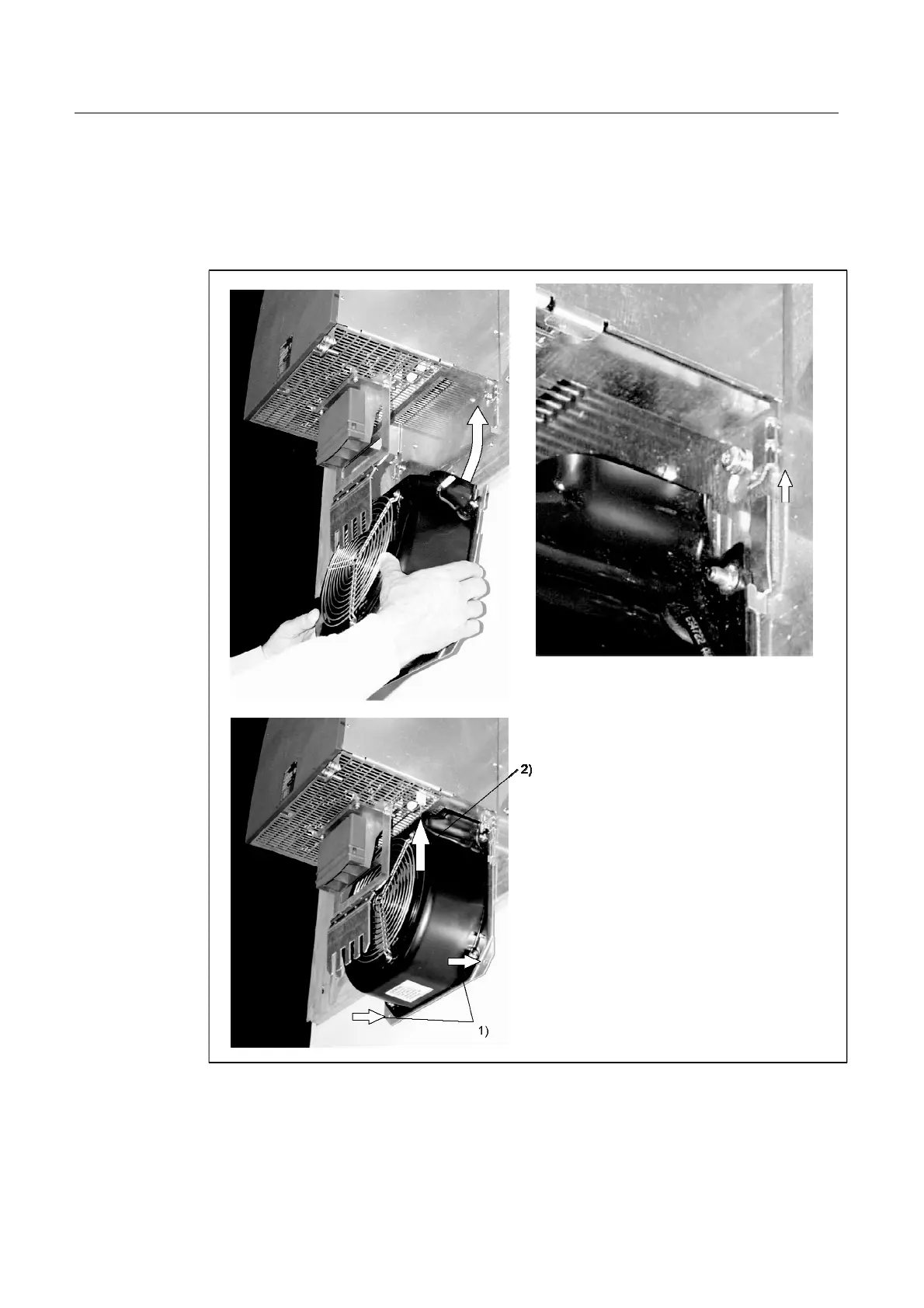

Figure 3-7 Installing the fan for 300 mm modules
1) Secure with M6/6 Nm screws
2) Connect the power supply for the fan
