Siemens SINAMICS S120 - Installation

Line Modules Booksize
3.3 Active Line Modules with external air cooling
Booksize power units
186 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
3.3.5 Installation
3RZHUXQLWZLWK
H[WHUQDOFRROLQJ
DQGKHDWVLQNVHDO
)DQDVVHPEO\
6:
1P
0WKUHDGHGVWXGV

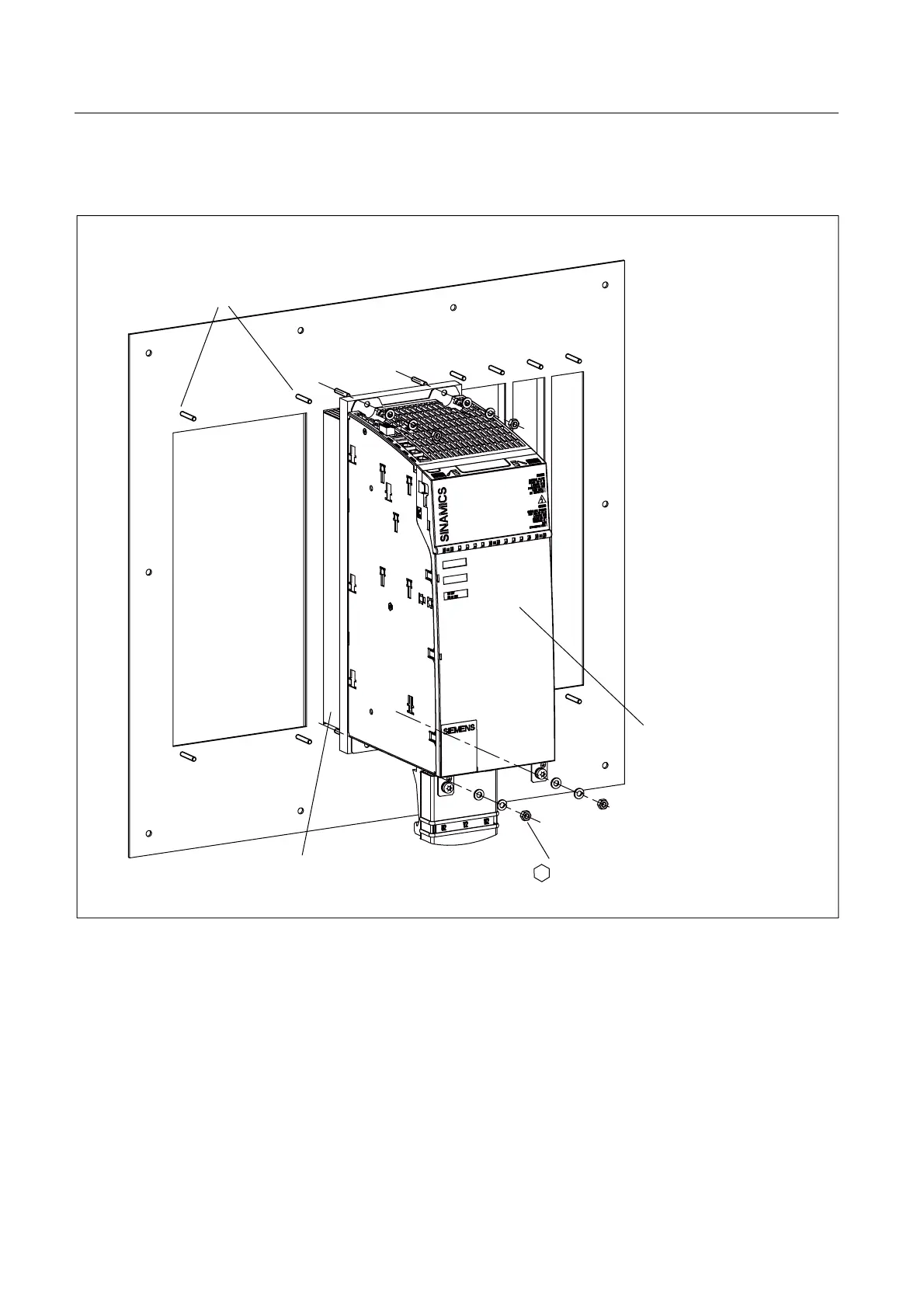

Figure 3-20 Example: Installing the power unit with external air cooling
Help with the mechanical cabinet design is available from:
Siemens AG
A&D SE WKC
TCC CabinetCooling
P.O. Box 1124
09070 Chemnitz, Germany
mailto:cc.cabinetcooling.aud@siemens.com
