Siemens SINAMICS S120 - Electrical Connection

Accessories
8.1 Shield connecting plates
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
457
8.1.5 Electrical connection

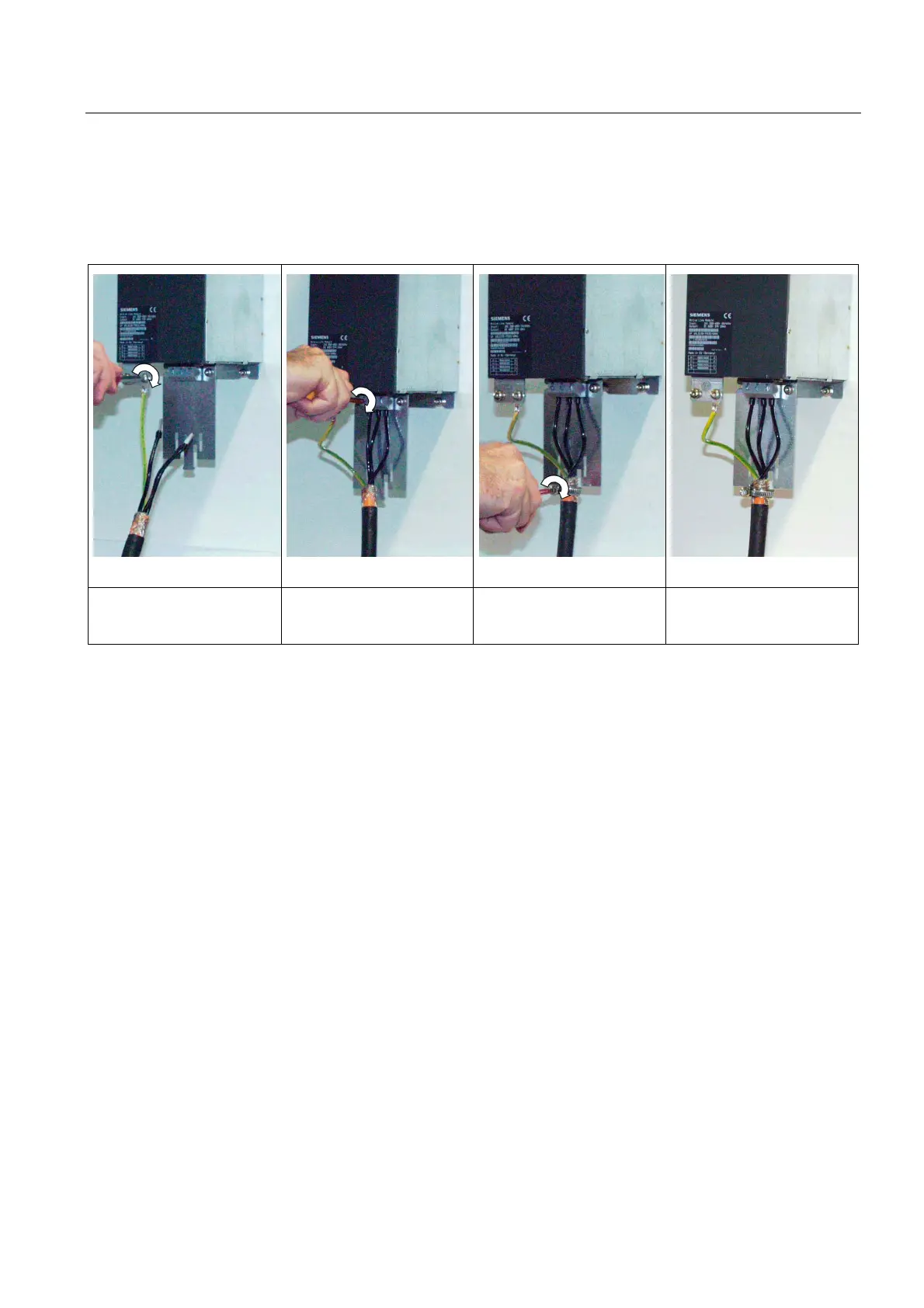

Table 8-4 Electrical connection at the shield connecting plate for 100 mm component using as an example, internal air
cooling
Attach the protective
conductor (PE) using a
screwdriver T25/3 Nm
Secure the power cable with
flat-bladed screwdriver
4/1.8 Nm
Secure the shield clamp to
the shield connecting plate
using a suitable tool
The power cable is
connected
