Accessories
8.1 Shield connecting plates
Booksize power units
456 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6

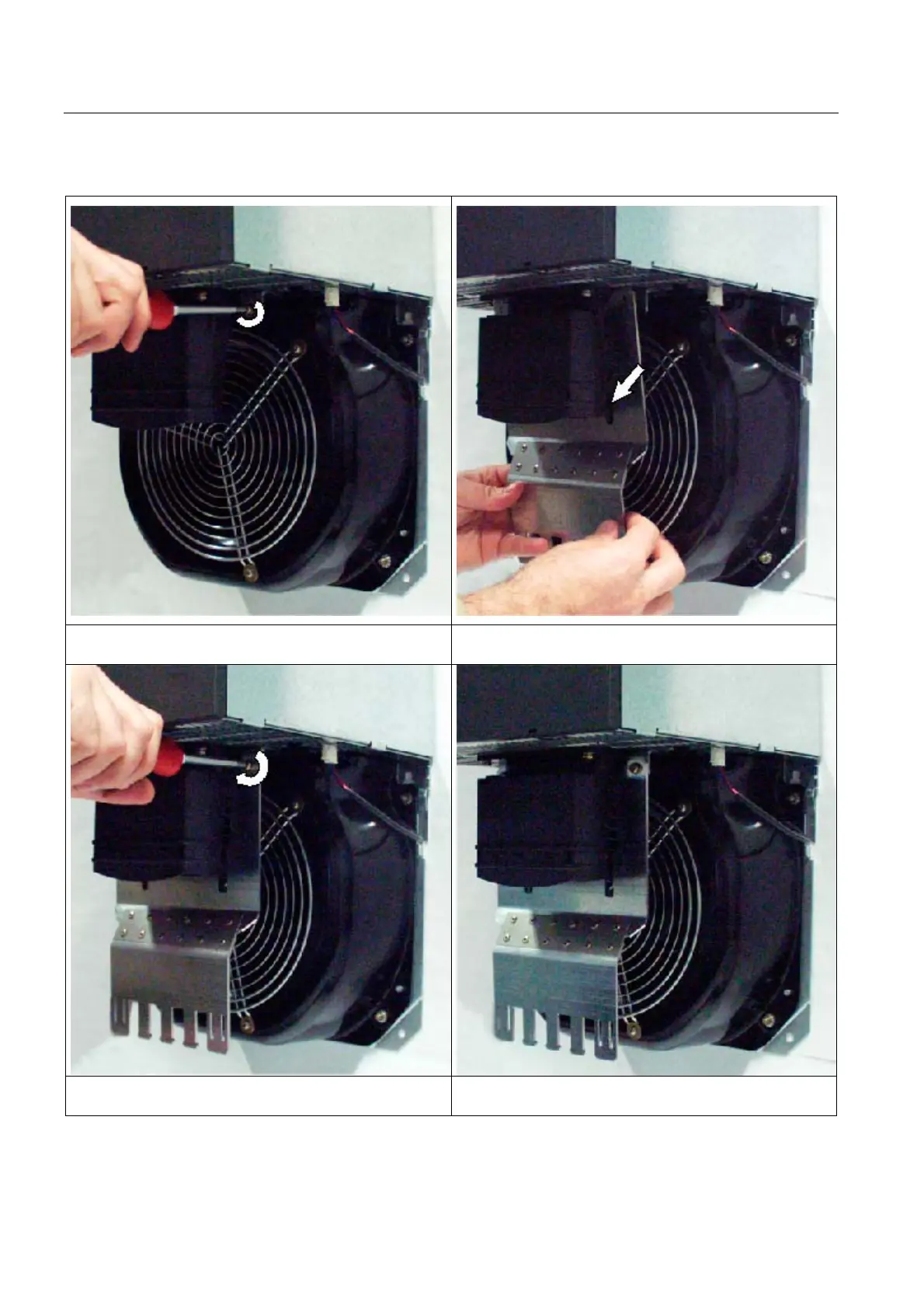

Table 8-3 Mounting the shield connecting plate to a 300 mm component using as an example, internal air cooling
Remove the screw with screwdriver T25 Hook the shield connecting plate into the line/motor
connection
Secure the shield connecting plate with screwdriver T25/3
Nm
Mounted shield connecting plate
