Line Modules Booksize
3.4 Basic Line Modules with internal air cooling
Booksize power units
210 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6

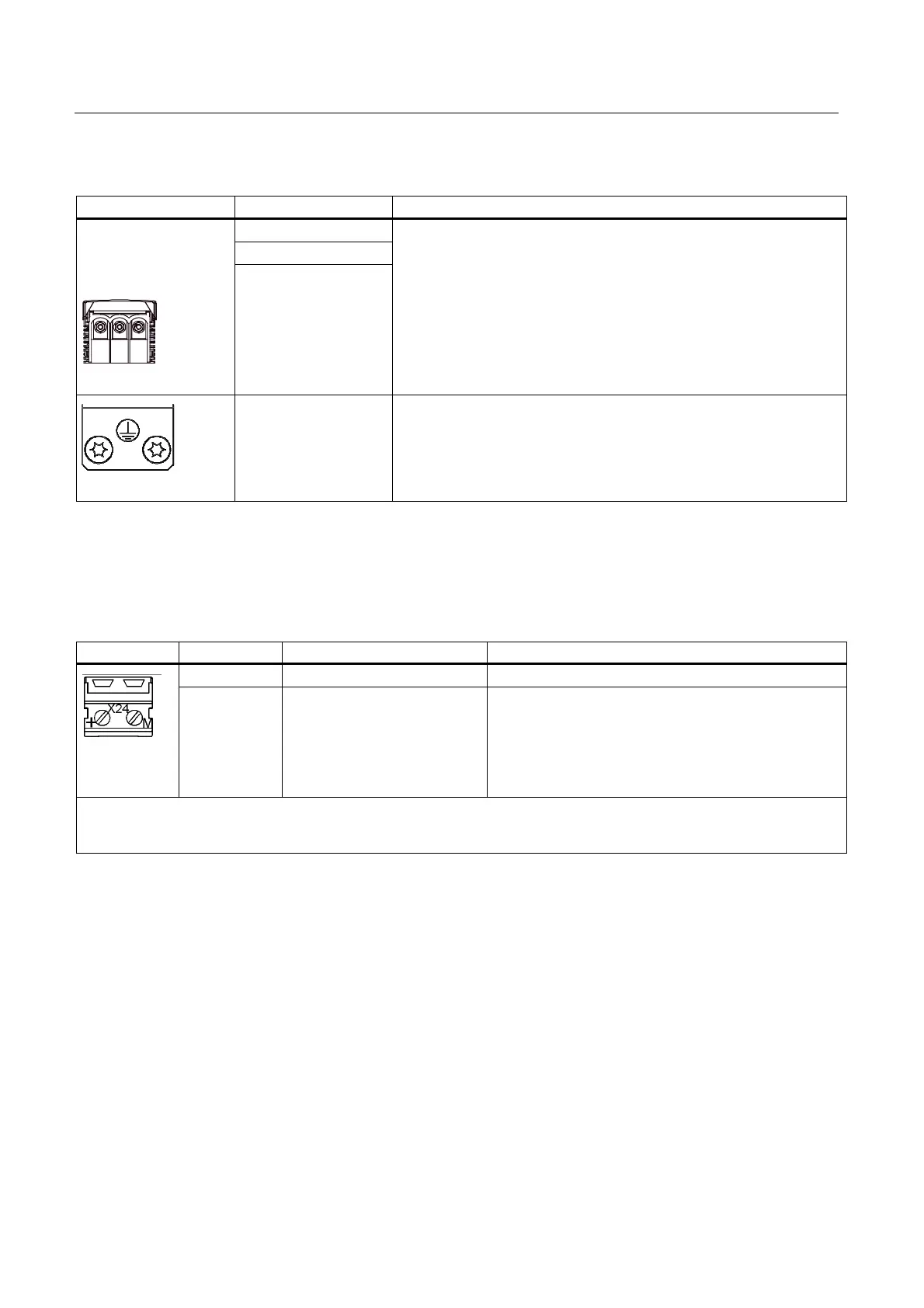

Table 3-25 Terminal block X1 Basic Line Module 100 kW
Terminal Technical specifications
U1
V1
8 9
:
W1
Connection voltage:
380 V - 480 V 3 AC, 50/60 Hz
max. connectable cross-section: 120 mm
2
Type: Threaded bolt M8
1)
(see Connection Methods)
Tightening torque: 13 Nm
PE connection Threaded hole M6/6 Nm
1)
1)
for ring cable lugs to DIN 46234
3.4.3.4 X24 24 V terminal adapter
Table 3-26 Terminal block X24
Terminal Designation Technical specifications
+ 24 V power supply 24 V DC supply voltage
M Ground Electronic ground
The 24 V terminal adapter is supplied as standard
Max. connectable cross-section: 6 mm
2
Type: Screw terminal 5 (see Connection Methods)
