Siemens SINAMICS S120 - X200-X203 DRIVE-Cliq Interface

Motor Modules Booksize
4.2 Motor Modules with internal air cooling
Booksize power units
328 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
4.2.3.5 X200-X203 DRIVE-CLiQ interface

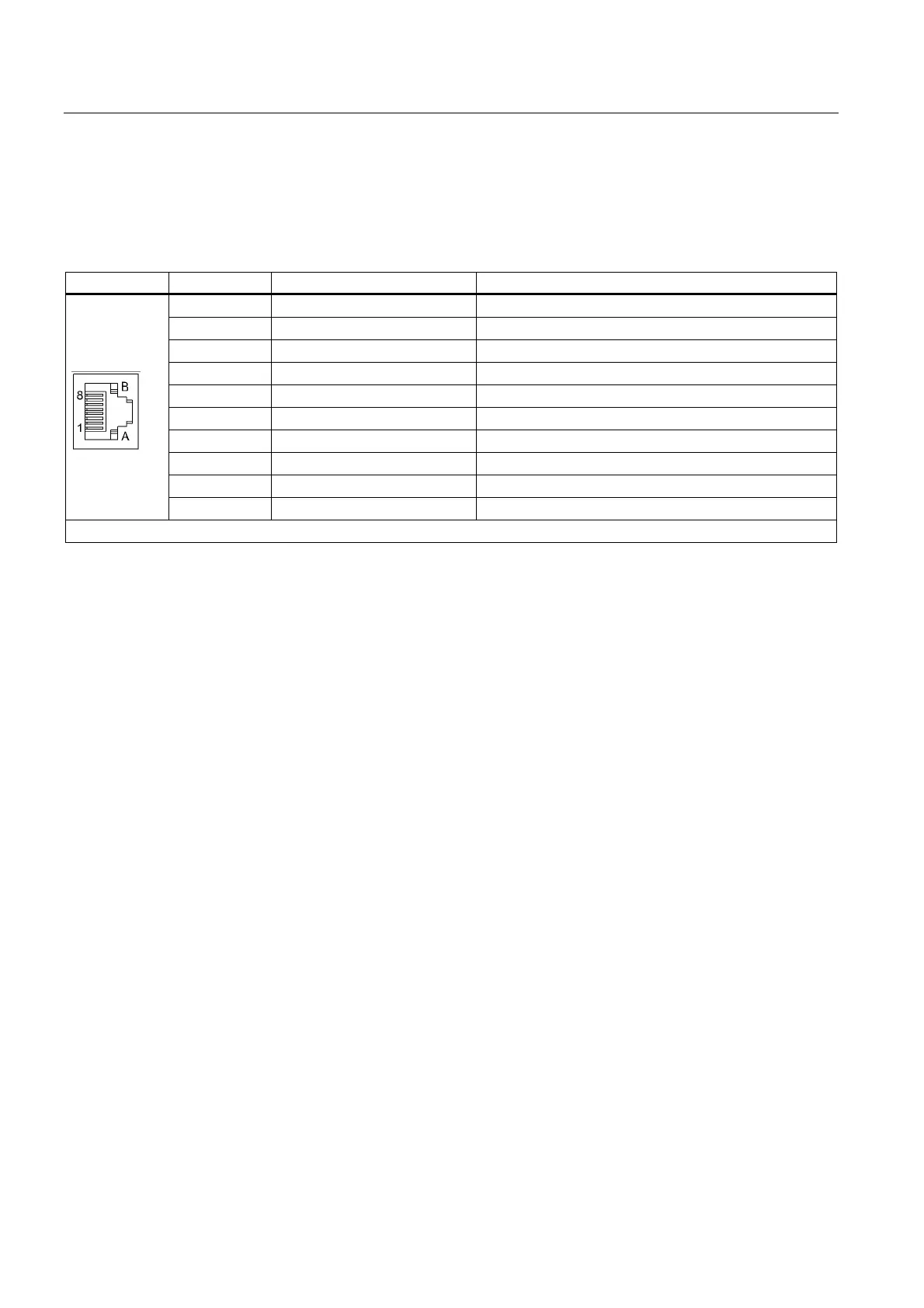

Table 4-4 DRIVE-CLiQ interface X200-X202: Single Motor Module
DRIVE-CLiQ interface X200-X203: Double Motor Module
Pin Name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B GND (0 V) Electronic ground
Blanking plate for DRIVE-CLiQ interface: Yamaichi, order no.: Y-ConAS-13
